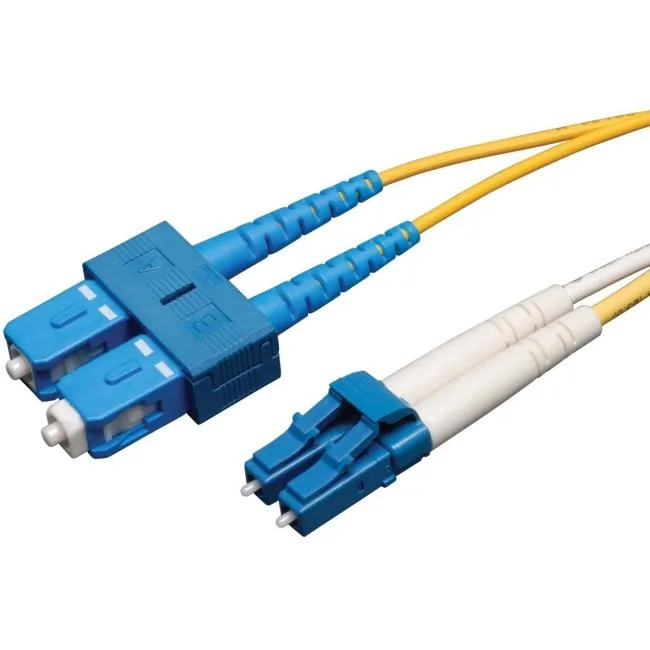

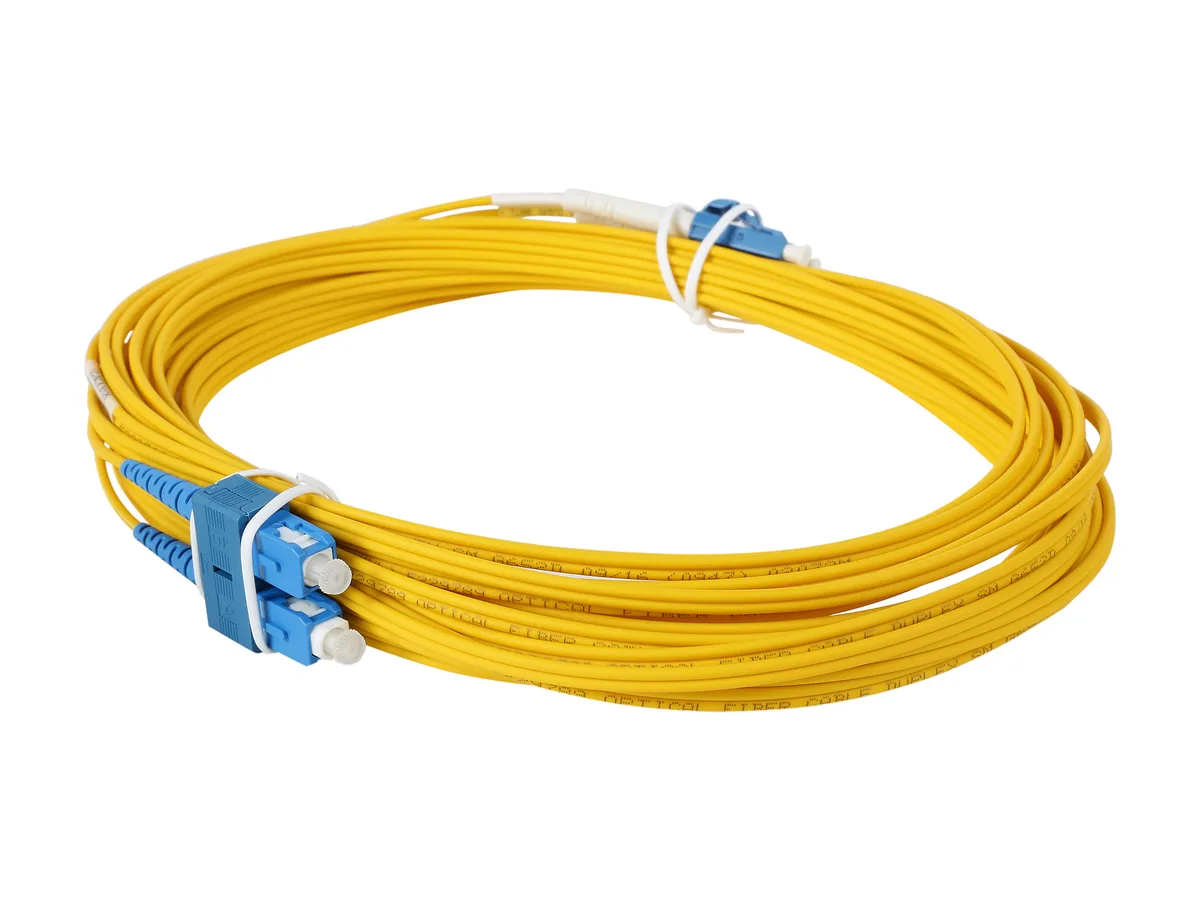

Yellow duplex singlemode fibre patch cable with two LC and two SC connectors, 10 metre length

Tripp Lite

Tripp Lite N366-10M duplex singlemode 8.3/125 fibre optic cable LC/SC 10M

SKU CH-45G6-3BHF6 MPN N366-10M

A 10-metre duplex singlemode patch cable with LC and SC connectors for long-distance fibre links

  • TypeOthers
  • ColorYellow
  • Length32.81 ft.
  • Connector Number4
  • FeaturesManufactured from 8.3/125 duplex (zipcord) fiber PVC jacket

Length 32.8 ft.

Struck-through versions exist but are not stocked here.

  • Low insertion loss with 0.2 dB typical per connector
  • Singlemode 8.3/125 µm core for long-distance transmission
  • 10 metre duplex zipcord with LC and SC connectors
  • OFNR riser-rated PVC jacket for in-wall routing
  • Lifetime limited warranty included

Duplex Singlemode 8.3/125 Patch Cable

This 10-meter duplex singlemode fibre optic patch cable uses an 8.3/125 micron core and cladding with a yellow PVC jacket. It terminates in two LC connectors on one end and two SC connectors on the other for connecting compatible transceivers or panels. Insertion loss is tested at 0.2 dB typical per connector and the results are provided with the cable.

Installers Linking LC and SC Equipment

The LC/SC connector combination suits installers joining equipment or patch panels that present different interface types on a singlemode link. The OFNR riser rating allows vertical runs between floors in commercial buildings. It is not for links that require multimode core diameters or connectors other than LC and SC.

8.3/125 Micron Singlemode Core

The 8.3/125 micron singlemode core determines the cable's compatibility with long-distance singlemode transceivers and its bandwidth advantage over multimode alternatives. This specification decides whether the patch cord matches the optical network design.

Highlights

  • Low insertion loss with 0.2 dB typical per connector
  • Singlemode 8.3/125 µm core for long-distance transmission
  • 10 metre duplex zipcord with LC and SC connectors
  • OFNR riser-rated PVC jacket for in-wall routing
  • Lifetime limited warranty included

Specifications

BrandTripp Lite
ModelN366-10M
TypeOthers
ColorYellow
Length32.81 ft.
Connector Number4
FeaturesManufactured from 8.3/125 duplex (zipcord) fiber
PVC jacket
Connectors: 2 x SC; 2 x LC
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Color-coded shrouds identify transmit and receive
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)
Shipping weight0.20 kg
Package size157 × 137 × 15 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What connectors must my equipment provide for this LC/SC duplex cable?

Your devices need one LC duplex port and one SC duplex port, matching the two LC and two SC connectors on the cable ends.

Can I join this 8.3/125 µm singlemode patch cord to existing 9/125 µm OS2 cabling in my rack?

Yes, 8.3/125 µm and 9/125 µm refer to the same singlemode fibre geometry, so the cable will mate with OS2 infrastructure without mode mismatch.

How do I verify the link is performing to the tested 0.2 dB typical insertion loss after installation?

Use a calibrated light source and power meter at the operating wavelength to measure end-to-end loss and compare it with the 0.2 dB typical figure recorded for each connector.
