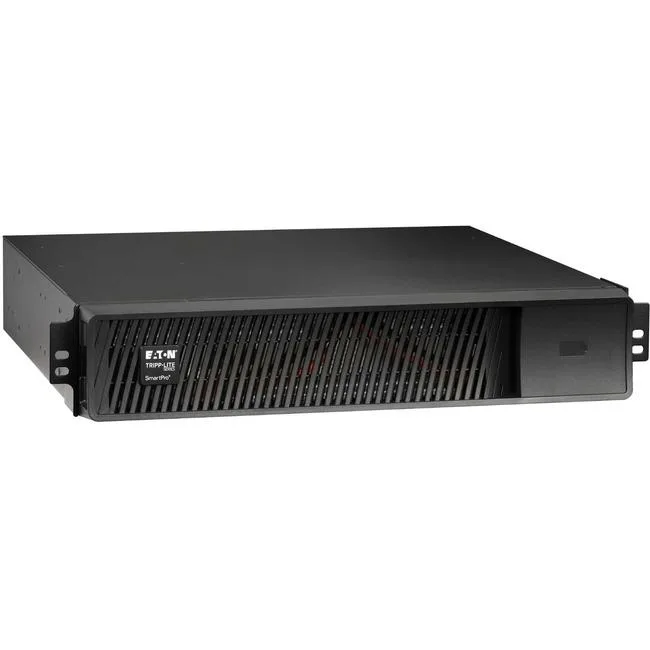

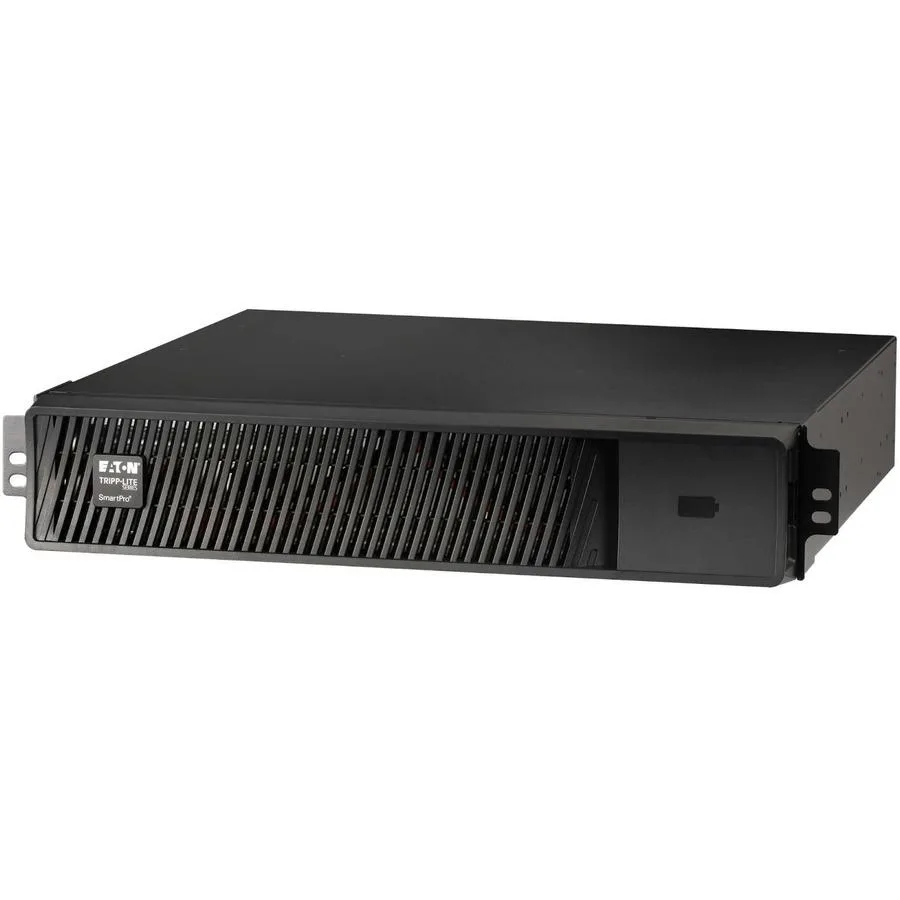

Rectangular 2U rack tower battery module black metal finish front handle and vents

Tripp Lite

Tripp Lite BP48VRM2U 48V EBM for 750/1000/1500VA SmartPro UPS

SKU CH-GEDX-HP2ZE MPN BP48VRM2U

Adds 48 V DC lead-acid runtime to compatible 750, 1000 and 1500 VA SmartPro UPS units, hot-swappable and daisy-chainable for up to four modules in 2U rack or tower form

  • Parts1 Year
  • Extended runtime for compatible SmartPro UPS systems
  • Daisy-chain up to four packs for longer backup
  • Mounts in 2U of 19-inch rack space
  • Tower stands included for upright installation
  • Hot-swappable valve-regulated lead-acid batteries

Extended Runtime Module

The BP48VRM2U is a 48 V DC lead-acid battery pack built to extend the runtime of compatible 750, 1000 and 1500VA SmartPro UPS systems. It is designed for users who need longer backup duration during power outages. Valve-regulated cells are user replaceable and hot swappable for continuous operation.

Daisy Chain Capability

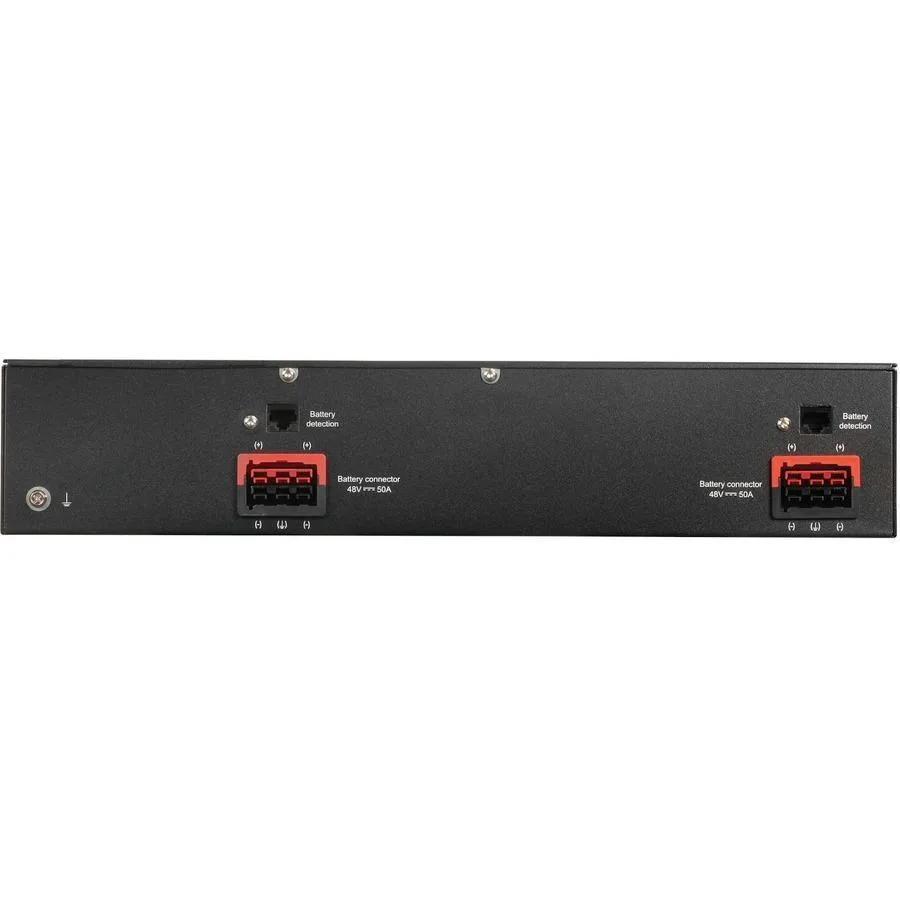

Up to four matching modules can be linked together to scale runtime further as needs grow. Heavy-gauge cabling with high-current DC connectors is included for safe and simple installation between units. No additional software or configuration is required to activate the extended battery function.

Rack and Tower Mounting

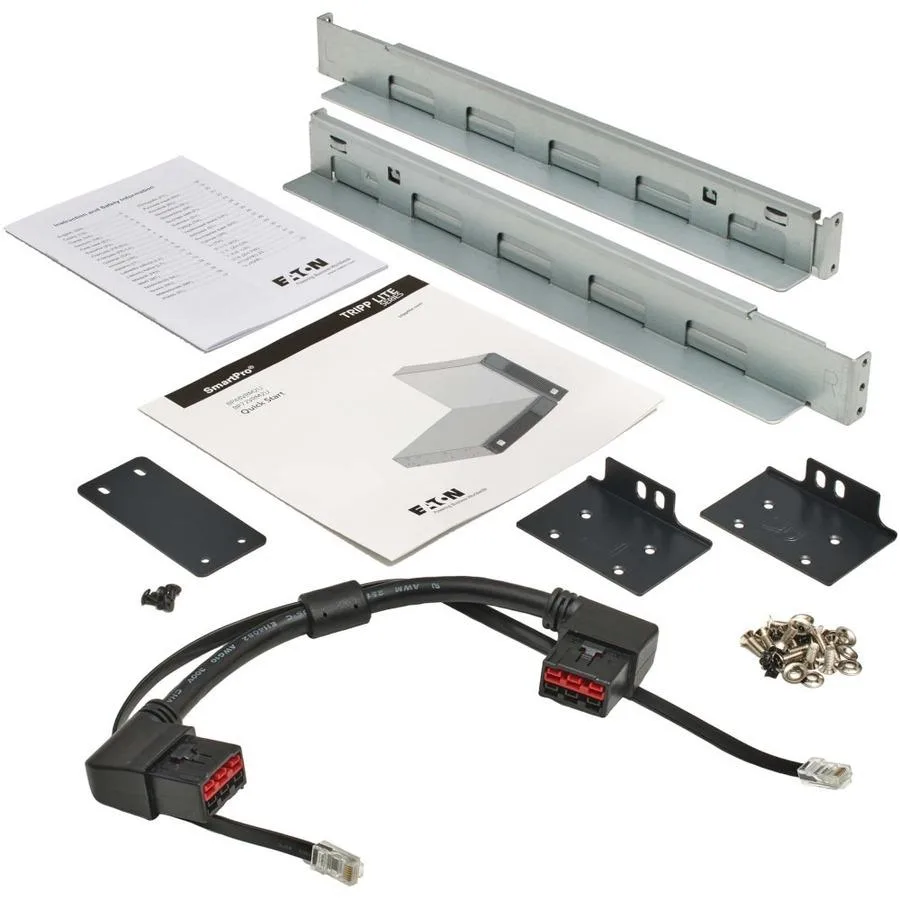

The 2U form factor fits standard 19 inch EIA racks using the supplied 4-post rail kit and brackets. Tower stands are also included for upright floor or shelf placement. This dual mounting flexibility suits server rooms, network closets or desk-side deployments without modification.

Highlights

  • Extended runtime for compatible SmartPro UPS systems
  • Daisy-chain up to four packs for longer backup
  • Mounts in 2U of 19-inch rack space
  • Tower stands included for upright installation
  • Hot-swappable valve-regulated lead-acid batteries

Specifications

Parts1 Year
Shipping weight32.84 kg
Package size587 × 495 × 239 mm

Questions about this item

How often will the lead-acid batteries in the 48V module need replacement?

The valve-regulated lead-acid batteries are user-replaceable and hot-swappable, so you can swap them without powering down the connected 750VA, 1000VA or 1500VA SmartPro UPS.

What limits how many extended battery modules I can daisy-chain together?

You can connect a maximum of four matching 48V packs to a compatible SmartPro UPS for extended runtime.

Does the 2U rackmount design add fan noise or heat when running continuously?

The passive battery module has no fans, so it adds no audible noise and minimal heat beyond normal battery warmth during all-day operation.
