Black transmitter and receiver boxes with HDMI, RJ45 and DB9 ports, IR cables, serial adapters and two power supplies

Tripp Lite

Tripp Lite BHDBT-K-SI-ER HDBaseT HDMI Extender Kit 500 ft Serial IR

SKU CH-964B-T7742

Extends 1080p HDMI up to 500 ft over Cat5e/6 with 7.1 audio, serial and IR control

  • TypeHDMI over Ethernet
  • Max Extend Distance500 feet
  • ColorBlack
  • Cable LengthUp to 500 ft.
  • SpecificationsAC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 3A Ap
  • Connector AHDMI (FEMALE) RJ45 (FEMALE)
  • Extends 1080p 60 Hz video up to 500 feet over Cat5e/6/6a
  • Delivers 7.1-channel surround sound with DTS-HD and Dolby TrueHD support
  • Controls RS-232 serial devices at up to 115 Kbps via DB9
  • Includes IR-IN and IR-OUT cables for remote source control
  • Plug-and-play operation with no software or drivers required

HDBaseT Extender Kit for 1080p Installations

This HDBaseT extender kit transmits 1080p video at 60 Hz up to 500 feet over a single Cat5e, Cat6 or Cat6a cable. It includes transmitter and receiver units plus IR and serial control cables. Integrators use it to locate displays far from source equipment in classrooms, conference rooms or digital-signage runs. The kit ships new with mounting hardware and two external power supplies.

Distance and Resolution Limits

The link carries a 1080p 60 Hz signal to the full 500-foot (150 m) rating when solid-conductor Category cable is used. 7.1-channel surround sound, DTS-HD and Dolby TrueHD pass through without compression. RS-232 control operates at up to 115 Kbps for touch-panel or automation-system commands. Signals beyond the rated distance or over stranded patch cable will degrade or drop out.

Connectors, Mounting and Daily Use

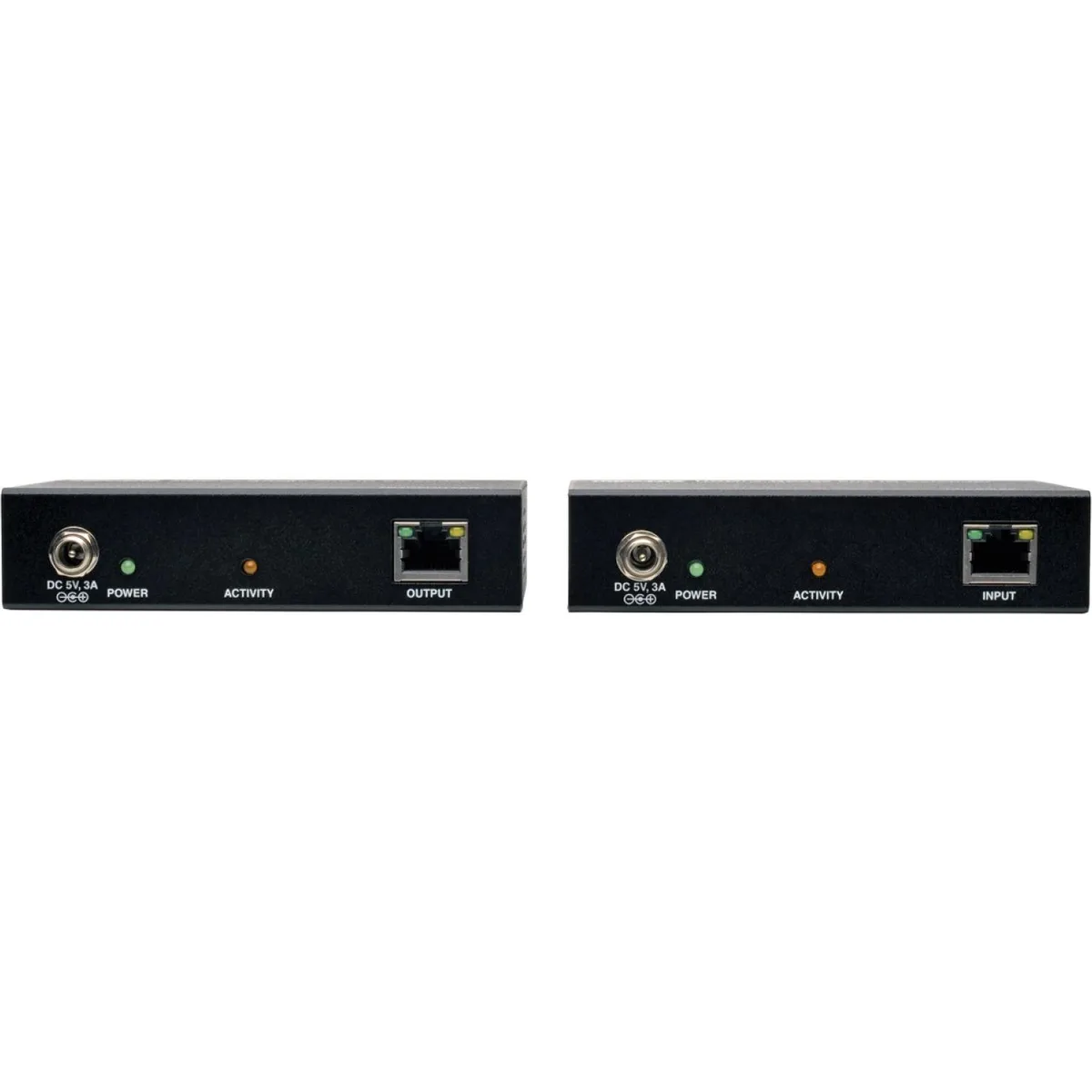

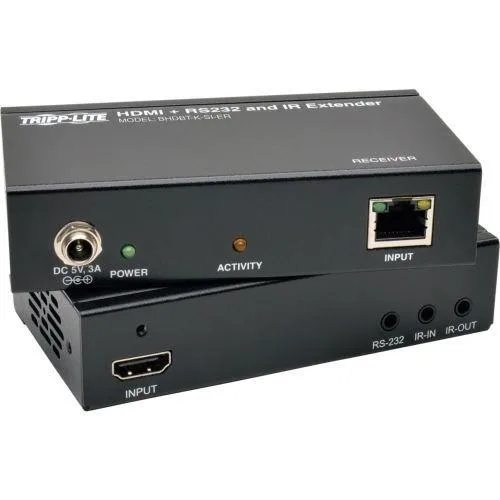

Each unit provides a female HDMI port, a female RJ45 jack and a DB9 male serial port; the receiver adds 3.5 mm IR in and out jacks. Two adapter cables convert the DB9 to 3.5 mm male connectors for common control cables. Wall-mount brackets let installers secure both boxes behind displays or in equipment racks. External 5 V 3 A power supplies with NEMA 1-15P plugs power each end from standard 100-240 V mains.

Highlights

  • Extends 1080p 60 Hz video up to 500 feet over Cat5e/6/6a
  • Delivers 7.1-channel surround sound with DTS-HD and Dolby TrueHD support
  • Controls RS-232 serial devices at up to 115 Kbps via DB9
  • Includes IR-IN and IR-OUT cables for remote source control
  • Plug-and-play operation with no software or drivers required

Specifications

BrandTripp Lite
ModelBHDBT-K-SI-ER
TypeHDMI over Ethernet
Max Extend Distance500 feet
ColorBlack
Cable LengthUp to 500 ft.
SpecificationsAC Adapter Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 3A
Approvals: CE, FCC, RoHS, REACH
Connector AHDMI (FEMALE)
RJ45 (FEMALE)
Connector BHDMI (FEMALE)
RJ45 (FEMALE)
DB9 (MALE)
FeaturesExtends a 1080p @ 60 Hz signal up to 500 feet (150 m)
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Controls RS-232 serial devices at baud rates up to 115 Kbps
Allows you to control a Blu-ray player from a remote monitor
Plug and play - no software or drivers to install
Weight0.55 lb. (Transmitter), 0.5 lb. (Receiver)

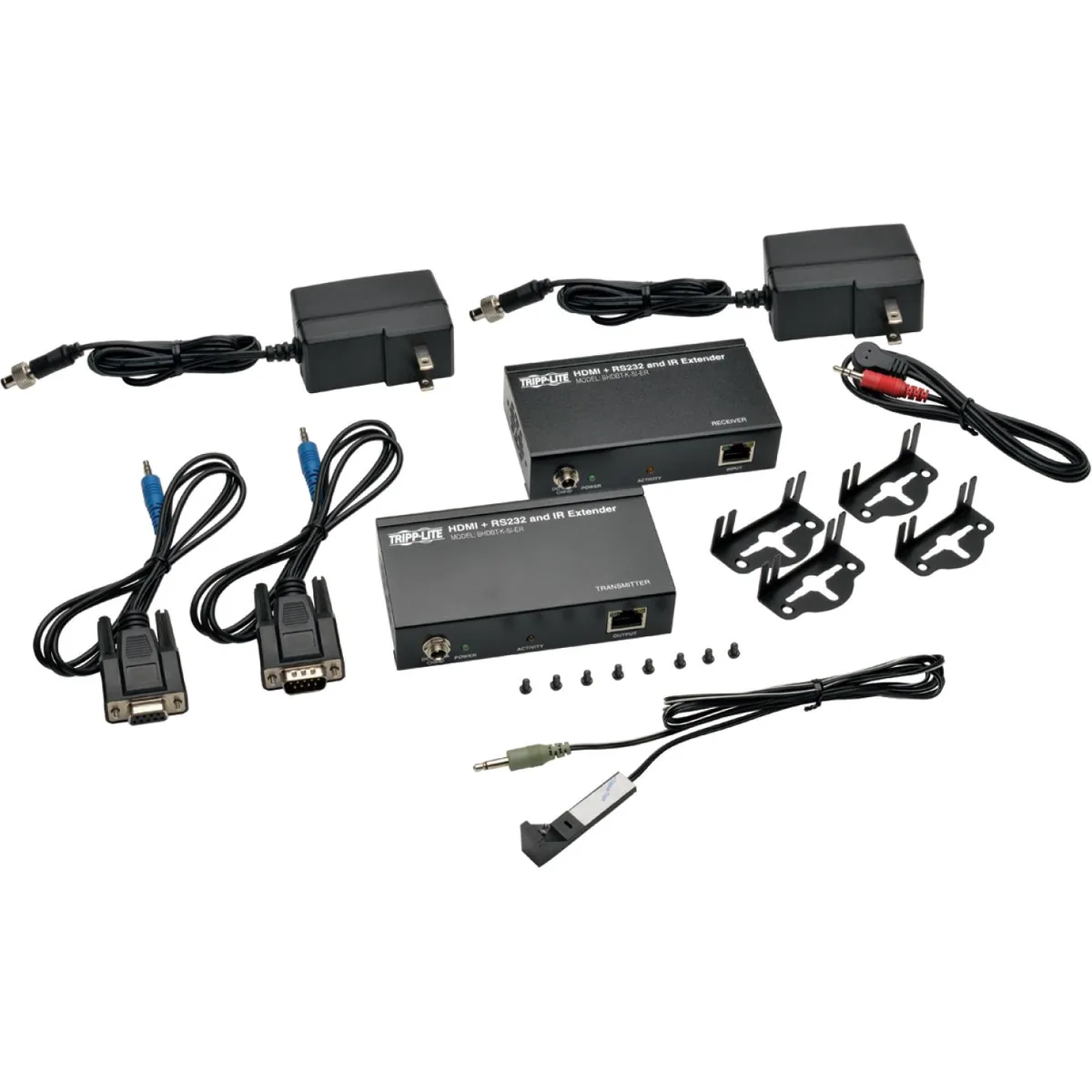

Package ContentsTransmitter unit
Receiver unit
IR-IN cable
IR-OUT cable
3.5 mm Male to DB9 Female adapter cable
3.5 mm Male to DB9 Male adapter cable
2 x External Power Supplies with NEMA 1-15P Plug(Input: 100 - 240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
Mounting hardware
Owner’s manual
Shipping weight1.07 kg
Package size290 × 160 × 56 mm

Questions about this item

Should I choose the 500 ft kit or a shorter version for my 150 m run?

This model extends 1080p at 60 Hz up to 500 feet, which equals 150 metres, so it matches your distance exactly.

What does the 1080p 60 Hz rating mean when the transmitter and receiver are connected in my rack?

It means the kit passes a full HD 1080p signal at 60 frames per second over the Cat5e/6/6a link without compression, and also carries 7.1-channel audio including DTS-HD and Dolby TrueHD.

How does the HDBaseT Lite 731 interface limit the serial and IR control paths in practice?

The HDBaseT Lite 731 link transports RS-232 control at up to 115 Kbps and bidirectional IR, so you can operate a Blu-ray player or other serial device from the remote display location.
