Tripp Lite B130-101-U VGA over Cat5 Extender Kit 350 ft 1920x1440 60Hz
Extends VGA signals up to 350 ft at 1920x1440 60Hz or 500 ft at 1024x768 using Cat5e/6 cable with USB power and built-in EQ/GAIN controls
- Extender & Repeater TypeNon Wall Plate Extender
- Distance1920 x 1440 (60Hz) signal up to 350 ft. 1024 x 768 (60Hz) si
- USB PortConnector B: USB A (Male)
- VGASide A - Connector 1: 2 x HD15 (Male)
- Other ConnectorConnector A: 2 x RJ45 (Female)
- System RequirementsComputer with VGA graphics card Display monitor or projector
- Extends 1920 x 1440 at 60 Hz up to 350 ft over Cat5e/6 cable
- Reaches 500 ft for 1024 x 768 at 60 Hz with solid 24 AWG cable
- USB-powered design eliminates need for external power adapters
- Built-in VGA dongles remove requirement for separate VGA cables
- Integrated EQ and GAIN controls let you fine-tune signal quality
VGA over Cat5 Extender Kit

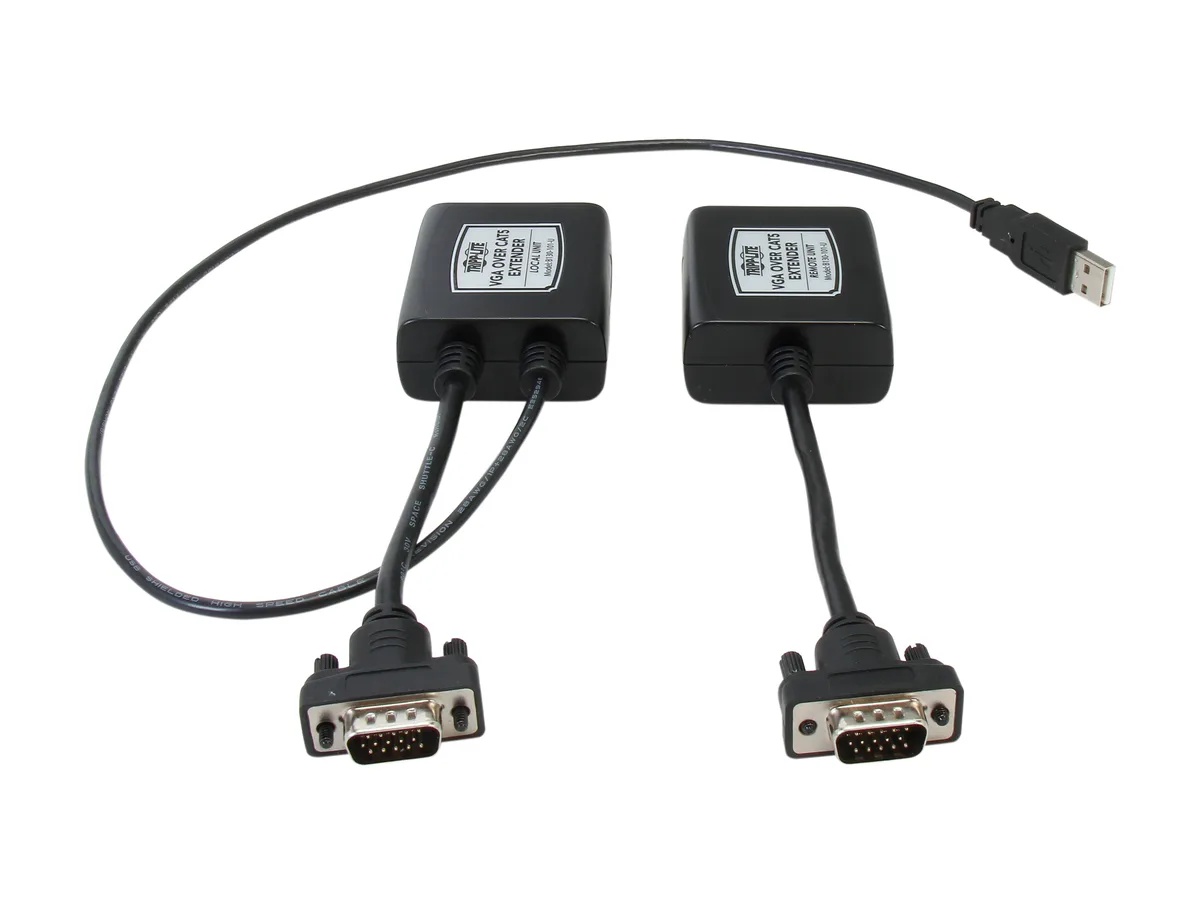

The Tripp Lite B130-101-U extends VGA or SVGA video signals up to 350 feet at 1920 x 1440 resolution and 60Hz, or 500 feet at 1024 x 768 resolution. It connects a computer with a VGA graphics card to a remote monitor or projector using solid wire Cat5e or Cat6 cable. The kit includes a transmitter and receiver unit with built-in VGA dongles, eliminating the need for separate video cables.
USB-Powered Operation
Both the transmitter and receiver draw power from USB-A ports, removing the requirement for external power adapters. This design reduces cable clutter and simplifies installation in environments where mains outlets are not readily available near the display or source device. The units operate without active cooling, so they add no audible noise to the installation space.
Sustained Signal Integrity
Built-in equalisation and gain controls allow manual adjustment to maintain image quality over the full 350-foot or 500-foot cable run. These adjustments compensate for signal attenuation that increases with cable length, ensuring a stable picture during continuous operation. The extender supports 24AWG solid wire Cat5e or Cat6 cabling for reliable long-distance transmission.
Highlights
- Extends 1920 x 1440 at 60 Hz up to 350 ft over Cat5e/6 cable
- Reaches 500 ft for 1024 x 768 at 60 Hz with solid 24 AWG cable
- USB-powered design eliminates need for external power adapters
- Built-in VGA dongles remove requirement for separate VGA cables
- Integrated EQ and GAIN controls let you fine-tune signal quality
Specifications
| Brand | Tripp Lite |
|---|---|
| Model | B130-101-U |
| Extender & Repeater Type | Non Wall Plate Extender |
| Distance | 1920 x 1440 (60Hz) signal up to 350 ft. 1024 x 768 (60Hz) signal up to 500 ft. |
| USB Port | Connector B: USB A (Male) |
| VGA | Side A - Connector 1: 2 x HD15 (Male) |
| Other Connector | Connector A: 2 x RJ45 (Female) |
| System Requirements | Computer with VGA graphics card Display monitor or projector with VGA |
| Specification | Cable Type: VGA Display Style: Extender Color: Black |
| Feature | Extends a 1920 x 1440 (60Hz) signal up to 350 ft., or a 1024 x 768 (60Hz) signal up to 500 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) USB-powered...no external AC power needed Built-in VGA dongles... no need for additional VGA cables Built-in Equalization and Gain controls for the sharpest images Uses readily available Cat5e or Cat6 solid conductor cable Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases |
| Package Content | VGA over Cat5 Transmitter VGA over Cat5 Receiver EQ and GAIN adjustment screwdriver |
| Shipping weight | 0.91 kg |
| Package size | 208 × 145 × 43 mm |
Questions about this item
How do I connect the transmitter and receiver without buying extra VGA cables?
The kit includes built-in VGA dongles on both units; plug each HD15 male directly into the computer and display, then link the two RJ45 ports with a solid 24 AWG Cat5e or Cat6 patch cable.
Will the USB power connection need attention after installation?
The transmitter and receiver draw power from the host USB-A ports, so as long as those ports stay active no separate adapter or battery replacement is required.
At what distance does the 1920 x 1440 60 Hz image stop being supported?
The 1920 x 1440 60 Hz signal is rated for 350 ft; beyond that only 1024 x 768 60 Hz remains supported up to 500 ft.
