Small black metal box with one HDMI input and two HDMI outputs

Tripp Lite

Tripp Lite B118-002-UHD-2 2-port HDMI video splitter

SKU CH-WZ2Q-JN8N5 MPN B118-002-UHD-2

Splits one 4K HDMI source to two displays at 60 Hz with HDCP 2.2 and 3D support

  • TypeHDMI Splitters
  • Ports2
  • AudioYes
  • ColorBlack
  • Cable LengthNo
  • SpecificationsExternal Power Supply Input Specs (V / Hz / A) : 100-240V, 5
  • Transmits 4K UHD video at 60 Hz for smooth high-resolution playback
  • Distributes audio and video up to 15 ft using 28 AWG cable for flexible placement
  • Supports DTS-HD, Dolby TrueHD and Dolby Digital Plus for premium surround sound
  • HDCP 2.2 and HDMI 2.0 compatible for protected 4K content
  • Plug-and-play operation with no software or drivers needed

Two-Port 4K HDMI Splitter

The Tripp Lite B118-002-UHD-2 takes one HDMI source and sends the same signal to two displays at the same time. It handles resolutions up to 3840 x 2160 at 60 Hz and supports HDCP 2.2 for protected content. The unit is HDMI 2.0 compliant and works with 3D video formats. No software or drivers are needed for operation.

Installers needing identical output on two screens

This splitter suits digital signage in classrooms, churches, offices, restaurants, bars and trade shows where the same 4K image must appear on two monitors. It distributes audio and video up to 15 ft when used with 28 AWG cable. Buyers who need independent images on each display or more than two outputs should look at a matrix switch or a model with additional ports.

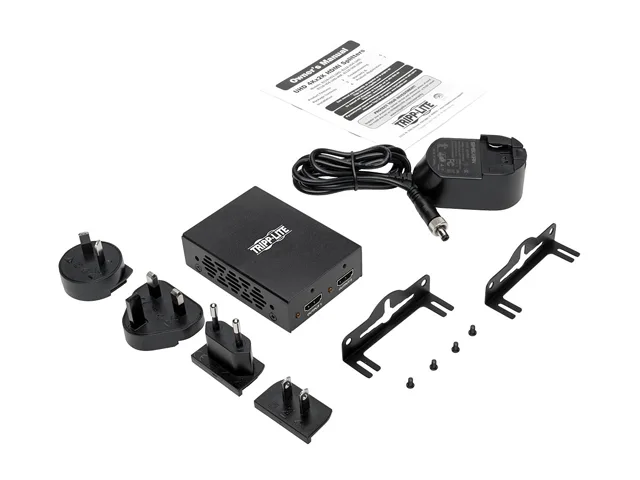

External power supply included

A 100-240 V, 50/60 Hz input adapter with a 1.2 m cord delivers 5 V at 2 A to the splitter. Nickel-plated HDMI connectors resist corrosion on the single input and dual output ports. The package adds no software, so the only change to a setup is the powered distribution of one source to two screens.

Highlights

  • Transmits 4K UHD video at 60 Hz for smooth high-resolution playback
  • Distributes audio and video up to 15 ft using 28 AWG cable for flexible placement
  • Supports DTS-HD, Dolby TrueHD and Dolby Digital Plus for premium surround sound
  • HDCP 2.2 and HDMI 2.0 compatible for protected 4K content
  • Plug-and-play operation with no software or drivers needed

Specifications

BrandTripp Lite
ModelB118-002-UHD-2
TypeHDMI Splitters
Ports2
AudioYes
ColorBlack
Cable LengthNo
SpecificationsExternal Power Supply Input Specs (V / Hz / A) : 100-240V, 50/60HZ, 0.35A
External Power Supply Output Specs (V / A): 5V, 2A
External Power Supply Cord Length (ft.): 4 ft.
External Power Supply Cord Length (m.) : 1.2m
External Power Supply Plug(s): NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
External Power Supply Certifications : CE, FCC, UL, cUL, TUV, CCC, PSE, C-Tick, GS, RoHS
LED Indicators: 1 x Green (Power), 2 x Orange (Signal)
HDMI Specification: 2.0
HDCP Specification: 2.2
Audio Specification: DTS-HD, Dolby TrueHD, Dolby Digial Plus, and LPCM 7

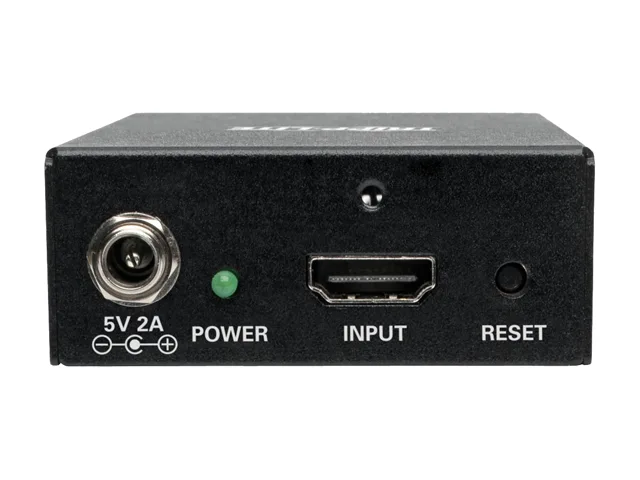

Input Connector1 x HDMI (FEMALE)

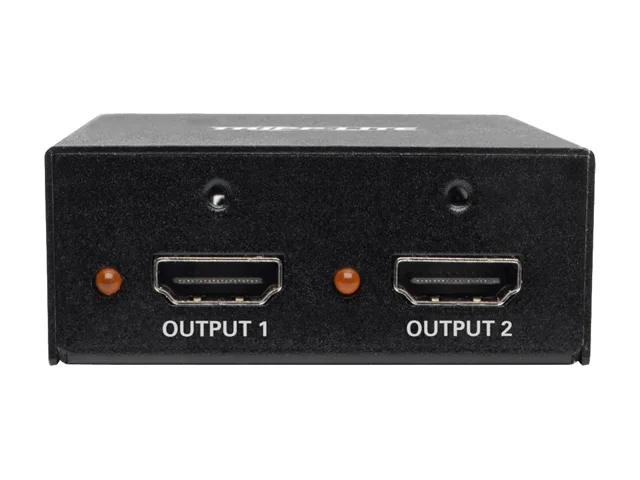

Output Connector2 x HDMI (FEMALE)
Connector PlatingNickel
Maximum Resolutions3840 x 2160 @ 60Hz
FeaturesTransmits a 4K HDMI A/V Signal to 2 HDMI Displays Simultaneously
Recommended for 4K x 2K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
Distributes A/V signals up to 15 ft. (4 m) when used with standard 28 AWG HDMI cable
Maintains UHD video resolutions up to 3840 x 2160 @ 60 Hz
HDCP 2.2, EDID and HDMI 2.0 compliant to ensure compatibility with latest A/V hardware
Supports the Most Up-To-Date Features and Formats
Full 3D
DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
36-bit Deep Color (12 bits per channel)
Vid
Weight1.14
Shipping weight0.91 kg
Package size254 × 203 × 152 mm

Questions about this item

Do I need an external power supply to run the B118-002-UHD-2, and what cable length comes with it?

The splitter includes an external power supply with a 1.2 m cord that accepts 100-240V at 50/60 Hz and outputs 5V at 2A.

Will the splitter pass 4K @ 60 Hz to both displays if my source and cables are HDMI 2.0 and HDCP 2.2 compliant?

Yes, the unit supports HDMI 2.0 and HDCP 2.2, transmitting 3840 x 2160 @ 60 Hz to two displays simultaneously when all links meet those specifications.

After connecting everything, how can I confirm the splitter is delivering 4K @ 60 Hz to each screen?

Check each display's on-screen information menu; both should report 3840 x 2160 at 60 Hz with HDCP 2.2 active and audio formats such as DTS-HD or Dolby TrueHD passing through.
