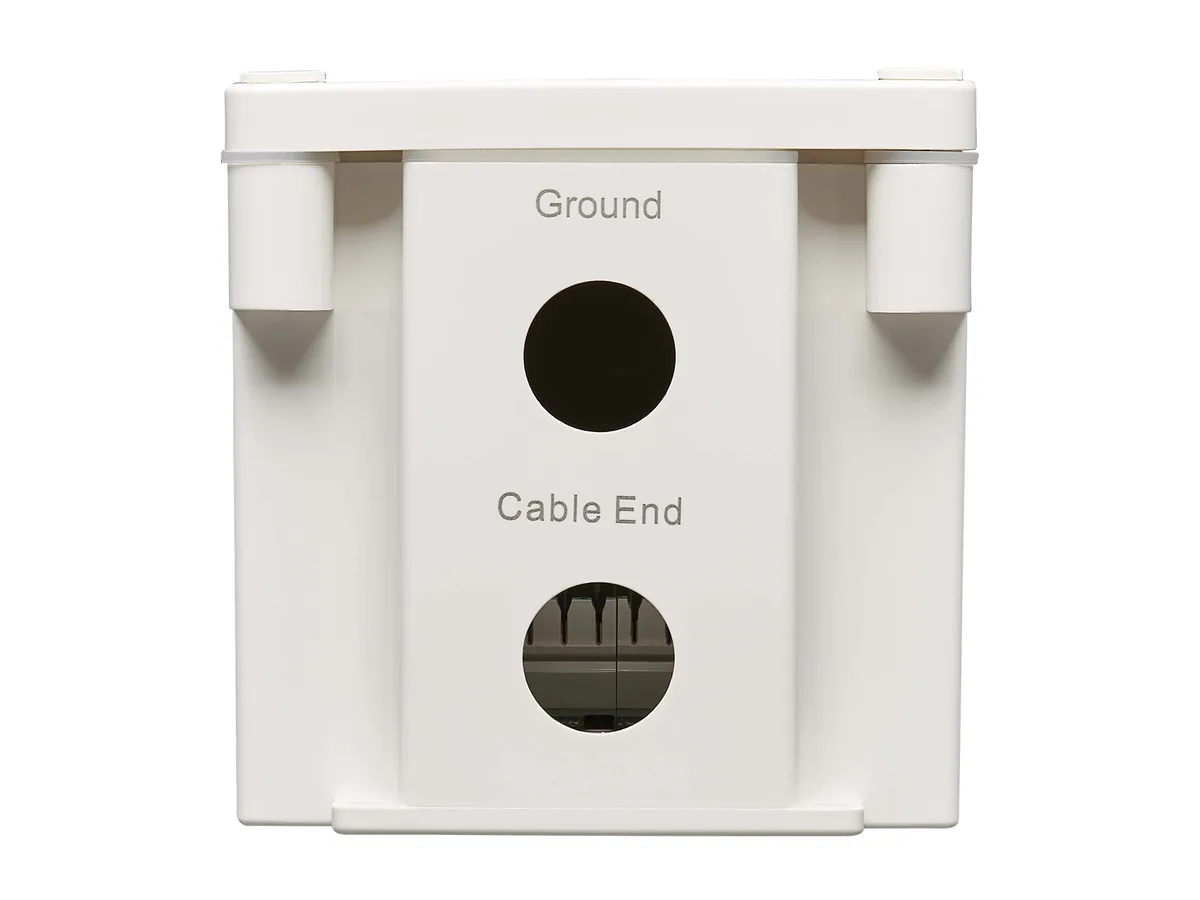

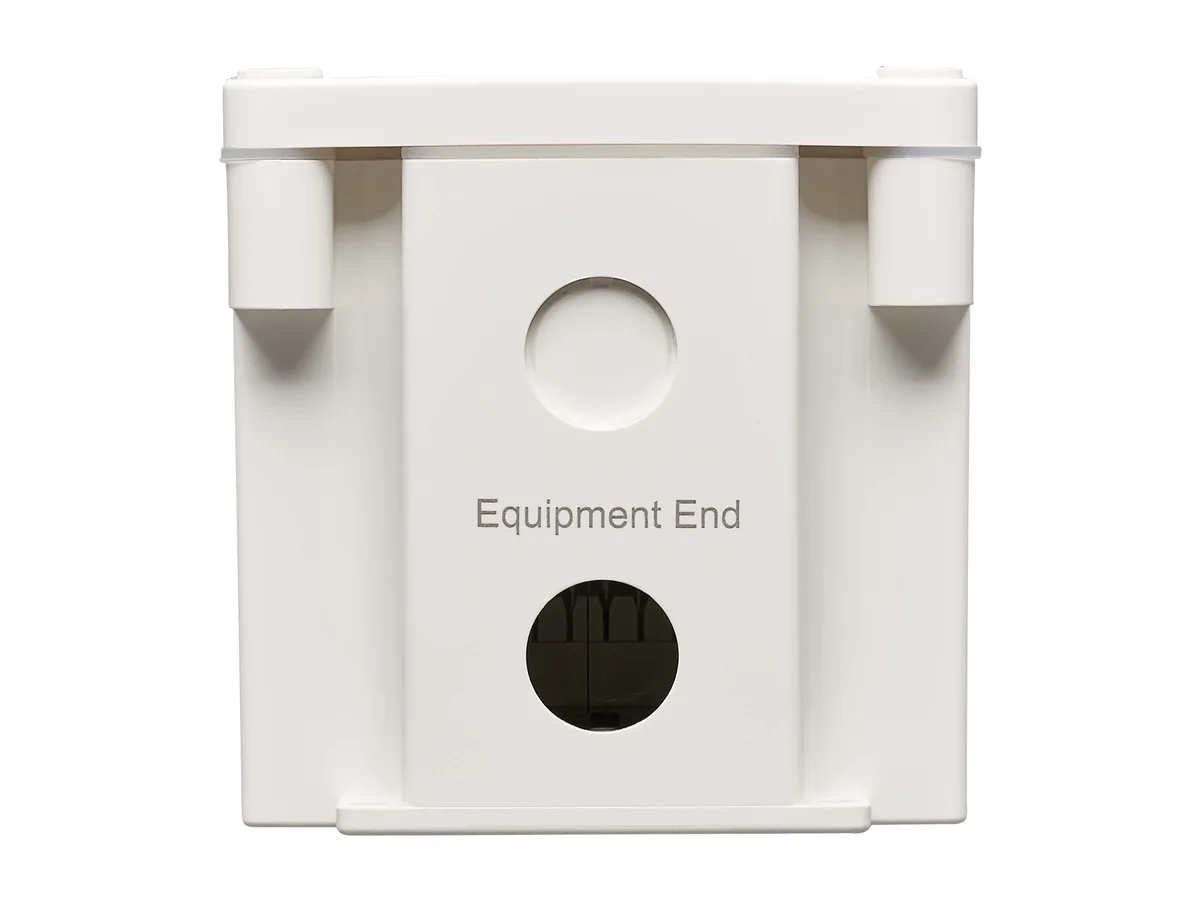

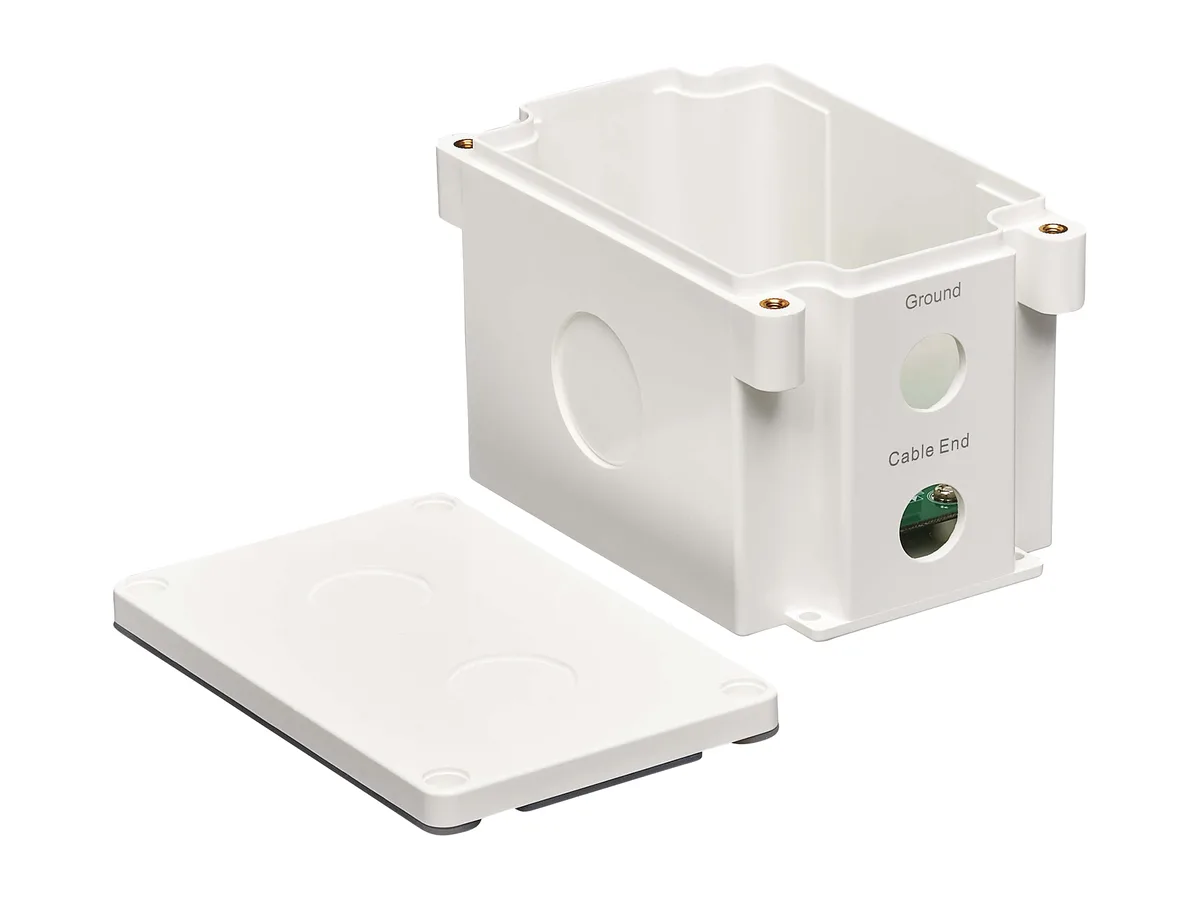

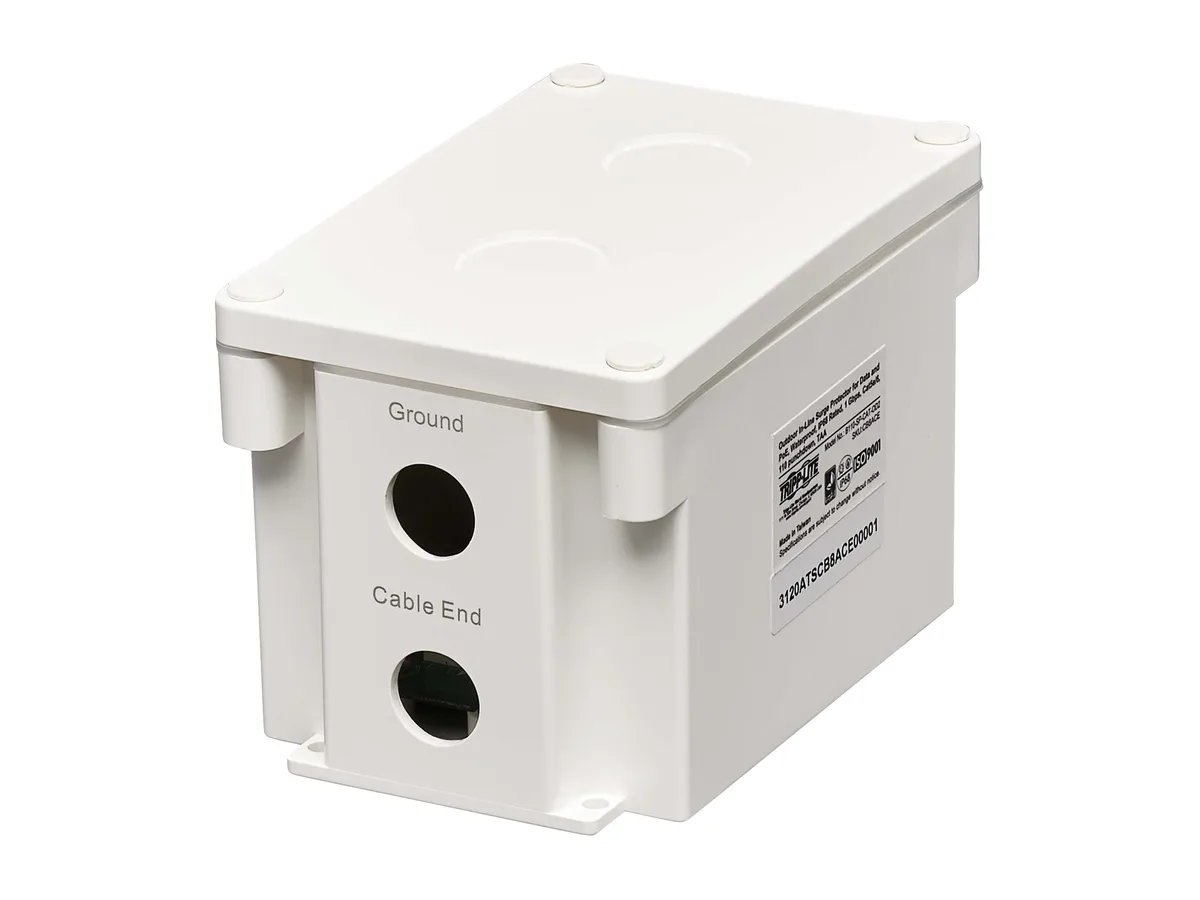

White rectangular outdoor PoE surge protector with 110 punch-down terminals and cable glands

Tripp Lite

Tripp Lite B110-SP-CAT-OD2 1 Gbps Outdoor PoE Surge Protector Cat5e/6/6a/8 IP68 110 Punch Down

SKU CH-S78A-1Z41T MPN B110-SP-CAT-OD2

Outdoor in-line surge protector shields 1 Gbps PoE edge devices with IP68 dust and water resistance, 110 IDC punch-down terminals and support for 802.3af/at/bt standards up to 100 W

  • ColorWhite
  • SpecificationProduct Type: In-Line Surge Protector Technology: Cat5/5e; C
  • FeaturesOutdoor In-Line Surge Protector Keeps Your 1G PoE Edge Netwo
  • Unit Dimensions3.16" x 4.72" x 3.15"
  • Unit Weight0.88 lb.
  • Package ContentsB110-SP-CAT-OD2 Outdoor PoE Surge Protector Grounding wire,
  • Protects 1 Gbps PoE edge gear from voltage spikes
  • IP68 rating resists dust and withstands water immersion
  • Supports 802.3af/at/bt standards with up to 100W PoE
  • Plug-and-play install needs no external power supply
  • 110 IDC punch-down terminations accept Cat5e through Cat8 cables

Outdoor PoE Surge Protection

The Tripp Lite B110-SP-CAT-OD2 is an in-line surge protector designed for outdoor 1 Gbps Power over Ethernet installations. It connects between a PoE source and a powered device using 110 IDC punch-down terminations on both sides. The IP68-rated enclosure resists dust and water immersion for reliable edge-network deployment.

Capacity and Headroom

The unit supports IEEE 802.3af, 802.3at, and 802.3bt standards with a maximum PoE capability of 100W. It delivers up to 71W to the powered device while the PSE can supply up to 90W. Gigabit data speeds are maintained across Cat5e, Cat6, Cat6a, and Cat8 cabling without an external power supply.

Upgrade Path

This protector replaces unprotected punch-down connections or indoor-only surge devices in exposed locations. The jump is warranted when deploying PoE cameras, access points, or IoT sensors outdoors where lightning or induced voltage spikes threaten equipment. It is not suited for installations requiring rackmount form factors or DIN-rail mounting.

Highlights

  • Protects 1 Gbps PoE edge gear from voltage spikes
  • IP68 rating resists dust and withstands water immersion
  • Supports 802.3af/at/bt standards with up to 100W PoE
  • Plug-and-play install needs no external power supply
  • 110 IDC punch-down terminations accept Cat5e through Cat8 cables

Specifications

BrandTRIPP LITE
ModelB110-SP-CAT-OD2
ColorWhite
SpecificationProduct Type: In-Line Surge Protector
Technology: Cat5/5e; Cat6; Cat6a; Cat8
Input Plug Type: Bare Wire
Input Cord Length (ft.): 0
Right-Angle Plug: No
Output Receptacles: Network
Material of Construction: PC (Plastic)
Mounting Holes or Slots: Yes
Rackmountable: No
Network Compatibility: 1 Gbps (Gigabit)
IEEE Standards Supported: 802.3af; 802.3at; 802.3bt
Ports: 2
PoE Capability: 100W (802.3bt)
Side A - Connector 1: 110 IDC
Side B - Connector 1: 110 IDC
PoE Type: Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at); Type 3 PoE++/UPoE (60W, IEEE 802.3bt)
Power Available a
FeaturesOutdoor In-Line Surge Protector Keeps Your 1G PoE Edge Network Equipment Safe.
Your Last Defense Against Intruding Voltage Spikes That Can Cause Costly Downtime.
IP68 Rating Denotes Resistance to Dust and Water.
Ready to Use Right from the Package, So You Can Plug and Play Immediately.
TAA-Compliant for GSA Schedule Purchases.
Unit Dimensions3.16" x 4.72" x 3.15"
Unit Weight0.88 lb.
Package ContentsB110-SP-CAT-OD2 Outdoor PoE Surge Protector
Grounding wire, 18 AWG, 1 ft. (0.3 m)
(3) Metric cable glands, 8.4 mm diameter
(4) Surface mounting screws
(4) Surface screw anchors
(4) Unit cover screws
Owner's manual
Shipping weight0.50 kg
Package size294 × 150 × 83 mm

Questions about this item

Will this surge protector work with my existing Cat5e PoE cameras running 15.4 W?

Yes, it supports IEEE 802.3af Type 1 PoE at 15.4 W and passes data at 1 Gbps over Cat5e cabling.

How can I confirm the B110-SP-CAT-OD2 is protecting the line after I punch down the 110 IDC connections?

The unit is plug-and-play with no external power needed; once the 110 IDC terminations are seated and the grounding wire is bonded, the protector is active.

What mounting hardware and cable glands come in the box for an outdoor pole install?

The package includes four surface mounting screws, four screw anchors, four cover screws, three 8.4 mm metric cable glands and an 18 AWG 1 ft grounding wire.
