Tripp Lite
Tripp Lite B072-032-IP2-K 32-Port Cat5 1U KVM Switch with IP Remote Access, 16 USB Dongles
A 32-port Cat5 KVM switch with IP remote access in a 1U rack-mount form factor, supplied with 16 USB dongles for server connections
- TypeD-Sub, USB, PS/2
- Computer Connections32 x RJ45 Female
- Video Resolution1920 x 1080
- Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V A
- Features32 ports provide control of computers/servers locally or via
- Dimensions1.70" x 17.30" x 11.00"
Computer Connections 32-Port Remote + Cables
- 8-Port Remote
- 16-Port Remote
- 16-Port Remote (2 + 1)
- 32-Port Remote + Cables
- Control 32 servers locally or remotely via IP access
- Cat5 cabling reaches servers up to 100 ft away
- 16 USB dongles included for immediate server connection
- Fits 1U rack space measuring 1.70 inches high
- Dual power cords support 100V to 240V AC input
32-Port Cat5 KVM with IP Access
The Tripp Lite B072-032-IP2-K is a 1U rack-mount KVM switch that lets administrators manage 32 servers from a single local console or remotely over a network. Sixteen USB server interface dongles are included, enabling USB keyboard and mouse connectivity for each connected system using low-cost Cat5e/6/6a cabling. It supports video resolutions up to 1920 x 1080 and operates on nominal input voltages from 100V AC to 240V AC at 50/60Hz.
IT teams needing dense remote server management
This switch suits data-centre operators who require simultaneous local and dual-remote access to 32 VGA-based servers within a single rack unit. It also fits budgets that favour copper Cat5 infrastructure over fibre or proprietary cabling. Buyers whose servers lack USB or PS/2 ports, or who need native digital video inputs such as HDMI or DisplayPort, should look at something else. Environments requiring more than 32 ports per appliance will need a different solution.
1U form factor with 32 RJ45 ports
The unit occupies exactly 1U of rack space measuring 1.70" x 17.30" x 11.00" and weighs 13.56 lbs. Its front and rear provide 32 RJ45 female ports for server connections plus dedicated local console and IP remote access. If the available rack depth or power distribution cannot accommodate these dimensions and the 120V 0.7A / 230V 0.3A current draw, the switch will not fit the installation.
Highlights
- Control 32 servers locally or remotely via IP access
- Cat5 cabling reaches servers up to 100 ft away
- 16 USB dongles included for immediate server connection
- Fits 1U rack space measuring 1.70 inches high
- Dual power cords support 100V to 240V AC input
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B072-032-IP2-K |
| Type | D-Sub, USB, PS/2 |
| Computer Connections | 32 x RJ45 Female |
| Video Resolution | 1920 x 1080 |
| Power Features | Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC Input Frequency: 50/60Hz Input Current: 120V (0.7A) / 230V (0.3A) |
| Features | 32 ports provide control of computers/servers locally or via your network or the Internet Occupies just 1U of rack space Low-cost Cat5 cabling allows longer distances, reduces cable clutter Simultaneous support for 3 users - 1 local, 2 remote Includes 16 USB Server Interface dongles for connecting computers or servers |
| Dimensions | 1.70" x 17.30" x 11.00" |
| Weight | 13.56 lbs. |

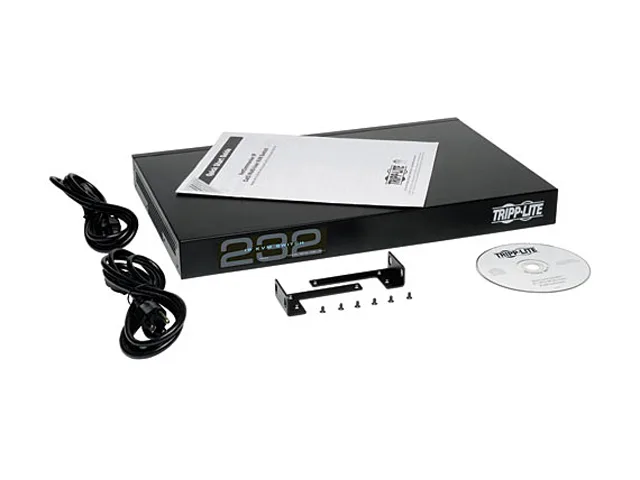

| Package Contents | B072-032-IP2-K 32-Port Cat5 2+1 User 1U Rack-Mount KVM Switch with IP Remote Access 16 USB Server Interface Dongles(B078-101-USB-1) C13 to 5-15P Power Cords(x2) Rack-Mount Hardware CD with Owner's Manual Quick Start Guide |
| Shipping weight | 6.37 kg |
| Package size | 582 × 371 × 147 mm |
Other versions of this model
3 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Tripp Lite
Tripp Lite B072-008-1-IP 8-Port Cat5 1U KVM Switch with IP Remote Access
- D-Sub, USB, PS/2
- 8 x RJ45 Female
$785.99$901.99−13%
0.00924411BTC
In stock
Tripp Lite
Tripp Lite B072-016-IP2 16-Port Cat5 KVM Switch 1U IP Remote Access 2+1 User VGA USB
- D-Sub, USB, PS/2
- 16 x RJ45 Female
$1,263.99
0.01486592BTC
In stockQuestions about this item
What rack depth and clearance does the 1U, 17.30" wide switch require?
The unit fits a standard 19" rack, occupies 1U (1.70" height) and is 11.00" deep, so allow at least that depth plus cable bend radius behind the rear RJ45 ports.
Which dongle model connects a USB server to the RJ45 ports, and how many are included?
Sixteen B078-101-USB-1 dongles are supplied; plug each into the server's USB and VGA ports, then run Cat5e/6/6a cable to any of the 32 RJ45 jacks on the switch.
When should the two C13 power cords or the dongles be replaced?
Replace a C13 cord if the plug or insulation is damaged; swap a dongle if its USB or VGA connector fails or if you need the B078-101-USB2 model for 12Mbps virtual-media speeds.
