Silver 1U rackmount KVM switch with sixteen RJ45 ports and front panel controls

Tripp Lite

Tripp Lite B072-016-1-IP 16-Port Cat5 KVM over IP Switch

SKU CH-X67D-H8426 MPN B072-016-1-IP

A 16-port Cat5 KVM over IP switch providing remote and local access to 16 servers up to 100 ft away with dual Ethernet redundancy

  • TypeD-Sub, PS/2
  • PC ConnectorsVGA; USB; PS/2
  • Computer Connections16 x RJ45 Female
  • Monitor Connections1 Port
  • Video Resolution1600 x 1200
  • PC SelectionOSD, Hot Key or Remote console toolbar

Computer Connections 16-Port Remote

  • Control 16 servers from a single console
  • Manage one server locally while another user works remotely
  • Place servers up to 100 ft away using Cat5e/6 cables
  • Access any connected system through a standard web browser
  • Fit the switch in a standard 1U rack space

16-Port Cat5 KVM over IP Switch

The Tripp Lite B072-016-1-IP is a 1U rackmount KVM switch that lets one local operator and one remote administrator manage up to sixteen servers over a standard Cat5e or Cat6 infrastructure. It delivers video resolutions up to 1920 x 1080 and includes dual Ethernet ports for network redundancy.

Check cabling and server interface modules

Each server requires an RJ45 patch cable run no longer than 100 ft (30 m) and a compatible server interface unit such as the B078-101-USB2 or B078-101-USB-1 to convert USB, PS/2 and VGA signals to the Cat5 link. Verify that your rack depth accommodates the 16.97 in chassis and that the target servers support PS/2 or USB keyboard and mouse protocols.

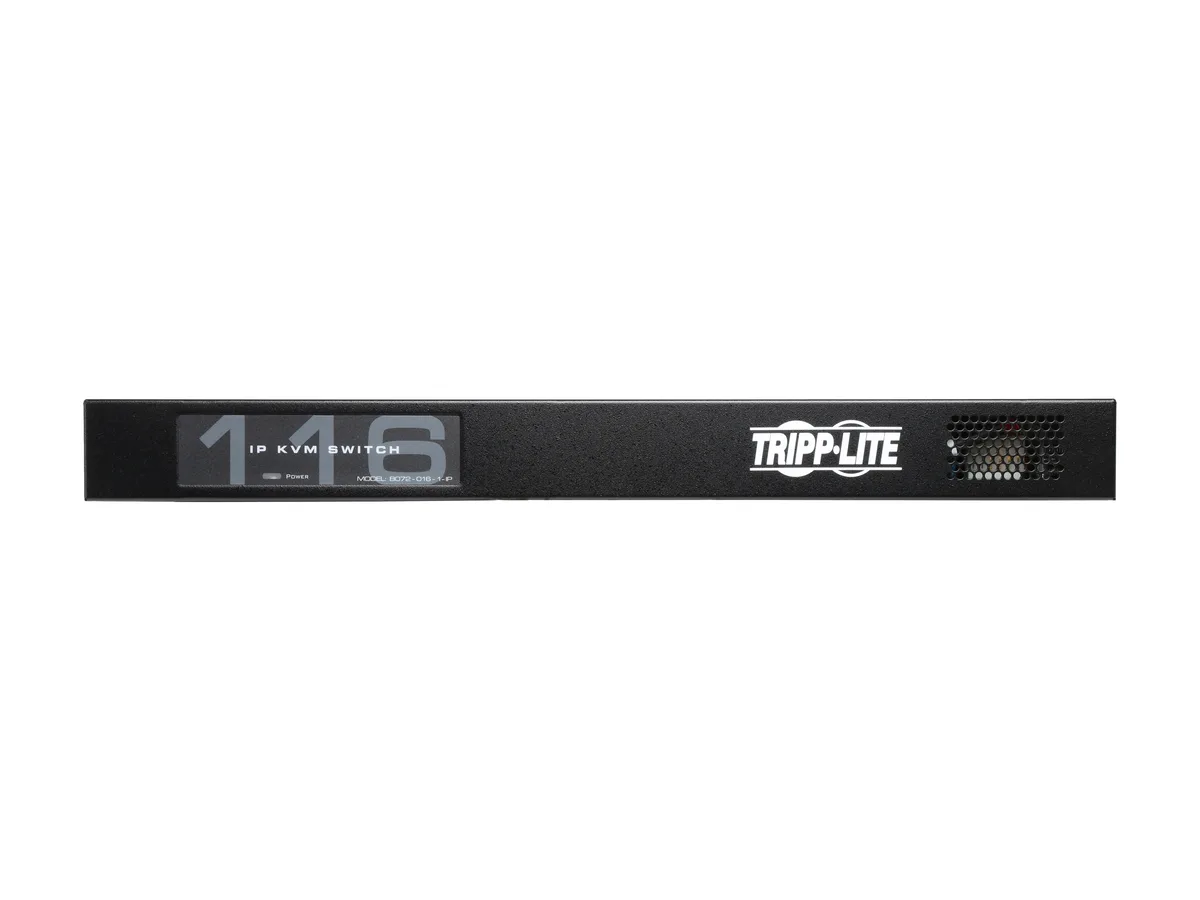

Steel 1U chassis with front-panel OSD

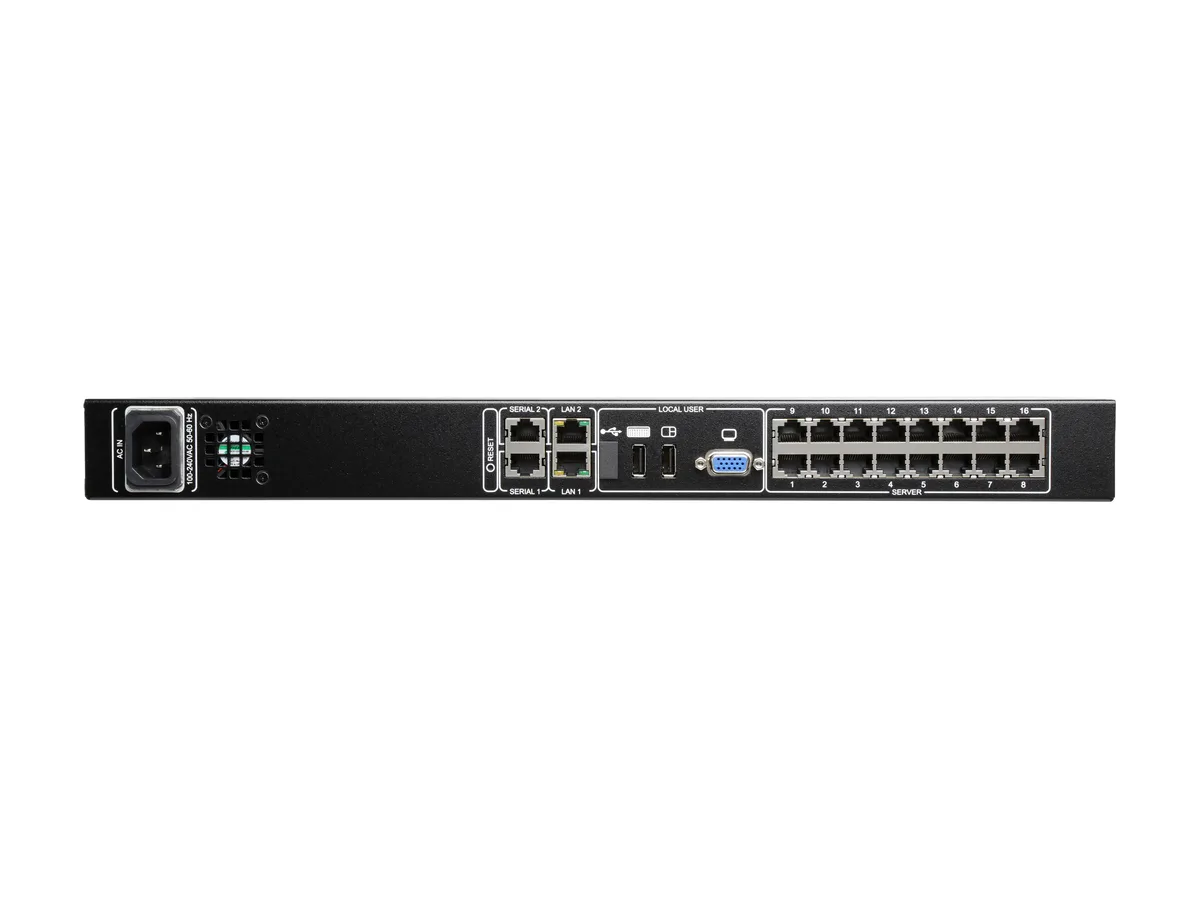

The metal enclosure measures 4.37 in high, 48.26 in wide and weighs 2.13 lbs, fitting a standard 19 in rack without additional rails. Front-panel buttons and an on-screen display provide local port selection, while the rear RJ45 array keeps cabling tidy; dual LAN sockets allow a failover path if one network link fails.

Highlights

  • Control 16 servers from a single console
  • Manage one server locally while another user works remotely
  • Place servers up to 100 ft away using Cat5e/6 cables
  • Access any connected system through a standard web browser
  • Fit the switch in a standard 1U rack space

Specifications

BrandTRIPP LITE
ModelB072-016-1-IP
TypeD-Sub, PS/2
PC ConnectorsVGA; USB; PS/2
Computer Connections16 x RJ45 Female
Monitor Connections1 Port
Video Resolution1600 x 1200
PC SelectionOSD, Hot Key or Remote console toolbar
FeaturesSimultaneous support for 2 users (1 local, 1 remote)
Java-based application allows for control of a target server via web browser from any location over a secure IP connection.
Non-Browser client available via the Support section, which can by-pass browser related Java Security prompts upon login
Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
Remote authentication support - RADIUS and LDAP/S
Supports both IPv4 and IPv6
PDU Control - Add IP PDU's as devices that can be controlled b
Dimensions4.37" x 48.26" x 16.97"
Weight2.13 lbs.
Shipping weight3.04 kg
Package size582 × 264 × 109 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables and server interface units do I need to connect 16 servers to this switch?

The switch has 16 RJ45 ports for Cat5e or Cat6 patch cables. Each server requires a B078-101-USB2 or B078-101-USB-1 Server Interface Unit that matches its USB or PS/2 port.

Which video resolution should I plan for when using the remote console over IP?

The remote session supports up to 1920 x 1080 and widescreen formats such as 1680 x 1050. The local console port handles 1600 x 1200.

How far can I place the servers from the rack using Cat5e cabling?

Connected servers can sit up to 100 ft (30 m) away from the switch when using Cat5e or Cat6 cables with the required Server Interface Units.
