Tripp Lite 1U rack console with 19-inch LCD, keyboard, touchpad and mounting brackets

Tripp Lite

Tripp Lite B021-000-19-HD2 1U 19 in. LCD Server Rack Console

SKU CH-WZAM-418C3 MPN B021-000-19-HD2

A 1U rack drawer with a 19 in. 1920 x 1080 LCD, keyboard, touchpad and DVI-I plus USB 2.0 ports for controlling a server or KVM switch

  • Type1U Rack-Mount Console with 19 in. LCD
  • Console Connectors1 x DVI 1 x USB
  • Video Resolution1920 x 1080
  • FeaturesSpace-Saving Console for IT Environments Where Rack Space Is
  • Dimensions27.26" x 18.78" x 1.70"
  • Weight27.78 lbs.
  • 1U slide-in design saves rack space
  • 19 in. LCD supports 1920 x 1080 resolution
  • DVI-I port handles digital and analog video
  • USB 2.0 pass-through connects peripherals front or rear
  • Auto sleep mode activates when cover closes

1U Rack Console with 19 in. LCD

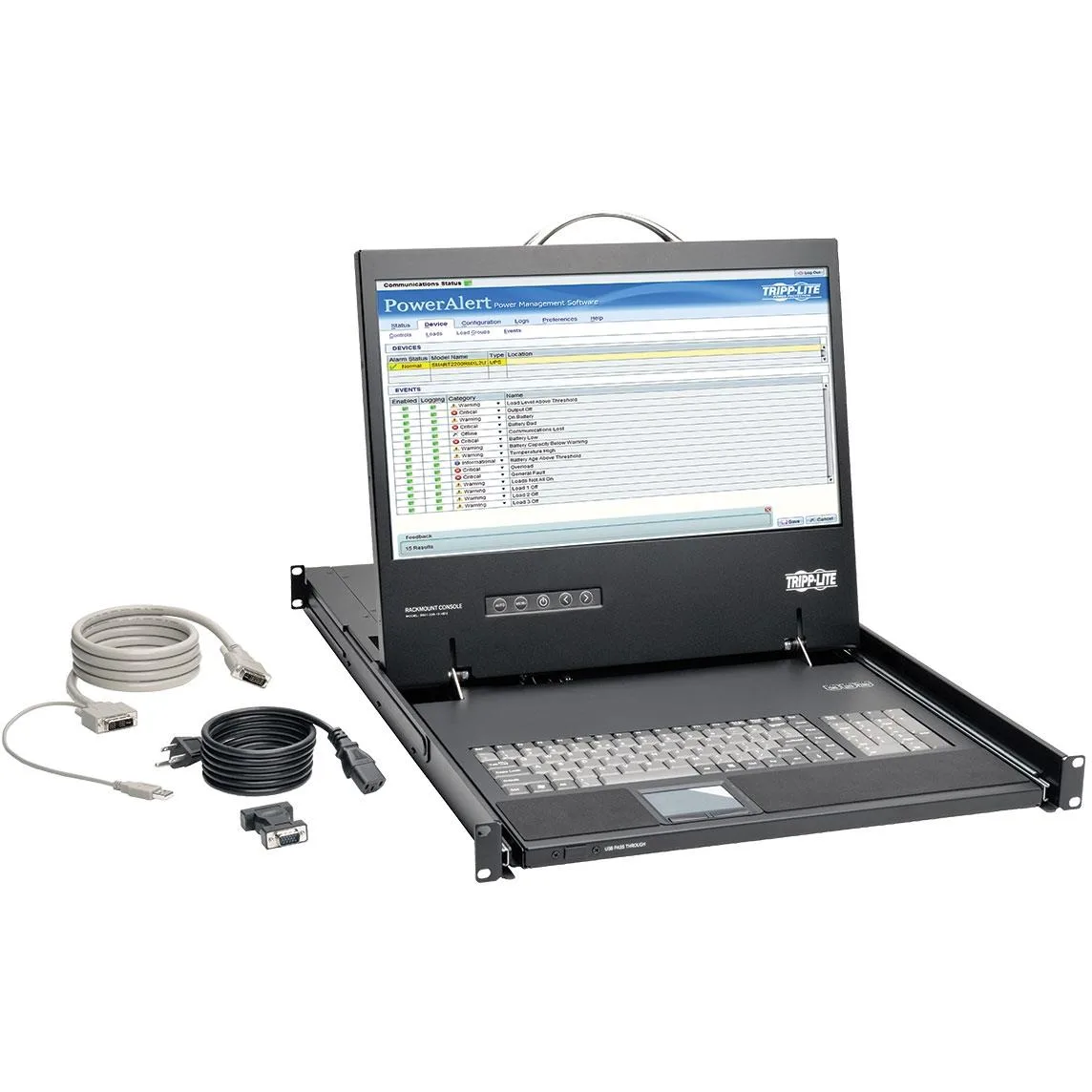

The Tripp Lite B021-000-19-HD2 is a 1U rack-mount console that integrates a 19 in. color LCD, full keyboard, numeric keypad and touchpad. It provides all-in-one control for a single computer, server or KVM switch in environments where rack space is limited. The unit slides into 1U of an EIA-standard 19 in. rack and folds away when not in use.

DVI-I Port and USB 2.0 Pass-Through

The rear DVI-I console port accepts both digital and analog video signals, and a DVI to VGA adapter is included for VGA connections. USB 2.0 pass-through ports on the front and rear allow a USB peripheral such as a flash drive or CAC reader to reach the connected system. The console enters automatic sleep mode when the cover is closed, reducing power draw and screen wear.

Included KVM Cable Kit and Mounting Brackets

The package supplies a KVM cable kit with DVI-I and USB connectors, a detachable 6 ft. AC power cord with NEMA 5-15P and C13 ends, mounting brackets and an owner’s manual. These items enable immediate installation and connection to a server or KVM switch without sourcing separate cables. Buyers who need multi-port KVM integration or serial console access will require additional hardware not provided here.

Highlights

  • 1U slide-in design saves rack space
  • 19 in. LCD supports 1920 x 1080 resolution
  • DVI-I port handles digital and analog video
  • USB 2.0 pass-through connects peripherals front or rear
  • Auto sleep mode activates when cover closes

Specifications

BrandTRIPP LITE
ModelB021-000-19-HD2
Part NumberB021-000-19-HD2
Type1U Rack-Mount Console with 19 in. LCD
Console Connectors1 x DVI
1 x USB
Video Resolution1920 x 1080
FeaturesSpace-Saving Console for IT Environments Where Rack Space Is Limited
19 in. LCD monitor, keyboard, numeric keypad and touchpad
All-in-one control of computer, server or KVM switch
Supports video resolutions up to 1920 x 1080 (1080p)
Detachable 6 ft. AC power cord with NEMA 5-15P and C13 connectors
Accepts Digital and Analog Video Signals
DVI-I port allows connection to DVI digital or VGA analog server or KVM switch
DVI to VGA adapter included
DDC2B emulation automatically adjusts video settings for optimal display on monitor
USB 2.0 Pass-Through Ports
Front and rear ports allow easy
Dimensions27.26" x 18.78" x 1.70"
Weight27.78 lbs.
Package Contents1U rack-mount console
KVM cable kit (DVI-I, USB)
DVI to VGA adapter
Detachable AC power cord with NEMA 5-15P and C13 connectors, 6 ft.
Mounting brackets
Owner’s manual
Shipping weight17.92 kg
Package size820 × 607 × 160 mm

Questions about this item

How do I mount the 1U rack console into an EIA-standard 19-inch rack using the included brackets?

Attach the supplied mounting brackets to the console sides, then fasten the unit into the rack with user-supplied screws. Pull the steel drawer out, flip the 19 in. LCD up, and slide it back when finished to trigger automatic sleep mode.

What maintenance will the DVI-I console port and USB 2.0 pass-through ports need over time?

The DVI-I port and front and rear USB 2.0 pass-through ports are solid-state connections with no moving parts; no scheduled maintenance is required. Keep the included DVI to VGA adapter and KVM cable kit (DVI-I, USB) secured for future reconfiguration.

What is the first limit reached when the console runs continuously with the 1920 x 1080 LCD active?

The 19 in. LCD enters automatic sleep mode when the cover is closed, so sustained use is limited by the operator closing the drawer rather than a thermal or power threshold. The unit draws power from the detachable 6 ft. AC cord with NEMA 5-15P and C13 connectors.
