Tripp Lite
Tripp Lite B020-U16-19-IP 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD
A 1U rack-mount KVM switch with a built-in 19-inch LCD controls up to 16 computers remotely over LAN, WAN or the Internet
- TypeD-Sub, USB, PS/2
- Computer Connections16-Port Remote
- Monitor Connections1 Port
- PC SelectionPush Buttons/Hot Keys/OSD
- AutoScan Interval1 - 255 seconds
- TemperatureStorage Temperature Range: -20 to 60 C (-4 to 140 F) Operati
Computer Connections 16-Port Remote
- 8-Port Local + Cables
- 16-Port Remote
- Control 16 computers remotely via LAN, WAN or Internet
- Built-in 19-inch LCD supports up to 1280 x 1024 resolution at 75 Hz
- Occupies only 1U rack space measuring 1.73 inches high
- Three security levels with 64 secure user accounts protect data
- Operates from 0 to 50 Celsius with 0 to 80 percent humidity
16-Port IP KVM with 19-inch LCD

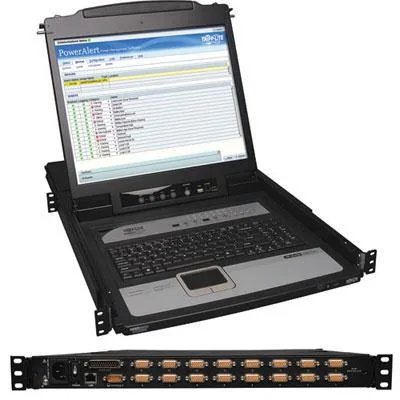

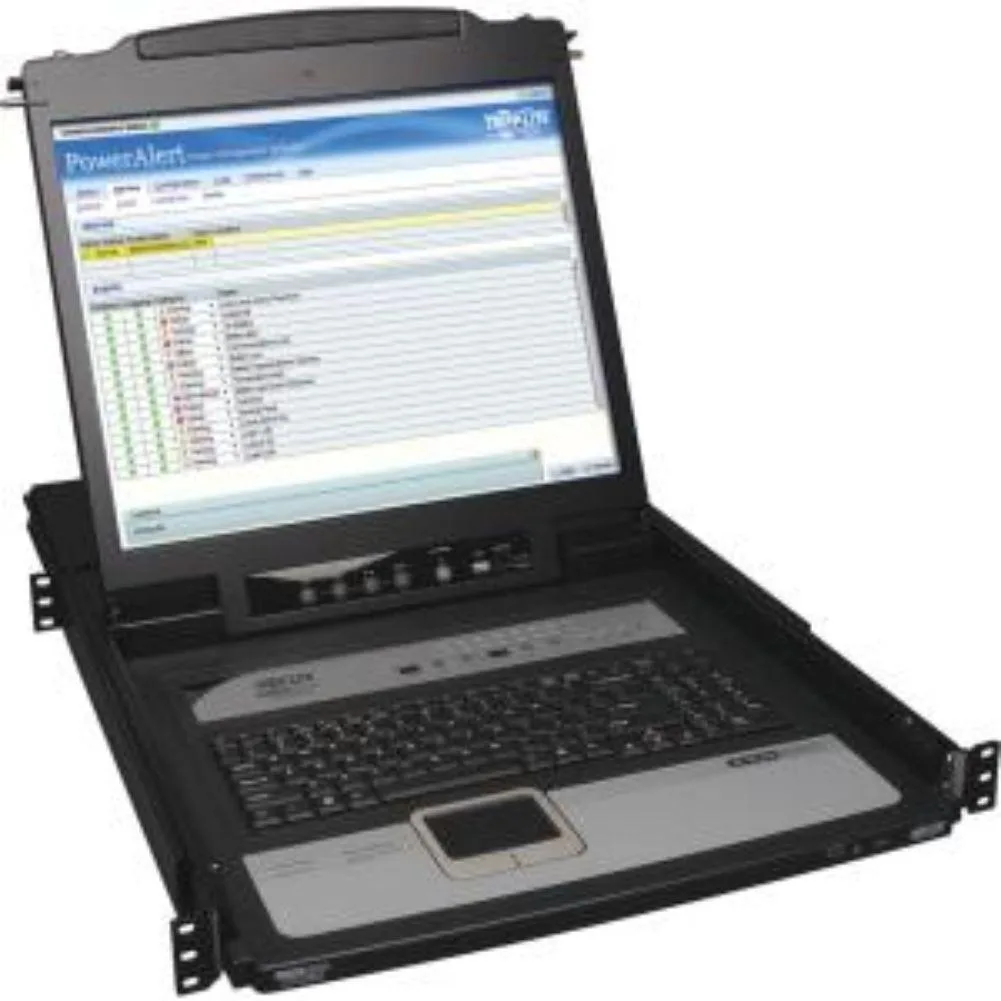

This 1U rack-mount console integrates a 19-inch LCD, keyboard and touchpad with a 16-port IP KVM switch. It lets administrators manage up to 16 servers locally or remotely over LAN, WAN or the Internet using Windows or Java clients. The unit suits data-centre staff who need single-rack access to multiple systems.
16-computer capacity and video headroom
The switch supports 16 direct computer connections via USB or PS/2 combo cables. The built-in 19-inch monitor displays up to 1280 x 1024 at 75 Hz, while remote consoles can reach 1600 x 1200 at 60 Hz. Auto-scan cycles through ports at intervals from 1 to 255 seconds. It operates from 0 to 50 °C and stores from -20 to 60 °C.
Bundled cables and security framework
Two 6 ft USB/PS2 combo KVM cable kits, an external console cable kit, a grounding wire and an RJ11-to-DB9 firmware upgrade cable are included. The firmware provides three security levels — Admin, User and Select — and accommodates up to 64 secure user accounts for delegated access control.
Highlights
- Control 16 computers remotely via LAN, WAN or Internet
- Built-in 19-inch LCD supports up to 1280 x 1024 resolution at 75 Hz
- Occupies only 1U rack space measuring 1.73 inches high
- Three security levels with 64 secure user accounts protect data
- Operates from 0 to 50 Celsius with 0 to 80 percent humidity
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B020-U16-19-IP |
| Type | D-Sub, USB, PS/2 |
| Computer Connections | 16-Port Remote |
| Monitor Connections | 1 Port |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1 - 255 seconds |
| Temperature | Storage Temperature Range: -20 to 60 C (-4 to 140 F) Operating Temperature: 0 to 50 C (32 to 122 F) |
| Humidity | 0 to 80% RH, Non-Condensing |
| Features | Complete Control from Anywhere Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent Remotely access computers via LAN, WAN or the Internet via Windows or Java Panel Array Mode allows remote monitoring of multiple ports at the same time Windows- and Java-based applications provide access without a browser Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console Built-In Security to Keep Your Data Safe 3 levels of |
| Dimensions | 1.73" x 18.90" x 27.00" |
| Weight | 31.00 lbs. |
| Package Contents | B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch (2) P778-Series USB/PS2 combo KVM cable kits, 6 ft. USB/PS2 combo external console cable kit Grounding wire RJ11 to DB9 firmware upgrade cable C13 to NEMA 5-15P power cord Mounting hardware CD with Owner’s Manuals and device files |
| Shipping weight | 18.21 kg |
| Package size | 671 × 574 × 140 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Will the 16-port USB and PS/2 KVM cables connect to my older servers that only have PS/2 keyboard and mouse ports?
Yes, the two included P778-series cable kits are USB/PS2 combo kits with 6 ft length, so they plug directly into legacy PS/2 ports on your existing servers.
How can I verify the built-in 19-inch LCD is displaying the correct resolution after installation?
The on-screen display supports up to 1280 x 1024 at 75 Hz on the local 19-inch panel; check the OSD menu to confirm that resolution is active.
Which cables and accessories ship in the box so I know what I still need to buy?
The package includes the KVM switch, two 6 ft USB/PS2 combo KVM cable kits, a USB/PS2 external console cable kit, a grounding wire, an RJ11 to DB9 firmware upgrade cable and a C13 power cord.
