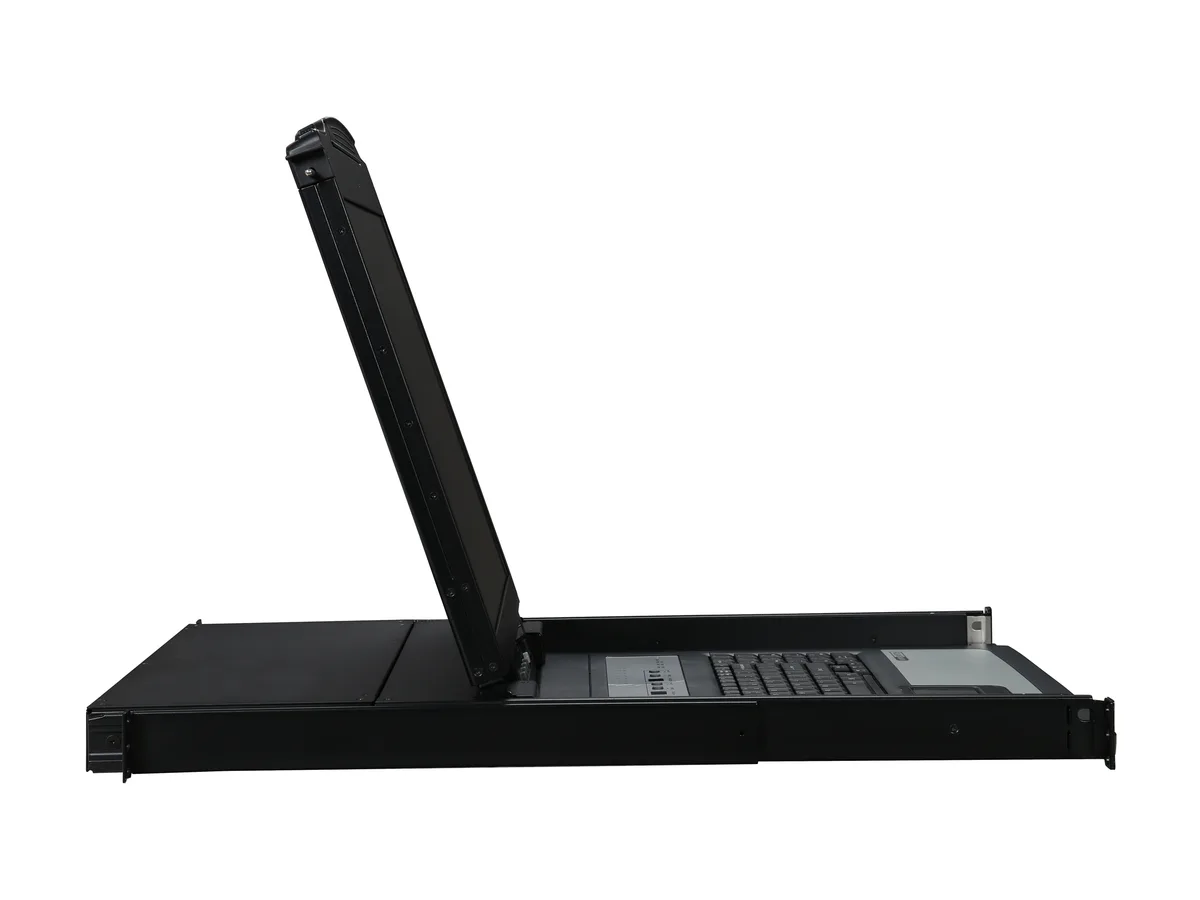

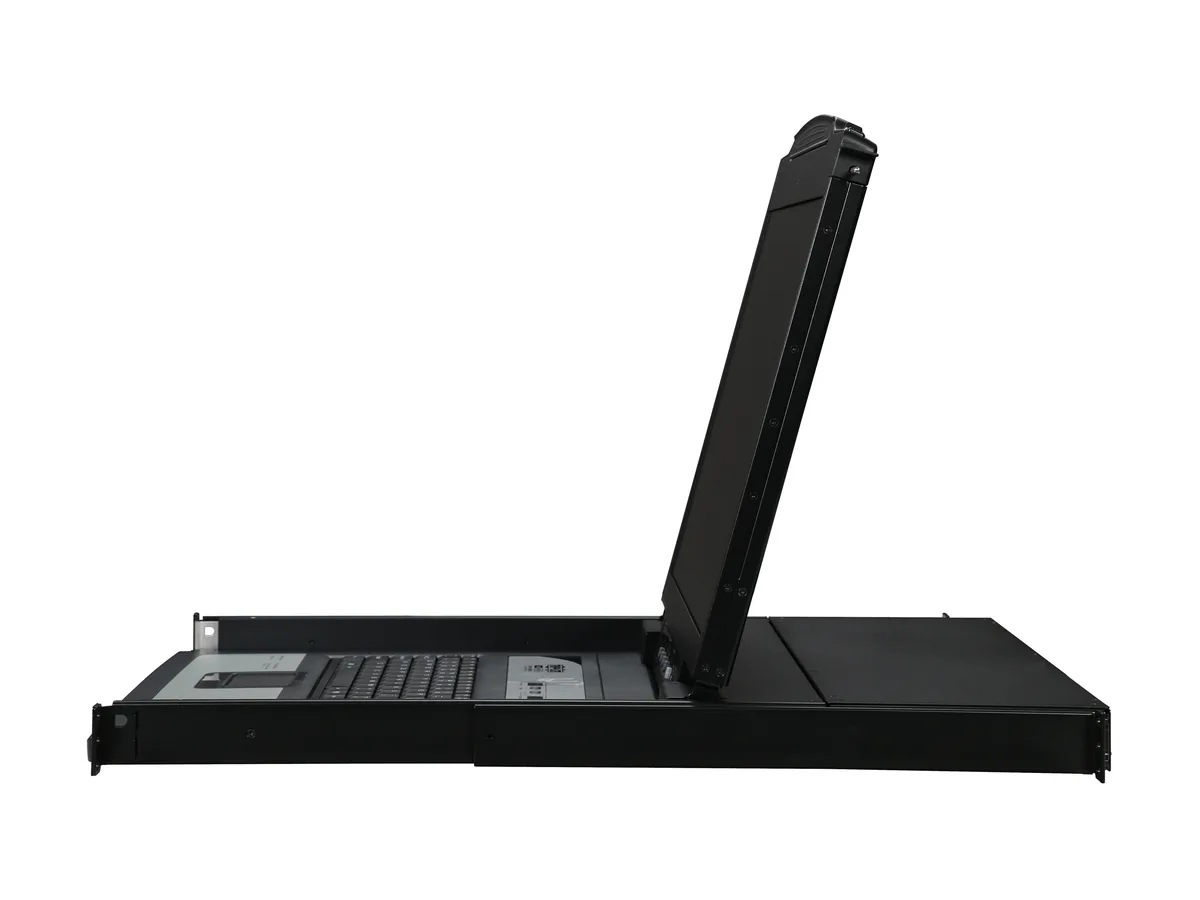

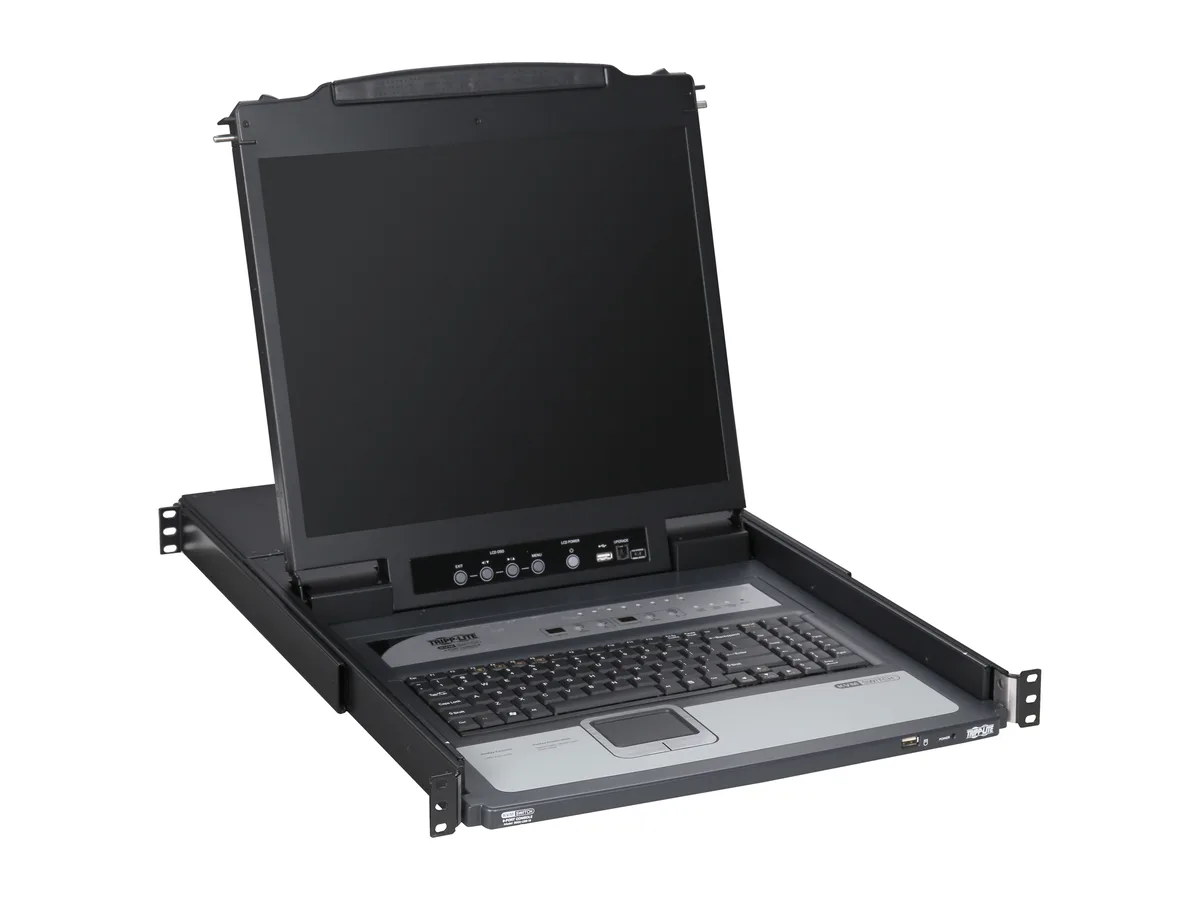

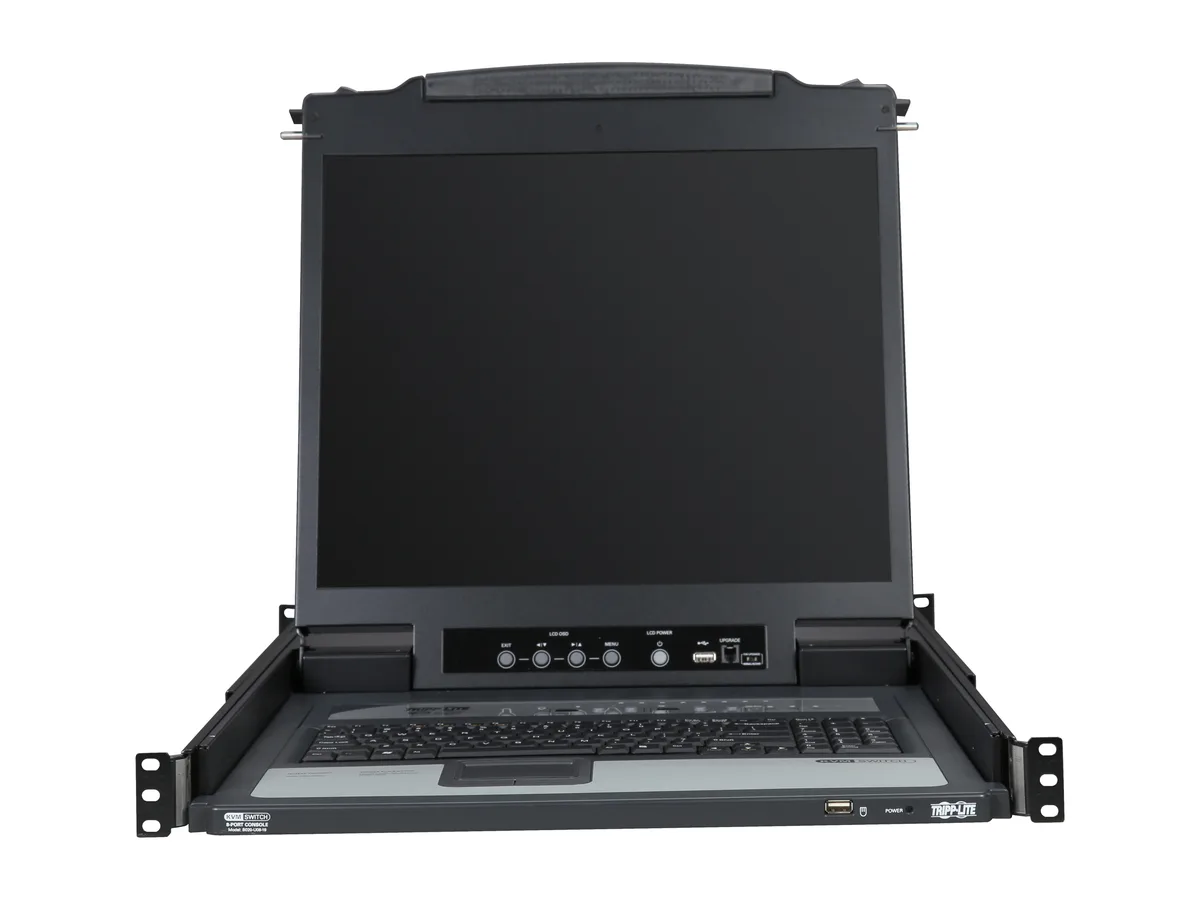

Black 1U rack drawer with 19-inch LCD, keyboard and touchpad

Tripp Lite

Tripp Lite B020-U08-19-K 8-Port 1U Rack-Mount Console KVM Switch with 19" LCD

SKU CH-8TG3-YXVSC MPN B020-U08-19-K

An 8-port KVM switch with integrated 19-inch LCD, keyboard and touchpad in a 1U rack drawer, supporting 1280 x 1024 resolution and expandable to 256 computers via daisy-chaining

  • PC Connectors8 x 18-pin HD-18 Female Keyboard/Mouse/Video
  • Console Connectors1 x 18-pin HD-18 Male Keyboard/Mouse/Video
  • Computer Connections8-Port Local + Cables
  • Monitor Connections1 Port
  • Video Resolution1280 x 1024
  • Bandwidth17.00

Computer Connections 8-Port Local + Cables

  • Control eight servers from one 1U drawer with integrated 19" LCD
  • 19-inch display shows up to 1280 x 1024 resolution for clear server management
  • Eight included PS/2-USB combo cables connect mixed servers without extra adapters
  • Expand to 256 computers by daisy-chaining up to 31 additional KVM switches
  • Front USB ports add mouse or flash-drive access while rear ports support IP remote module

Integrated 1U Console KVM

The Tripp Lite B020-U08-19-K integrates an 8-port KVM switch, a 19-inch LCD panel, a full keyboard and a touchpad into a single 1U rack-mount drawer. It lets administrators control up to eight local servers directly from the rack and stores away when not in use. The unit ships with eight PS/2-USB combo cables so each server can be connected without extra adapters.

1280 x 1024 LCD and 256-port expansion

The built-in 19-inch LCD displays up to 1280 x 1024 resolution, giving clear text for BIOS screens and OS administration. Eight local ports are available immediately, and the switch can be daisy-chained with up to 31 additional B022-U08 units to reach 256 connected computers. Bandwidth is rated at 17.00 to support the panel's native resolution without visible degradation.

PS/2-USB combo cabling and IP add-on

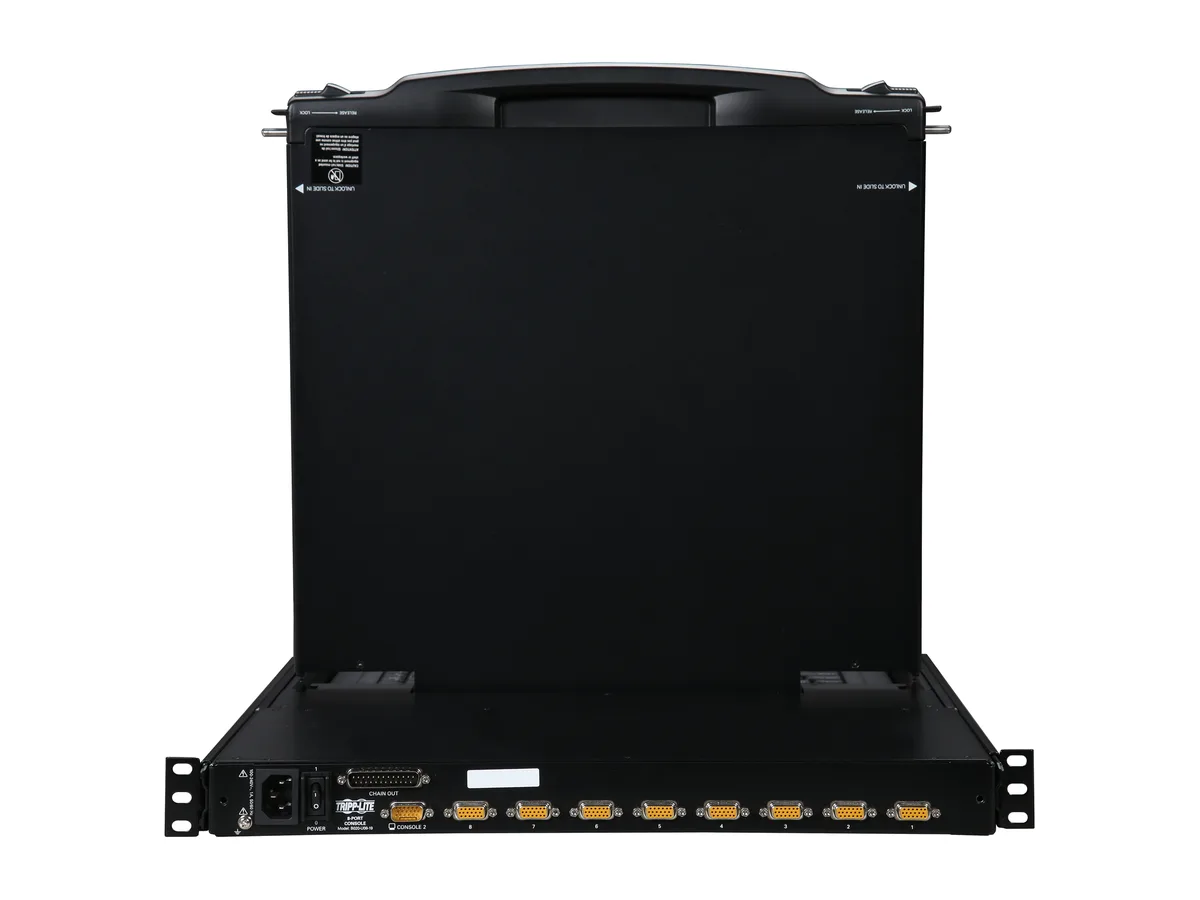

Each of the eight included cables terminates in both PS/2 and USB plugs, so mixed-generation servers are supported from one cable kit. Rear-panel HD15 and dual PS/2 ports accept a B051-000 IP remote-access module for out-of-band management, while front USB ports allow a separate mouse or flash drive. The 18-pin HD-18 console connector carries keyboard, mouse and video in a single link.

Highlights

  • Control eight servers from one 1U drawer with integrated 19" LCD
  • 19-inch display shows up to 1280 x 1024 resolution for clear server management
  • Eight included PS/2-USB combo cables connect mixed servers without extra adapters
  • Expand to 256 computers by daisy-chaining up to 31 additional KVM switches
  • Front USB ports add mouse or flash-drive access while rear ports support IP remote module

Specifications

BrandTRIPP LITE
ModelB020-U08-19-K
PC Connectors8 x 18-pin HD-18 Female Keyboard/Mouse/Video
Console Connectors1 x 18-pin HD-18 Male Keyboard/Mouse/Video
Computer Connections8-Port Local + Cables
Monitor Connections1 Port
Video Resolution1280 x 1024
Bandwidth17.00
FeaturesSold as 1 Each.
Weight42.25
Package ContentsNetDirector Console RM LCD KVM Switch
8 x PS2/USB Combo Console Cable Kit
1 x RJ45 to DB9 Firmware Upgrade Cable
1 x C13 to 5-15P Power Cord
1 x CD (Includes: Owner's Manual)
1 x Quick Start Guide
1 x Grounding Wire
1 x Rackmount Hardware Kit
Shipping weight19.57 kg
Package size828 × 671 × 137 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 19" LCD console KVM switch fit in the same 1U rack space as my existing 1U servers?

Yes, the integrated KVM switch, 19" LCD, keyboard and touchpad all occupy a single 1U rack-mountable drawer, so it installs alongside other 1U equipment without extra height.

How can I verify the 1280 x 1024 video output is active after connecting the eight PS/2-USB combo cables?

Pull out the drawer, power the unit, and use the on-console push buttons or OSD to select each port; the 19" LCD will display the connected computer's video at up to 1280 x 1024 resolution.

Which cables and accessories ship with the B020-U08-19-K so I know what I don't need to order separately?

The box includes the NetDirector console KVM with 19" LCD, eight six-foot PS/2-USB combo cable kits, an RJ45-to-DB9 firmware upgrade cable, a C13-to-5-15P power cord, a CD with owner's manual, a quick-start guide and a grounding wire.
