Tripp Lite
Tripp Lite B004-DPUA4-K 4-Port DisplayPort KVM Switch
Control four DisplayPort computers from one monitor, keyboard and mouse with included cables and a USB 3.0 hub
- TypeDisplayPort, USB

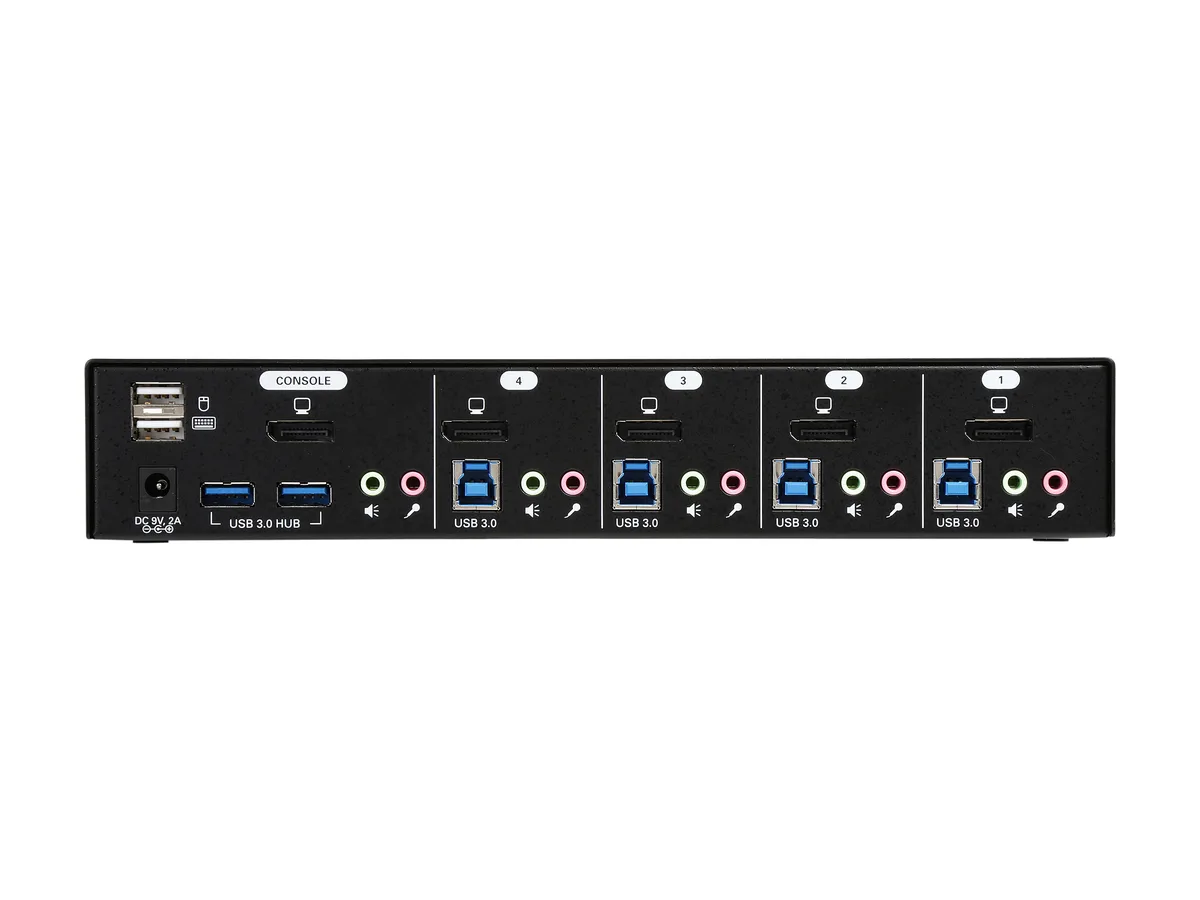

- PC ConnectorsPorts: 4 PC/Server Connections: USB; DisplayPort
- Computer Connections4 Ports
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- FeaturesAccess and Control Up to 4 Computers with One KVM Switch Swi
Computer Connections 4 Ports
- 2 Ports
- 4 Ports
- Control four computers from a single DisplayPort monitor, keyboard and mouse
- Share USB 3.0 peripherals such as drives and webcams across all connected systems
- Switch instantly using front-panel buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600 at DisplayPort 1.1
- Includes all required DisplayPort, USB 3.0 and 3.5 mm audio cables
What it is
The Tripp Lite B004-DPUA4-K is a new 4-port DisplayPort KVM switch with integrated USB 3.0 hub and audio support. It lets one DisplayPort monitor, USB keyboard and USB mouse control four computers. The package includes all required DisplayPort, USB 3.0 and 3.5 mm audio cables, each 6 ft long.
Who it suits and who it does not
It suits users who need to share one DisplayPort console and USB 3.0 peripherals across four computers. It does not suit setups requiring video resolutions above 2560 x 1600 or DisplayPort versions newer than 1.1. Buyers needing more than four computer ports or different video interfaces should look elsewhere.
The deciding specification
Maximum supported digital video resolution is 2560 x 1600 at DisplayPort 1.1. This ceiling determines whether the switch matches your monitors and graphics outputs. If your workflow demands higher resolutions or a newer DisplayPort standard, this unit will not meet the requirement.
Highlights
- Control four computers from a single DisplayPort monitor, keyboard and mouse
- Share USB 3.0 peripherals such as drives and webcams across all connected systems
- Switch instantly using front-panel buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600 at DisplayPort 1.1
- Includes all required DisplayPort, USB 3.0 and 3.5 mm audio cables
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B004-DPUA4-K |
| Type | DisplayPort, USB |
| PC Connectors | Ports: 4 PC/Server Connections: USB; DisplayPort |
| Computer Connections | 4 Ports |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Features | Access and Control Up to 4 Computers with One KVM Switch Switch among computers using keyboard hotkeys or front-panel buttons Built-in DDC emulator sends console monitor’s EDID (Extended Display Identification Data) to connected computers for top video quality without delay Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity Independent Audio Switching 3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers Listen to audio files on one computer while accessing another computer Supports 2-channe |
| Weight | 5.79 |

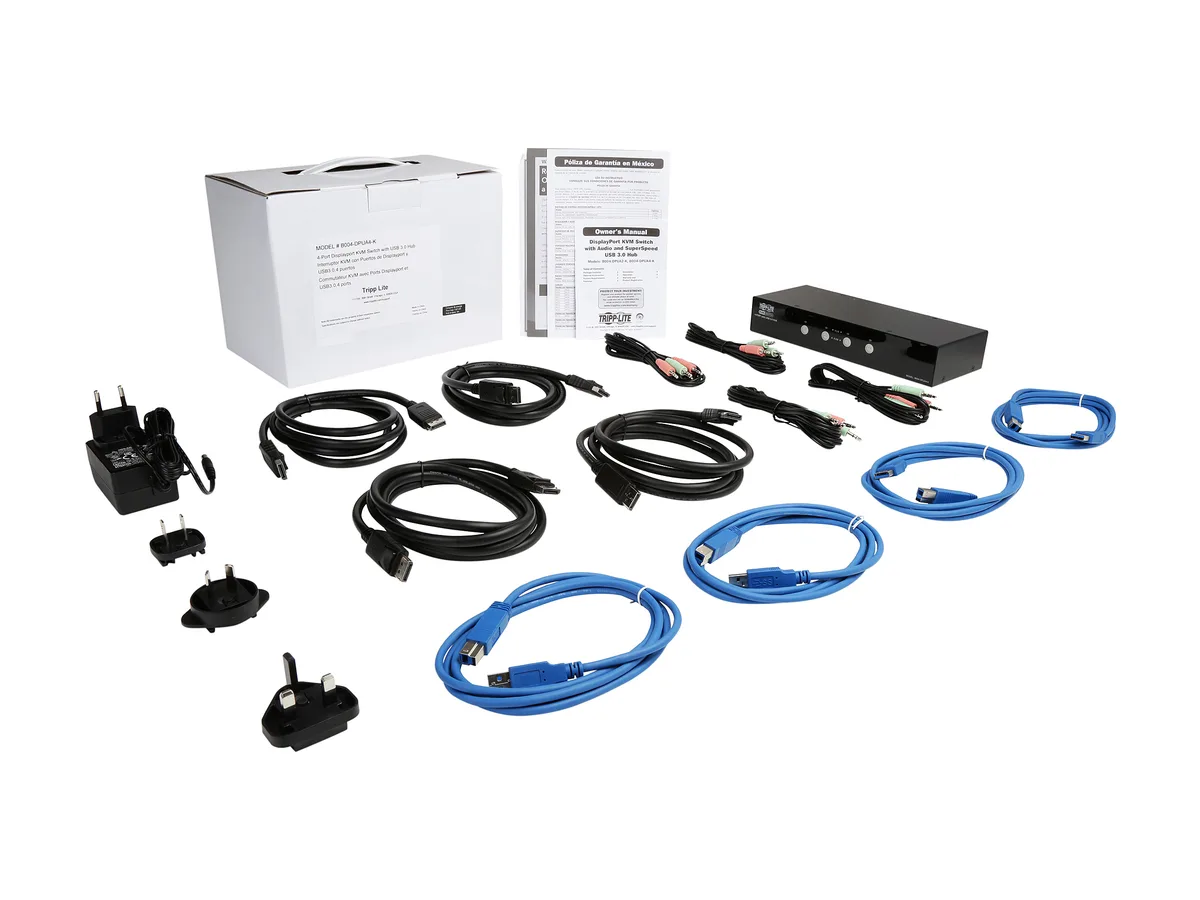

| Package Contents | B004-DPUA4-K 4-Port DisplayPort KVM Switch (4) DisplayPort cables, 6 ft. (4) USB 3.0 Type-A to Type-B cables, 6 ft. (4) 3.5 mm mini-stereo cables, 6 ft. External power supply (Input: 100/240V, 50/60 Hz, 0.5A; Output: 9V, 2A) Universal plug adapters (NEMA 1-15P, CEE 7/16, BS1363, and AS3112) Owner’s manual |
| Shipping weight | 2.62 kg |
| Package size | 272 × 196 × 163 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How many computers can I connect to this 4-port DisplayPort KVM switch?
You can connect up to four computers, each using a DisplayPort video cable, a USB 3.0 Type-A to Type-B cable and a 3.5 mm audio cable, all included in the box.
What maximum resolution does the switch support when I run a 2560 x 1600 monitor through it?
The switch passes DisplayPort 1.1 signals, so a 2560 x 1600 monitor will operate at its native resolution without downscaling.
Does the USB 3.0 hub on this switch limit peripheral speed compared to a direct motherboard port?
The built-in hub runs at USB 3.0 SuperSpeed, so connected drives or webcams see the same 5 Gbit/s bandwidth they would on a native port.
