Compact black desktop KVM switch with front push buttons and multiple rear ports

Tripp Lite

Tripp Lite B004-DPUA2-K 2-Port DisplayPort KVM Switch

SKU CH-KVE9-90VEC MPN B004-DPUA2-K

Control two DisplayPort computers with one monitor, keyboard and mouse using front buttons or hotkeys, share USB 3.0 peripherals and audio, and connect everything with the included 4 ft cables

  • TypeDisplayPort, USB
  • PC ConnectorsPorts: 2 PC/Server Connections: USB; DisplayPort
  • Computer Connections2 Ports
  • Monitor Connections2 Ports
  • PC SelectionPush Buttons
  • FeaturesAccess and Control 2 Computers with One KVM Switch Switch be

Computer Connections 2 Ports

  • Control two DisplayPort computers with one monitor, keyboard and mouse
  • Share USB 3.0 peripherals between both computers at up to 5 Gbps
  • Switch instantly via front-panel buttons or keyboard hotkeys
  • Built-in DDC emulator preserves monitor EDID for stable video
  • Includes all DisplayPort, USB 3.0 and 3.5 mm audio cables

Two-Computer DisplayPort KVM

The Tripp Lite B004-DPUA2-K lets one DisplayPort monitor, USB keyboard and USB mouse control two DisplayPort computers. A built-in USB 3.0 hub shares peripherals such as webcams or flash drives between both systems. Audio switching uses 3.5 mm jacks so a printer can run from one computer while sound plays from the other. All required cables ship in the box.

Sustained 2560 x 1600 operation

The switch maintains digital video resolutions up to 2560 x 1600 and USB 3.0 data rates up to 5 Gbps during continuous use. A DDC emulator keeps the monitor EDID visible to both computers so resolution and refresh settings stay stable when switching. The external 100/240 V power supply delivers steady 5 V output for reliable hub and video performance over long sessions.

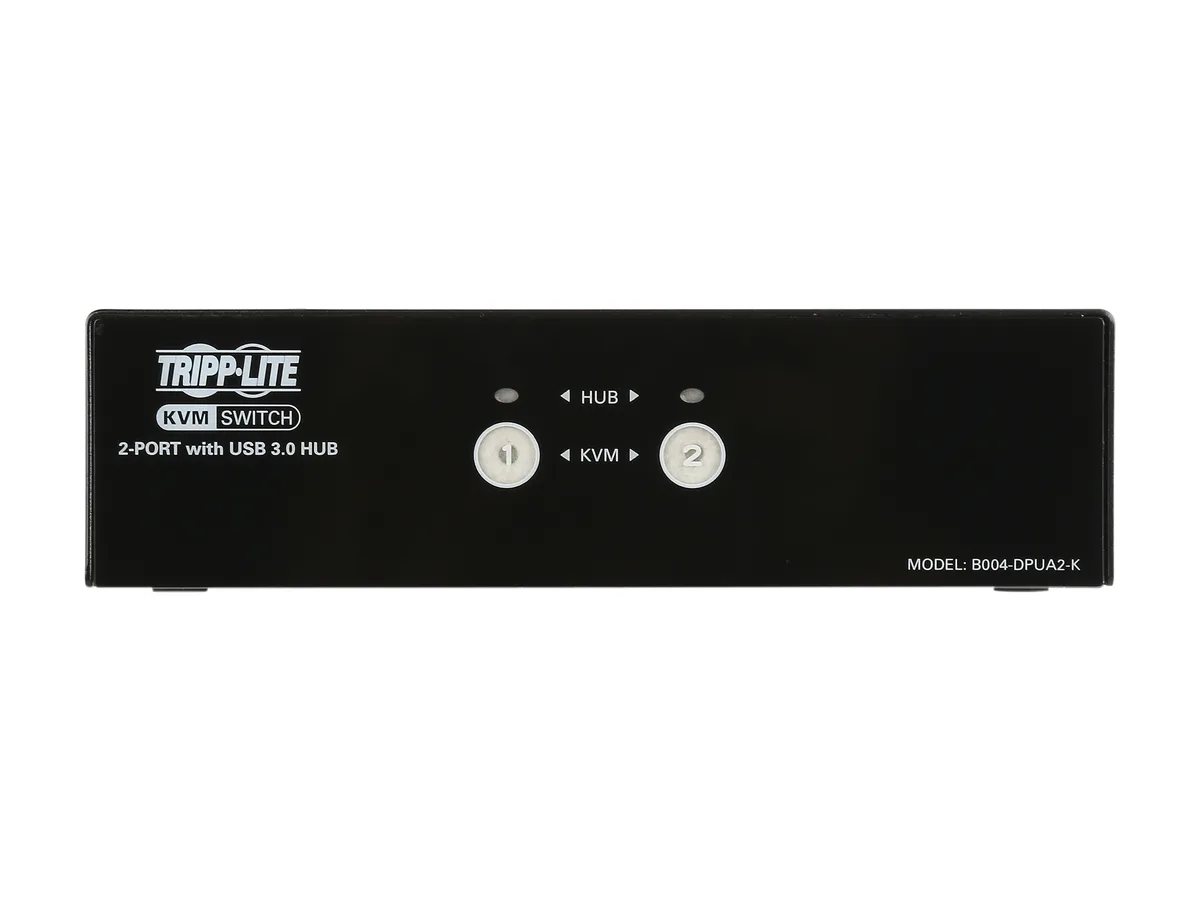

Push-button and hotkey switching

Front-panel buttons and keyboard hotkeys change the active computer without software installation. Included 4 ft DisplayPort, USB 3.0 Type-A to Type-B and 3.5 mm audio cables connect directly to each system. The unit supports one local user; buyers who need simultaneous multi-user access or more than two computer ports will require a different solution.

Highlights

  • Control two DisplayPort computers with one monitor, keyboard and mouse
  • Share USB 3.0 peripherals between both computers at up to 5 Gbps
  • Switch instantly via front-panel buttons or keyboard hotkeys
  • Built-in DDC emulator preserves monitor EDID for stable video
  • Includes all DisplayPort, USB 3.0 and 3.5 mm audio cables

Specifications

BrandTRIPP LITE
ModelB004-DPUA2-K
TypeDisplayPort, USB
PC ConnectorsPorts: 2
PC/Server Connections: USB; DisplayPort
Computer Connections2 Ports
Monitor Connections2 Ports
PC SelectionPush Buttons
FeaturesAccess and Control 2 Computers with One KVM Switch
Switch between computers using keyboard hotkeys or front-panel buttons
Built-in DDC emulator sends console monitor’s EDID (Extended Display Identification Data) to connected computers for top video quality without delay
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-chan
Weight3.15

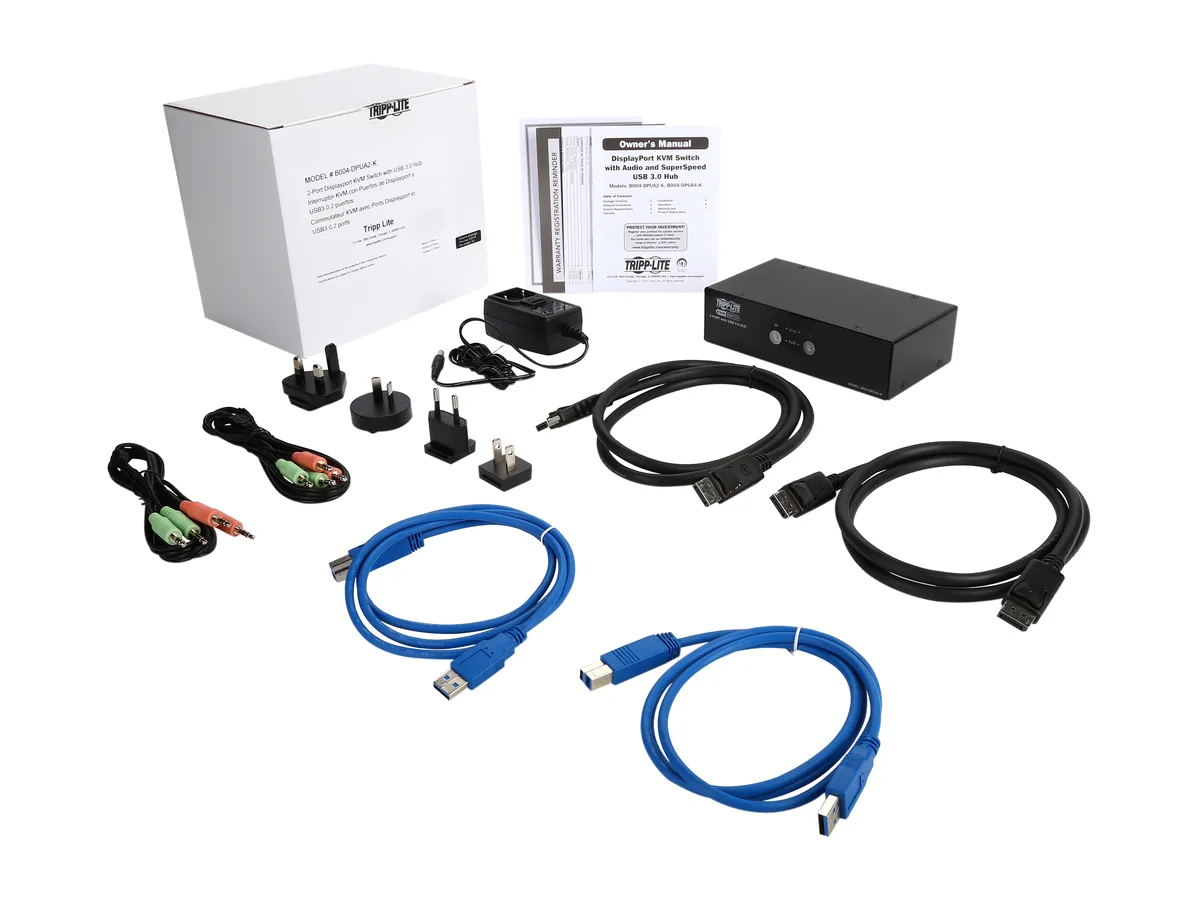

Package ContentsB004-DPUA2-K 2-Port DisplayPort KVM Switch
(2) DisplayPort cables, 4 ft.
(2) USB 3.0 Type-A to Type-B cables, 4 ft.
(2) 3.5 mm mini-stereo cables, 4 ft.
External power supply (Input: 100/240V, 50/60 Hz, 0.5A; Output: 9V, 2A)
Universal plug adapters (NEMA 1-15P, CEE 7/16, BS1363, and AS3112)
Owner’s manual
Shipping weight1.43 kg
Package size205 × 180 × 140 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Tripp Lite B004-DPUA2-K generate much heat or noise when running all day?

The unit has no fan and draws only 0.5 A from the external 100/240 V supply, so it runs silently and stays cool during continuous use.

What cables and ports must my two computers already provide to use this KVM?

Each computer needs a DisplayPort 1.1 output, a USB 3.0 Type-B port and a 3.5 mm stereo jack; all matching 4 ft cables are included in the box.

Will my older 1080p monitor work at its native resolution through this switch?

Yes, the switch supports up to 2560 x 1600 and passes 1080p signals without scaling, so a 1080p display works at full resolution.
