Large rectangular UPS unit in dark grey finish with front LCD panel, rack ears and tower stands visible

Tripp Lite

Tripp Lite 9PX6KP1G2 6000VA 5400W 208/120V UPS

SKU CH-Y36G-D4YXG MPN 9PX6KP1G2

Online double-conversion UPS delivering 6000 VA and 5400 W with 120 V, 208 V and 240 V outputs, six 5-20R, one L6-30R and one L14-30R outlet, plus a Gigabit network card for remote management

  • Input Voltage Range230 V AC
  • VA Rating6000 VA
  • Watts5400 W
  • Output Voltage240 V AC 230 V AC 220 V AC 208 V AC 200 V AC 100 V AC 110 V
  • Output Frequency50 Hz 60 Hz

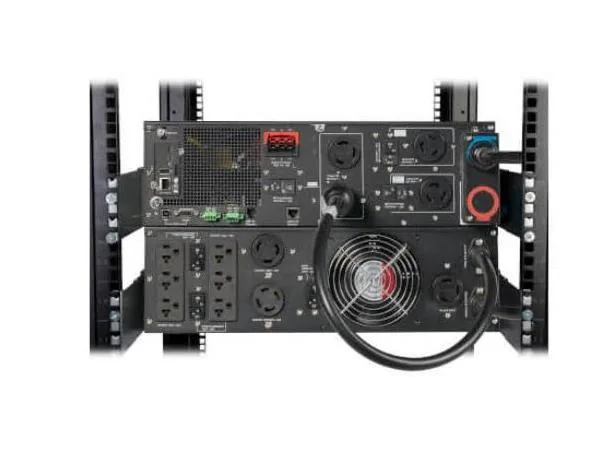

  • Outlets6 x NEMA 5-20R 1 x NEMA L6-30R 1 x NEMA L14-30R
  • Online double-conversion topology delivers clean sine-wave power
  • 6 kVA / 5.4 kW capacity supports dense IT loads
  • Six 5-20R, one L6-30R and one L14-30R outlets connect varied gear
  • Cybersecure Gigabit network card enables remote monitoring
  • 3-hour recharge restores full runtime after an outage

6 kVA Online UPS for Critical IT Loads

The Eaton 9PX G2 9PX6KP1G2 delivers 6000 VA and 5400 W of pure-sine-wave power through an online double-conversion topology. It accepts a wide 100–240 V AC input range and supplies selectable 120 V, 208 V, 200 V, 220 V, 230 V or 240 V output at 50 or 60 Hz. Eight outlets — six NEMA 5-20R, one L6-30R and one L14-30R — connect servers, storage and network gear in a 6U rack or tower form factor. A factory-installed NETWORK-M3 Gigabit card enables secure remote management.

Sustained Runtime and Thermal Behaviour

At full 5400 W load the internal valve-regulated lead-acid battery provides 3 minutes of backup; at half load the runtime extends to 8.30 minutes. Typical recharge completes in 3 hours. The unit operates continuously from 0 to 40 °C in 0–95 % non-condensing humidity. Online conversion isolates connected equipment from every input disturbance without switching delay, so voltage sags, surges and frequency drift never reach the load.

Replaces Standby or Line-Interactive Units

This UPS steps up from standby or line-interactive models that only condition power during anomalies. The jump is worth it when equipment cannot tolerate any transfer time, when harmonic distortion must stay below 3 %, or when remote shutdown and firmware updates over a hardened network card are required. It is not suited for installations that need longer battery autonomy without adding external packs, nor for sites limited to 120 V input-only wiring.

Highlights

  • Online double-conversion topology delivers clean sine-wave power
  • 6 kVA / 5.4 kW capacity supports dense IT loads
  • Six 5-20R, one L6-30R and one L14-30R outlets connect varied gear
  • Cybersecure Gigabit network card enables remote monitoring
  • 3-hour recharge restores full runtime after an outage

Specifications

BrandEATON
Model9PX6KP1G2
Part Number9PX6KP1G2
Input Voltage Range230 V AC
VA Rating6000 VA
Watts5400 W
Output Voltage240 V AC
230 V AC
220 V AC
208 V AC
200 V AC
100 V AC
110 V AC
120 V AC
Output Frequency50 Hz
60 Hz
Outlets6 x NEMA 5-20R
1 x NEMA L6-30R
1 x NEMA L14-30R
Battery TypeDC System Voltage:
180 V DC
Battery Characteristics:
Valve-regulated
Battery Chemistry:
Lead Acid
Battery Run TimeBackup/Run Time (Full Load):
3 Minute
Backup/Run Time (Half Load):
8.30 Minute
Battery Recharge TimeTypical Battery Recharge Time:
3 Hour
DimensionsHeight:
10.20"
Width:
17.30"
Depth:
27"
Weight203 lb
Package Contents9PX G2 9PX6KP1G2 6000VA Rack/tower UPS
9PXPPDM1G2 PowerPass Distribution Module with Maintenance Bypass
NETWORK-M3 Gigabit Network Card
USB Cable
RS-232 Cable
Rack-mounting Hardware
Tower Support Stands
Quick Start Guide
Shipping weight122.47 kg
Package size991 × 711 × 635 mm

Questions about this item

How much heat does the 5400 W online UPS add to a server room running 24/7?

At full load the unit delivers 5400 W of pure sine-wave power while maintaining best-in-class efficiency, so waste heat is kept to a minimum even during continuous operation.

What input plug and circuit must already exist on site for the L6-30P connection?

A single-phase 208 V or 240 V 30 A branch circuit with an L6-30R receptacle is required to feed the UPS input.

Will the L14-30R and L6-30R outlets power legacy 208 V gear alongside the six 5-20R sockets?

Yes, the UPS simultaneously provides 120 V on the 5-20R outlets and 208 V or 240 V on the L6-30R and L14-30R outlets, so older 208 V equipment can stay connected.
