Black 1U rackmount switch with 20 front ports

TRENDnet

TRENDnet TPE-1620WS 20-Port Gigabit PoE+ Web Smart Switch

SKU CH-X52X-SFZ39 MPN TPE-1620WS

A 20-port Gigabit switch with 16 PoE+ ports, 4 shared SFP/RJ-45 uplinks, 185 W power budget and web-smart management for VLAN, QoS and security

  • FormatRackmount
  • StandardsIEEE 802.3/3u/3ab, IEEE 802.3af/at
  • Network Management TypeSmart
  • Primary Ports16 x PoE+ RJ-45, 2 x Shared SFP
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table16K

Total Ports 16-Port

Struck-through versions exist but are not stocked here.

Style Smart

Struck-through versions exist but are not stocked here.

  • 16 PoE+ ports deliver up to 30 W each for power-hungry devices
  • 185 W total PoE budget supports multiple access points and cameras
  • Web smart management enables VLAN, QoS and LACP configuration
  • 4 shared Gigabit ports add RJ-45 or SFP uplink flexibility
  • 1U rack-mount chassis fits standard cabinets with 440 mm width

20-Port Gigabit PoE+ Web Smart Switch

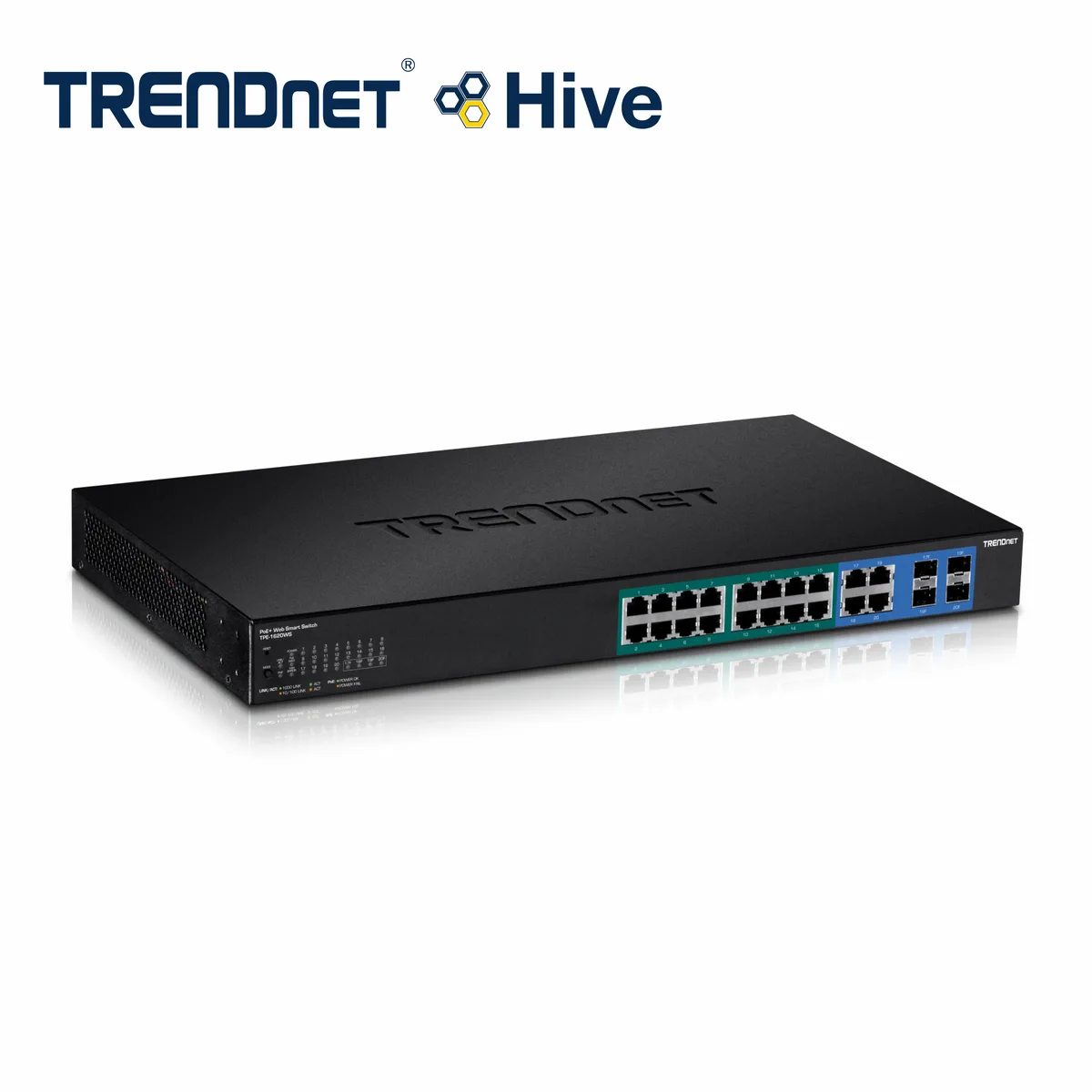

The TRENDnet TPE-1620WS is a rack-mountable 1U switch providing 16 Gigabit PoE+ RJ-45 ports and four shared Gigabit ports usable as RJ-45 or SFP. It targets installers who need managed PoE distribution for IP cameras, wireless access points or VoIP phones in a single 19-inch rack unit.

185 W PoE budget across 16 ports

Each PoE+ port delivers up to 30 W, while the total PoE budget is 185 W, so full 30 W on every port simultaneously is not possible. The switch handles a 32 Gbps switching capacity and 10 KB jumbo frames, with an 8 MB buffer to absorb traffic bursts during peak loads.

Rack-mount build with shared SFP flexibility

The metal chassis measures 440 x 251 x 44.45 mm and includes an internal 100–240 V AC power supply consuming up to 198 W. Four shared ports let you choose copper uplinks or fibre SFP modules per link, while the web interface, SNMP and optional cloud management simplify daily configuration and PoE alive-check recovery.

Highlights

  • 16 PoE+ ports deliver up to 30 W each for power-hungry devices
  • 185 W total PoE budget supports multiple access points and cameras
  • Web smart management enables VLAN, QoS and LACP configuration
  • 4 shared Gigabit ports add RJ-45 or SFP uplink flexibility
  • 1U rack-mount chassis fits standard cabinets with 440 mm width

Specifications

BrandTRENDnet
ModelTPE-1620WS
FormatRackmount
StandardsIEEE 802.3/3u/3ab, IEEE 802.3af/at
Network Management TypeSmart
Primary Ports16 x PoE+ RJ-45, 2 x Shared SFP
Primary Port Speed10/100/1000Mbps
MAC Address Table16K
VLAN SupportMultiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Jumbo Frames10KB
Buffer Memory8MB
ProtocolsTCP/IP
Security802.1X Port-Based Network Access Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Denial of Service (DoS)
PoEPoE+
SNMPYes
QoSYes
LACPYes
Port MirroringYes
PowerInput: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 198 Watts (Max)
PoE budget: 185 Watts
Dimensions440 x 251 x 44.45 mm (17.3 x 9.9 x 1.75 in.)
Rack mountable 1U height
Weight3.6 kg (7.9 lbs.)
Temperature0°C to 45°C (32°F to 113°F)
Humidity90% Maximum, Non-condensing
FeaturesPerformance:
Switch fabric: 32 Gbps
Ram buffer: 8 Mbits
MAC Address Table: 16K entries
Jumbo Frames: 10 Kbytes
HOL Blocking Prevention
Forwarding rates: 23.8 Mpps
Management:
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP
Virtual Cable Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Quality of Service (QoS):
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
Co
Package ContentsTPE-1620WS
Multi language Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power cord (1.8 m/6 ft.)
Rack mount hardware
Shipping weight5.44 kg
Package size511 × 358 × 91 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 16 PoE+ ports power my existing 802.3af cameras alongside new 802.3at access points without manual setup?

Yes, each of the 16 PoE+ ports supplies up to 30 W and negotiates 802.3af or 802.3at automatically, so legacy cameras and newer access points share the 185 W budget without extra configuration.

How can I confirm the switch is passing traffic and PoE correctly once racked and cabled?

The web smart interface shows per-port link speed, PoE power draw, and error counters; LED indicators on the front panel display link/activity and PoE status for every RJ-45 port.

What ships with the TPE-1620WS and what must I source separately for a rack installation?

The unit includes the 1U switch with internal 100-240 V AC power supply and mounting brackets; SFP transceivers for the two shared SFP slots and Ethernet patch cables are not included.
