White rectangular KVM switch with push buttons and four sets of USB VGA cables attached

TRENDnet

TRENDnet TK-407K 4-Port USB KVM Switch 2048 x 1536

SKU CH-5MCE-SVRP3 MPN TK-407K

Control four computers with one keyboard, monitor and mouse using push-button, hot-key or software switching at up to 2048 x 1536 resolution

  • TypeD-Sub, USB
  • PC Connectors4 x USB/SVGA HDB 15-pin (female)
  • Console Connectors2 x USB keyboard/mouse (type A) 1 x VGA/SVGA 15-pin HDB (fem
  • Computer Connections4 Ports
  • Monitor Connections1 Port
  • Video Resolution2048 x 1536

Computer Connections 4 Ports

  • Control four computers with one keyboard, monitor and mouse
  • High 2048 x 1536 VGA resolution keeps text crisp
  • USB-powered design removes the need for a separate adapter

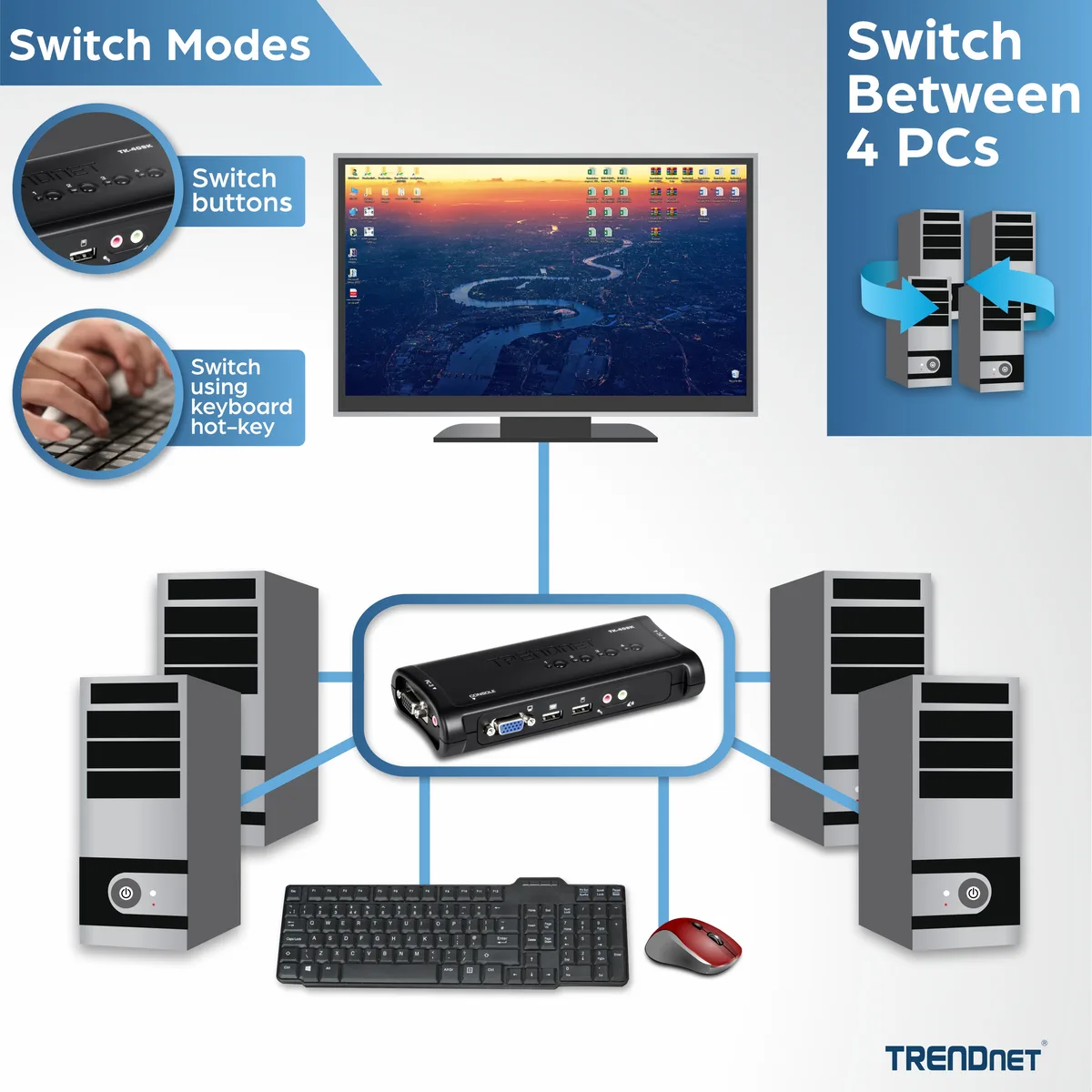

  • Switch instantly via push button, hot-key or software client
  • All required KVM cables included in 1.2 m and 1.8 m lengths

4-Port USB KVM Switch for Multi-PC Management

The TRENDnet TK-407K lets you control four computers or servers using a single keyboard, monitor and mouse. It is built for administrators and multi-system users who need to consolidate desk space and reduce peripheral clutter. The switch draws power directly from the USB connections to the attached PCs, so no external power adapter is required. This unit suits environments where VGA video and USB keyboard or mouse ports remain standard.

Maximum VGA Resolution 2048 x 1536

The switch supports video output up to 2048 x 1536, which determines the sharpest image you can display on the shared monitor. If your workflow demands higher resolutions or digital interfaces such as DVI or HDMI, this model will not meet that requirement. The single console VGA port and four computer VGA ports are all analogue HDB 15-pin connections. Buyers needing 4K, widescreen native resolutions or DisplayPort connectivity should look elsewhere.

Bundled Cables Enable Immediate Four-PC Setup

The package includes two sets of USB KVM cables at 1.2 m and two sets at 1.8 m, providing every connection needed to link four computers right out of the box. The cables also supply the switch's operating power through the USB interface. Windows-based client switching software is supported alongside push-button and hot-key switching, giving multiple ways to change the active system. No additional cabling or power accessories must be purchased separately.

Highlights

  • Control four computers with one keyboard, monitor and mouse
  • High 2048 x 1536 VGA resolution keeps text crisp
  • USB-powered design removes the need for a separate adapter
  • Switch instantly via push button, hot-key or software client
  • All required KVM cables included in 1.2 m and 1.8 m lengths

Specifications

BrandTRENDnet
ModelTK-407K

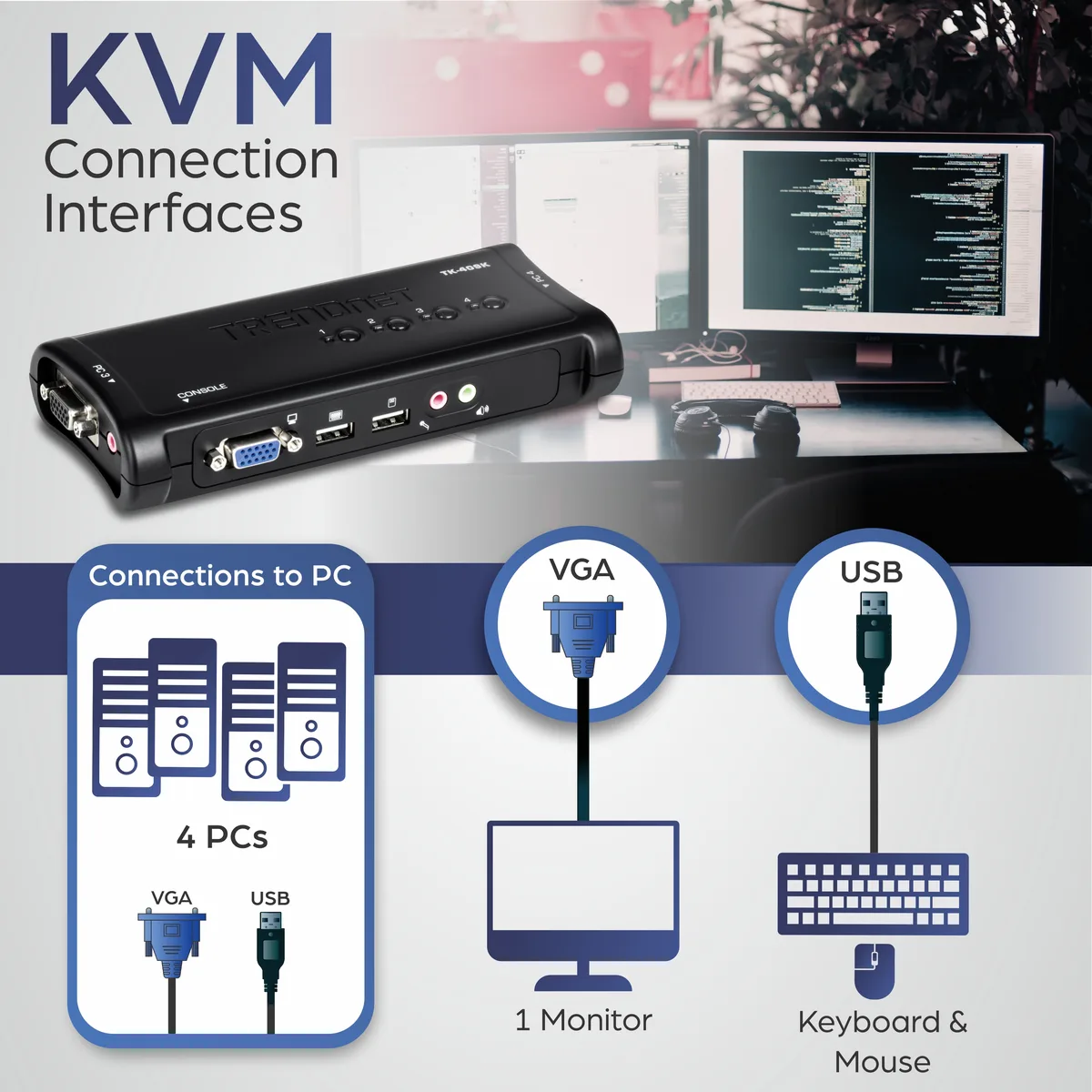

TypeD-Sub, USB
PC Connectors4 x USB/SVGA HDB 15-pin (female)
Console Connectors2 x USB keyboard/mouse (type A)
1 x VGA/SVGA 15-pin HDB (female)
Computer Connections4 Ports
Monitor Connections1 Port
Video Resolution2048 x 1536
PC SelectionPush Button, Hot-Key Commands or Windows-Based Client Switching Software
AutoScan Interval10 seconds
Temperature0ºC to 40ºC(32ºF to 104ºF)
Humidity0% to 90%,Non-Condensing
Power FeaturesUSB Interface Power
FeaturesManage up to 4 computers/servers with one set of console devices.
USB keyboard/mouse emulation with 4 sets of detachable KVM cables.
Compliant with Windows, Linux, and Mac OS.
High video quality, up to 2048 x 1536 VGA resolution.
Auto-Scan and LED display for computer monitoring.
Keyboard status restored when switching between computers.
Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software.
User definable hot key (Windows only).
Plug & Play and hot-pluggable.
USB interface power method.
Dimensions6.6" x 3.2" x 1.1"
Weight5.6 oz.
Package ContentsTK-407K
Quick Installation Guide
2 sets of USB KVM Cables (2 x 1.2m/4ft., 2 x 1.8m/6ft.)
2 sets of USB KVM Cables (2 x 1.2m/4ft., 2 x 1.8m/6ft.)
Shipping weight1.05 kg
Package size206 × 178 × 140 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What resolution will I actually see on my monitor with the 2048 x 1536 rating?

The switch passes VGA signals up to 2048 x 1536, so your display will show that resolution provided the connected computers and monitor also support it.

How does the USB interface limit the switching speed or peripheral support?

USB keyboard and mouse emulation keeps input responsive during switching, while the USB-powered design means no external adapter is needed; switching is instant via push-button, hot-keys or the Windows client software.

What desk space and cabling do I need to fit the 6.6 x 3.2 x 1.1 inch unit?

The switch measures 6.6 by 3.2 by 1.1 inches and weighs 5.6 oz; four detachable KVM cables (two 1.2 m and two 1.8 m) are included, so allow room for those runs to each computer.
