Small white rectangular KVM switch with front push button and rear VGA USB ports

TRENDnet

TRENDnet TK-207K 2-Port USB KVM Switch

SKU CH-FBA8-AE51M MPN TK-207K

Control two computers with one keyboard, monitor and mouse using push-button, hot-key or software switching at up to 2048 x 1536 resolution

  • TypeD-Sub, USB
  • PC Connectors1 x USB (Type A) 1 x VGA/SVGA HDB 15-Pin (male)
  • Console Connectors2 x USB Keyboard/Mouse: (Type A) 1 x VGA/SVGA 15-pin HDB
  • Computer Connections2 Ports
  • Monitor Connections1 Port
  • Video Resolution2048 x 1536

Computer Connections 2 Ports

  • Control two PCs with one keyboard, monitor and mouse
  • Switch instantly via push button, hot-keys or software client
  • Auto-scan cycles every 10 seconds with audible confirmation
  • Bus-powered through USB cables — no external adapter needed
  • Supports crisp 2048 x 1536 VGA or SVGA video resolution

Two-Port USB KVM Switch for Dual-PC Control

The TRENDnet TK-207K lets a single keyboard, monitor and mouse manage two computers. It includes two detachable KVM cable sets so both systems can be connected immediately. The switch draws power from the USB interfaces, so no external adapter is needed. It works with Windows and Linux without driver installation.

Push-Button, Hot-Key or Software Switching

Select the active computer with the front-panel button, keyboard hot-keys or the supplied Windows switching utility. An auto-scan mode cycles every 10 seconds with audible feedback for each change. USB keyboard and mouse emulation keeps input recognised during transitions. Hot-pluggable cables allow connections to be changed without rebooting either PC.

VGA Video Limited to 2048 x 1536 Resolution

The single console video port supports VGA or SVGA monitors up to 2048 x 1536. Higher resolutions or digital interfaces such as DVI or HDMI are not supported. USB connectivity follows the 1.1 specification, so high-speed peripherals will fall back to lower bandwidth. Operating temperature range is 0 °C to 40 °C with humidity up to 90 % non-condensing.

Highlights

  • Control two PCs with one keyboard, monitor and mouse
  • Switch instantly via push button, hot-keys or software client
  • Auto-scan cycles every 10 seconds with audible confirmation
  • Bus-powered through USB cables — no external adapter needed
  • Supports crisp 2048 x 1536 VGA or SVGA video resolution

Specifications

BrandTRENDnet
ModelTK-207K
TypeD-Sub, USB
PC Connectors1 x USB (Type A)
1 x VGA/SVGA HDB 15-Pin (male)
Console Connectors2 x USB Keyboard/Mouse: (Type A)
1 x VGA/SVGA 15-pin HDB
Computer Connections2 Ports
Monitor Connections1 Port
Video Resolution2048 x 1536
PC SelectionPush Button, Hot-Key Commands or Windows-Based Client Switching Software
AutoScan Interval10 seconds
Monitors SupportedVGA or SVGA compatible monitor
Temperature0ºC to 40ºC(32ºF to 104ºF)
Humidity0% to 90%,Non-Condensing
Power FeaturesUSB Interface Power
USB FeaturesUSB port only
FeaturesUse one keyboard, monitor, and mouse to control two computers
USB Keyboard/Mouse emulation with 2-set of detachable KVM Cables
Supports Microsoft Intellimouse, Optical Mouse, Logitech Net Mouse and more
Supports Windows 98/98SE/ME/2000/XP/2003 Server, Linux, and Mac OS
Multi-Platform support for PCs, Macintosh G3/G4, iMac and Mac Mini
Hot-Plug pluggable. Adds PC or removes the connected PCs for maintenance without powering down the KVM Switch or other PC's
Switches PC by hot-keys, push button or windows-base client switch software
Auto-Scan & LED display for easy status monitoring
Us
Dimensions3.90" x 2.80" x 1.10"
Weight0.22 lb.

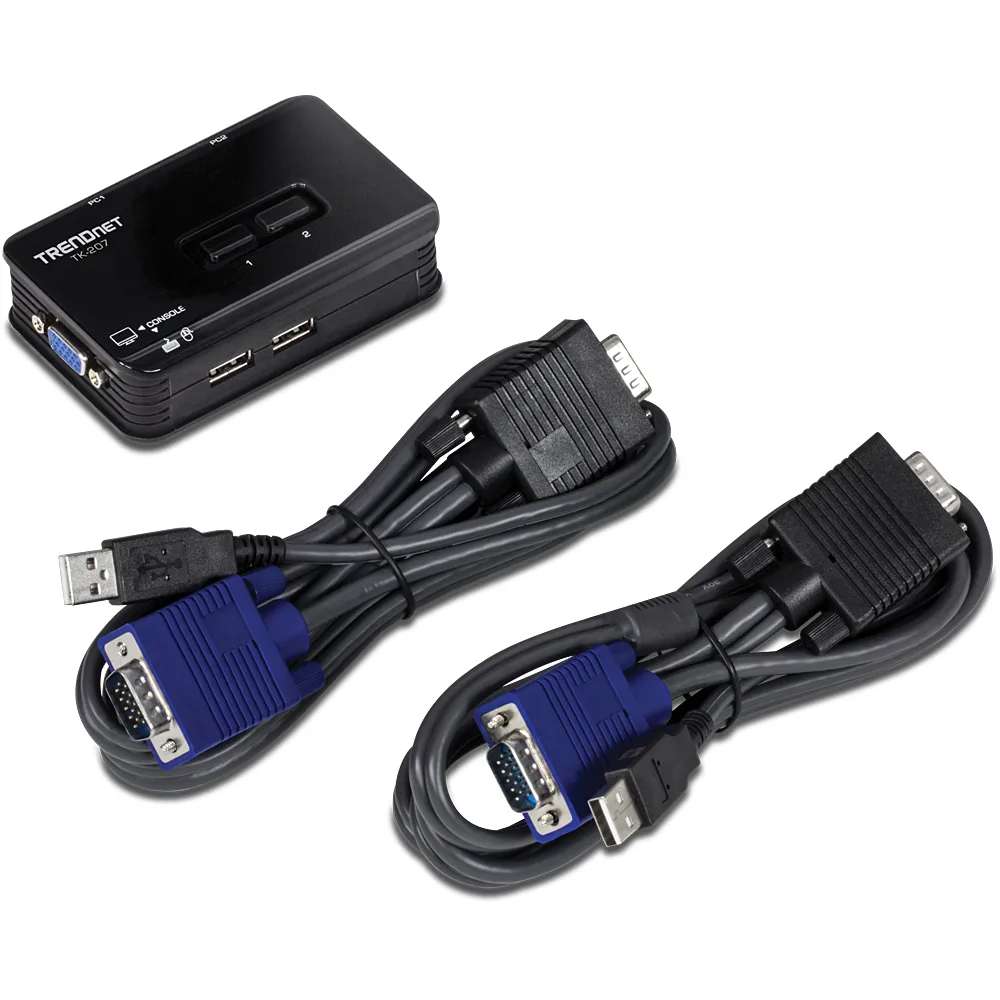

Package ContentsTK-207K 2-Port USB KVM Switch
User's guide
Utility CD-ROM
2 sets of USB KVM cables
Shipping weight0.60 kg
Package size226 × 132 × 89 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the TK-207K is switching correctly between the two connected PCs after setup?

Press the front-panel button or use a hot-key sequence; the active-port LED changes and an audible beep sounds each time the switch toggles to the other computer.

What cables and accessories are included with the TK-207K and what must I provide separately?

The box contains the switch, a user guide, a utility CD-ROM, and two detachable USB KVM cable sets that carry video, keyboard, mouse and power; you only need to supply a VGA-compatible monitor, a USB keyboard and a USB mouse.

The TK-207K is a single 2-port model — how do I decide if this capacity fits my needs?

Choose this unit when you need to control exactly two computers from one keyboard, monitor and mouse; it supports up to 2048 x 1536 resolution and requires no external power adapter.
