A silver metal panel with eight RJ-45 ports and color-coded wiring labels

TRENDnet

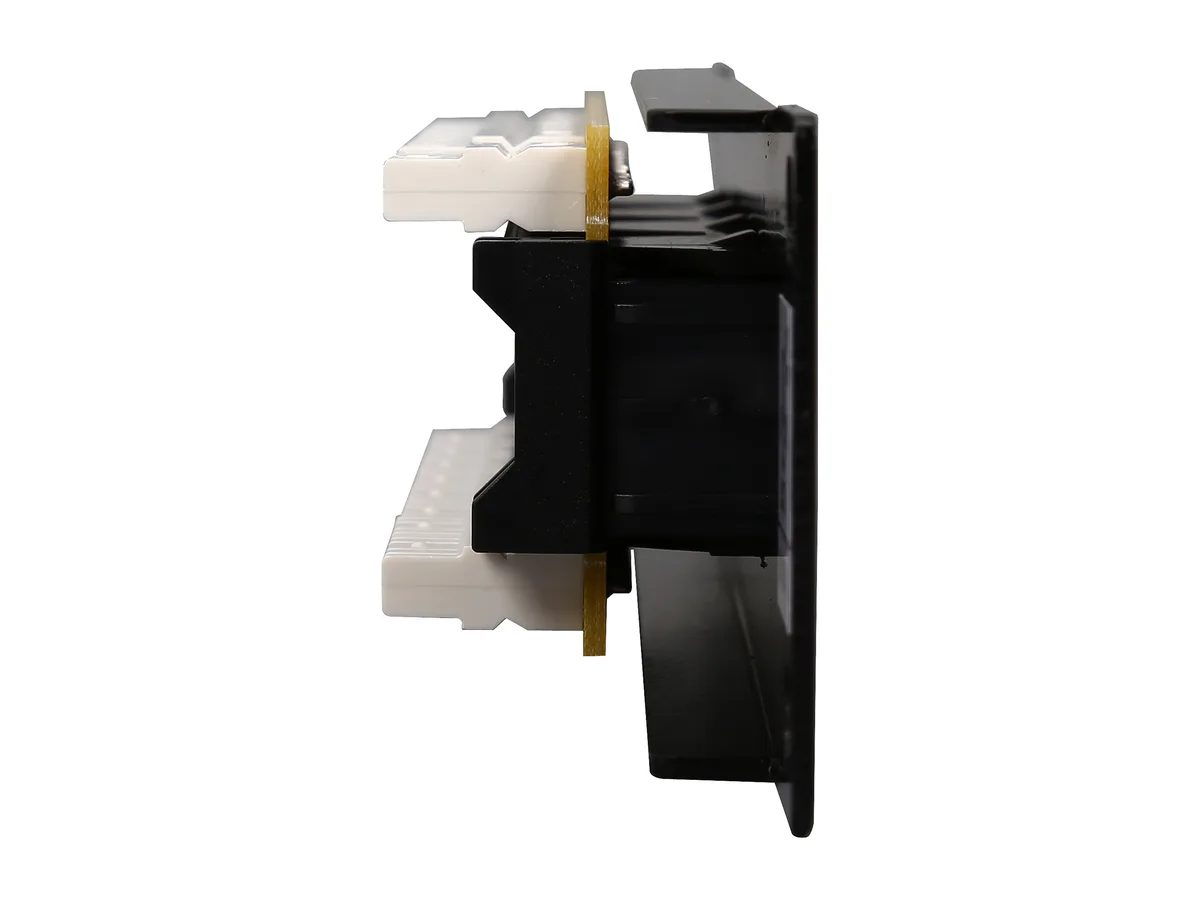

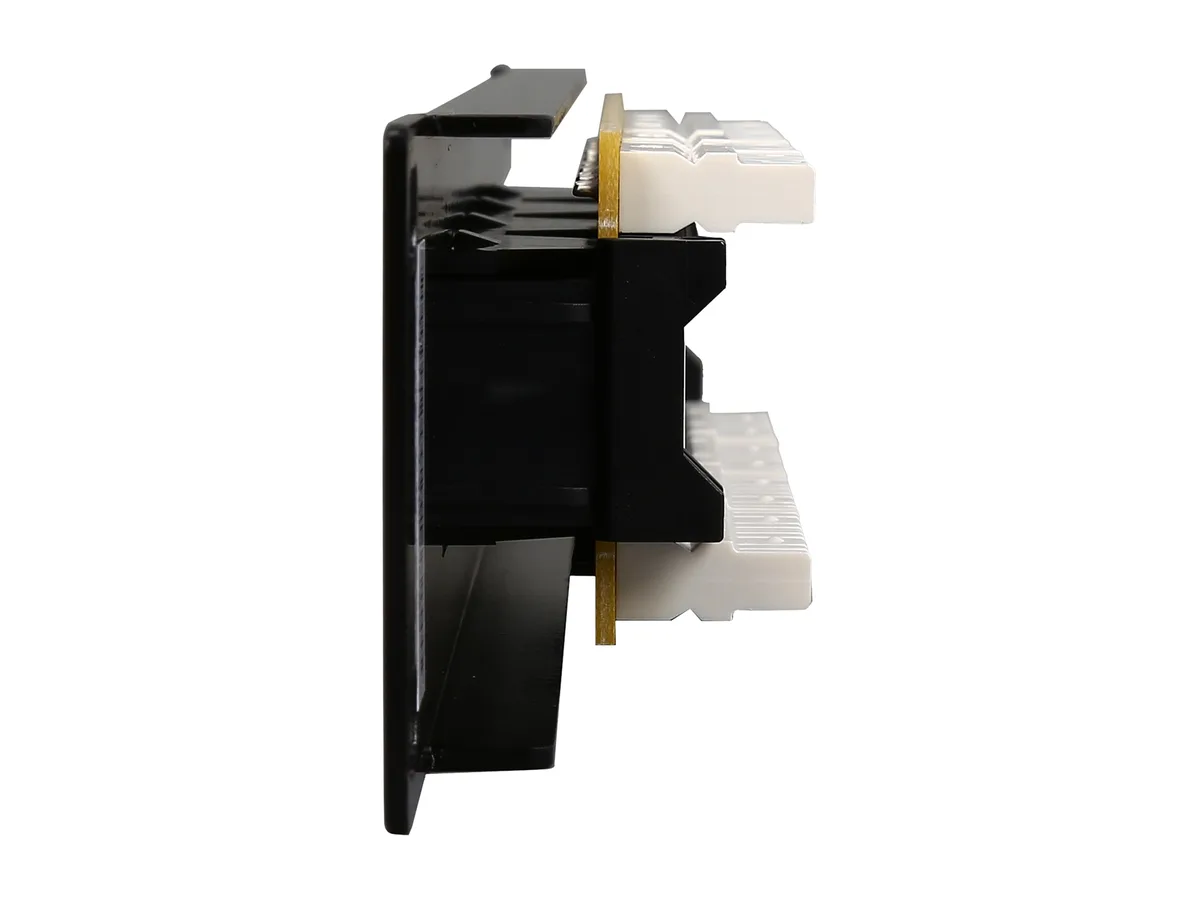

TRENDnet TC-P08C6 8-port Cat 6 unshielded patch panel

SKU CH-WXNQ-52K75 MPN TC-P08C6

Eight-port Cat 6 patch panel with 250 MHz bandwidth, T568A/B color-coded IDC blocks and 10-inch rack-mount width

  • SpecificationsWiring standards T568A & T568B Network Media Cat. 6 Interfac
  • Features8 x 1000Base-T Gigabit RJ-45 ports Supports a 250MHz connect
  • Eight ports ready for Gigabit speeds with 1000Base-T support
  • 250 MHz bandwidth handles demanding Cat 6 network traffic
  • Dual T568A and T568B color coding simplifies wiring installation
  • IDC blocks accept both 110 and Krone style connectors
  • Mounting points rated to 7.7 kg retention strength

TRENDnet 8-Port Cat 6 Patch Panel

The TRENDnet TC-P08C6 is an 8-port Cat 6 unshielded patch panel designed for structured cabling in network installations. It provides eight RJ-45 ports that support 1000Base-T Gigabit speeds and a 250MHz connection. The panel follows T568A and T568B wiring standards with colour-coded labelling for each scheme. IDC terminal blocks accept 110 and Krone style connectors for reliable termination.

Installers terminating Cat 6 horizontal runs

This panel suits installers and network technicians terminating Cat 6 horizontal cable runs in a rack or wall-mount bracket. It is built for environments requiring Cat 6 transmission performance compliant with ANSI, TIA and EIA 568 B.2 standards. Buyers needing shielded connectivity or higher port density should look at alternative panels. It is not intended for direct device connection without a structured cabling infrastructure.

10-inch rack mount with included cable management

The unit measures 254 by 44 by 30 millimetres and weighs 205 grams, fitting a standard 10-inch wide mounting footprint. Mounting points offer a retention strength of 7.7 kilograms. Nylon cable ties and holders are included to organise incoming cables. Labels above each port simplify identification during moves, adds and changes. Operating temperature ranges from -10°C to 60°C. CE and FCC certifications are listed.

Highlights

  • Eight ports ready for Gigabit speeds with 1000Base-T support
  • 250 MHz bandwidth handles demanding Cat 6 network traffic
  • Dual T568A and T568B color coding simplifies wiring installation
  • IDC blocks accept both 110 and Krone style connectors
  • Mounting points rated to 7.7 kg retention strength

Specifications

BrandTRENDnet
ModelTC-P08C6
SpecificationsWiring standards T568A & T568B
Network Media Cat. 6
Interfaces/Ports: 8 x RJ-45 Network
Mounting Point Retention Strength 7.7 kg (17 lbs.)
Dimension (L x W x H) 254 x 44 x 30 mm (10 x 1.7 x 1.2 in.)
Weight 205 g (7.2 oz)
Temperature -10° ~ 60°C (14°F ~ 140°F)
Certifications CE, FCC
Features8 x 1000Base-T Gigabit RJ-45 ports
Supports a 250MHz connection
10 inch wide patch panel
Cat. 6 color coded labeling for T568A and T568B wiring schemes
IDC terminal blocks are compatible with 110 and Krone style connectors
Labels above each port
Cat. 6 transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards

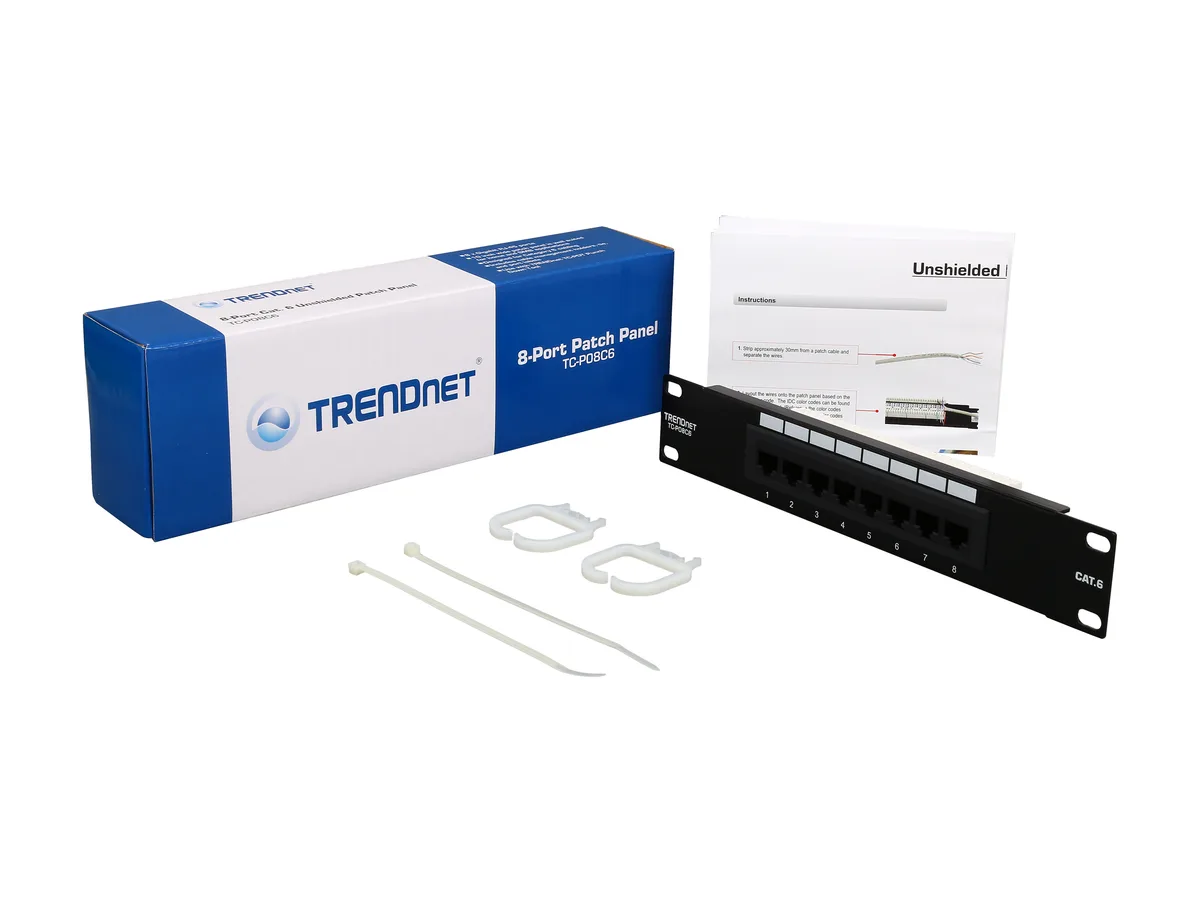

Nylon cable ties and holders included
Shipping weight0.34 kg
Package size295 × 84 × 53 mm

Questions about this item

What mounting hardware do I need to secure the 10-inch wide patch panel in a standard rack?

The panel fits a 10-inch rack space and its mounting points withstand 7.7 kg of retention force; you supply the rack screws or cage nuts.

Will the IDC blocks accept the solid-core Cat 5e cables I already have punched down on 110 blocks?

Yes, the IDC terminals are compatible with both 110 and Krone style connectors, so existing Cat 5e solid conductors can be re-terminated.

How can I verify each port is delivering the rated 250 MHz Cat 6 performance after installation?

Use a Cat 6 qualified cable certifier to test each link for 250 MHz bandwidth, insertion loss, and crosstalk per TIA/EIA 568 B.2.
