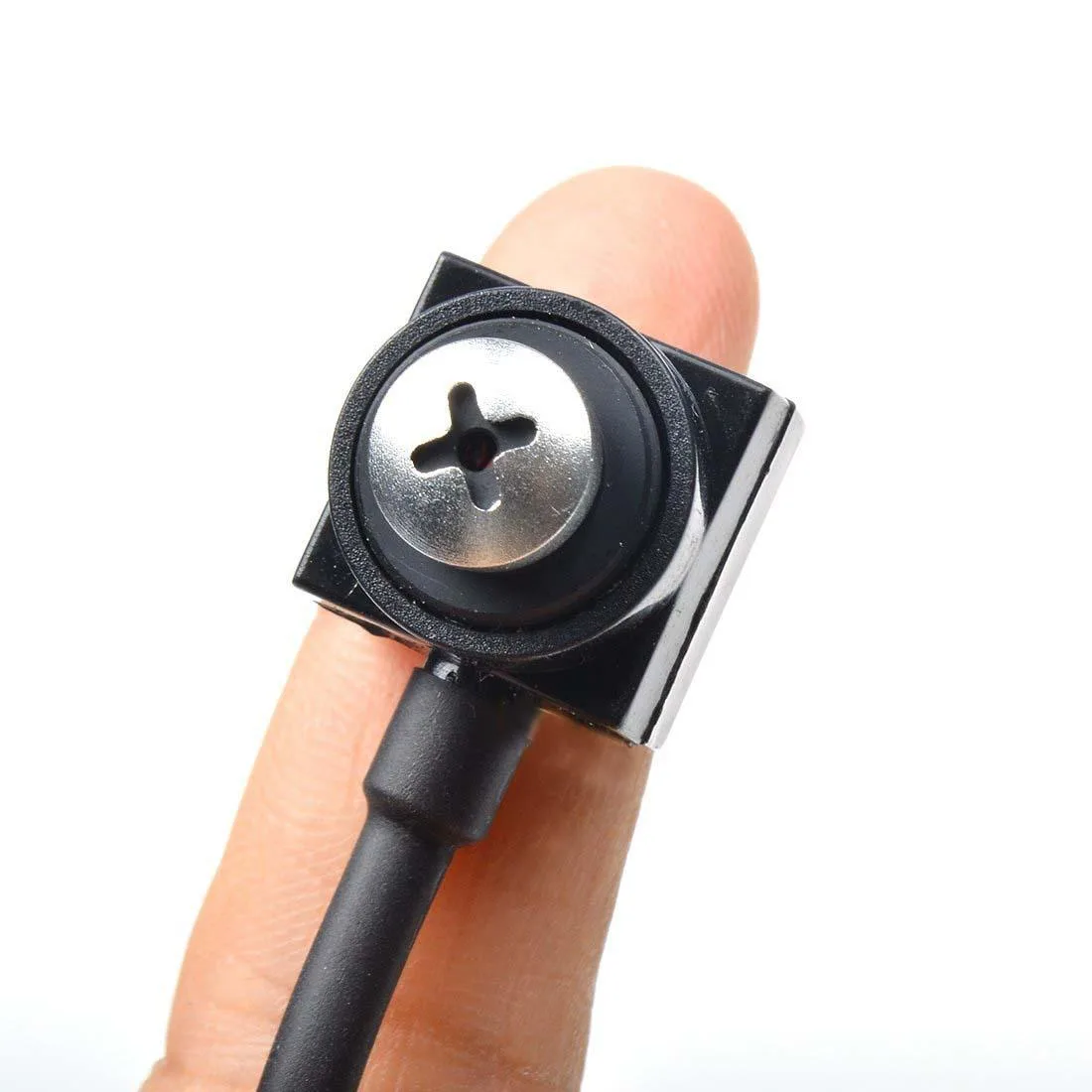

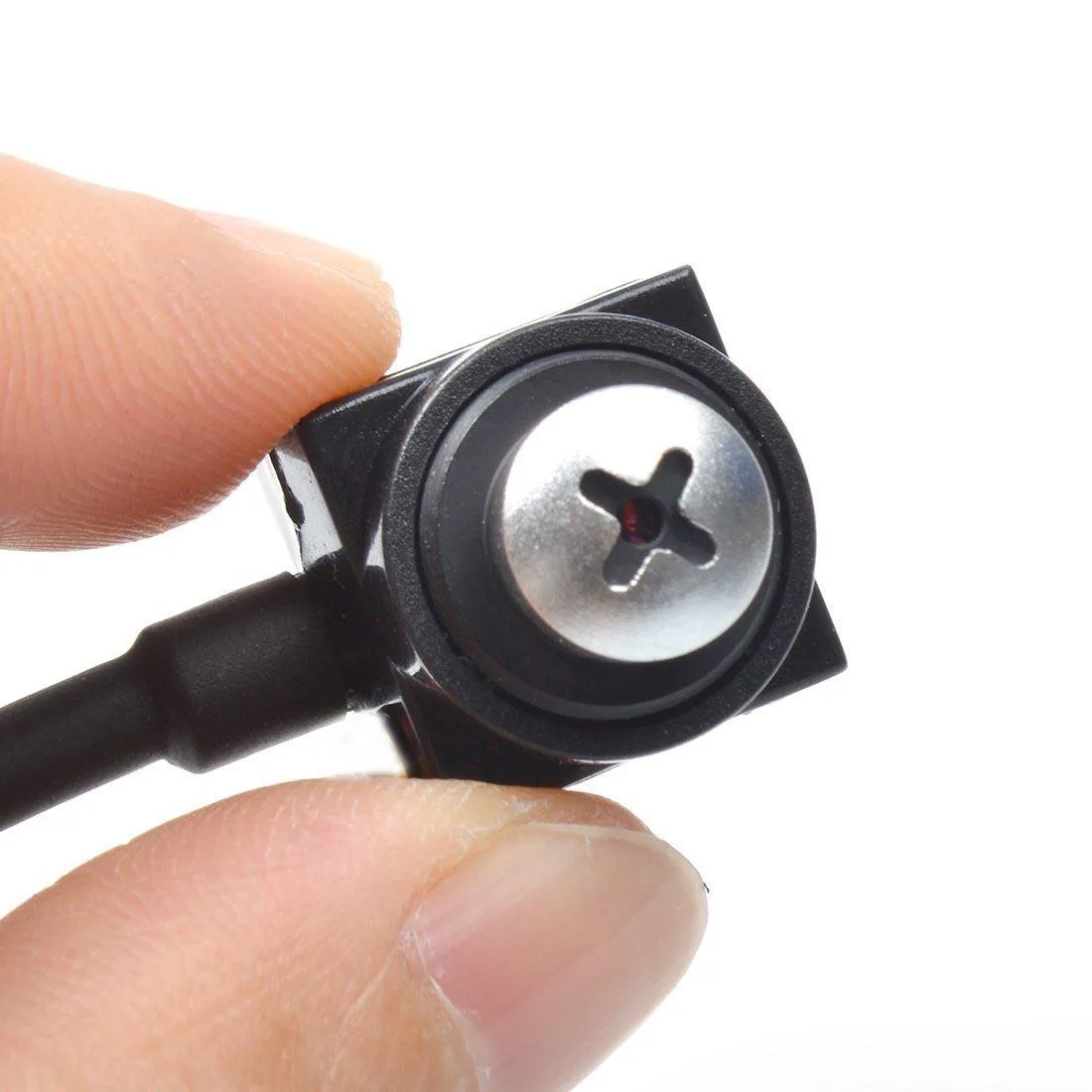

Small black and silver wired mini camera with pinhole lens and BNC connection

TPEKKA

TPEKKA Wired Mini CCTV Camera 800TVL 720P 3.7mm Lens DC 5V

SKU CH-G06Y-EEYWR

A compact wired mini camera captures 800TVL 720P video through a 3.7mm pinhole lens for indoor security or FPV use

  • Colorblack and sliver
  • Network CameraNo
  • Camera Type1MP Indoor
  • TypeMini Camera
  • Contains Embedded BatteryNo
  • Connection TypeBNC
  • Crisp 800TVL images from 1/3" CMOS sensor
  • 720P HD resolution at 15fps for smooth video
  • Compact mini design with 3.7mm pinhole lens
  • Wired BNC connection ensures stable, interference-free signal
  • Includes RCA converter, 39-inch power adapter and manual

Indoor surveillance camera

The TPEKKA wired mini CCTV camera is a compact analogue device built for indoor monitoring. It connects through a BNC interface with an included RCA converter and draws power from a supplied DC 5V adapter. The small form factor suits discreet placement in homes or small business premises where a permanent wired installation is practical.

Thermals noise and power

Passive operation with no internal fan means silent running and negligible heat output during continuous use. The camera draws low current from the 5V supply, so power consumption remains minimal on a standard DVR circuit. A 39-inch power cable is provided for flexible routing near the monitoring station.

Deciding specification

The 3.7mm pinhole lens delivers a fixed 90-degree field of view at 800TVL horizontal resolution with a maximum digital output of 1280 x 720 at 15fps. Minimum illumination is rated at 0.5LUX with a signal-to-noise ratio above 48dB. Buyers who need varifocal zoom, wider coverage or network streaming should consider other form factors.

Highlights

  • Crisp 800TVL images from 1/3" CMOS sensor
  • 720P HD resolution at 15fps for smooth video
  • Compact mini design with 3.7mm pinhole lens
  • Wired BNC connection ensures stable, interference-free signal
  • Includes RCA converter, 39-inch power adapter and manual

Specifications

Colorblack and sliver
Network CameraNo
Camera Type1MP Indoor
TypeMini Camera
Contains Embedded BatteryNo
Connection TypeBNC
Sensor & DetectorCMOS
HD Resolution720P
MAX Resolution1280 x 720
Video Capture ResolutionNTSC: 510 x 492, PAL: 500 x 582
Frame Rate15fps
PowerDC 5V
Featuresmini size
Package Contents1 x Mini Camera,
1 x RCA to BNC Converter,
1 x Adapter (DC 5V),
1 x User Manual

Questions about this item

How do I connect the BNC camera to a DVR using the included RCA converter and 39-inch power adapter?

Plug the camera BNC jack into the converter BNC socket, push the converter RCA plug into the DVR video input, then connect the DC 5V adapter barrel to the camera power lead; the 39-inch cable reaches nearby outlets.

What component will need replacement first if the camera runs continuously indoors?

The DC 5V power adapter is the only external component subject to wear; the camera itself has no battery or moving parts.

At what light level does the 1/3" PH1099 sensor stop producing usable colour video?

The sensor rated minimum illumination is 0.5 LUX; below that the image will lose colour detail and signal-to-noise drops under 48 dB.
