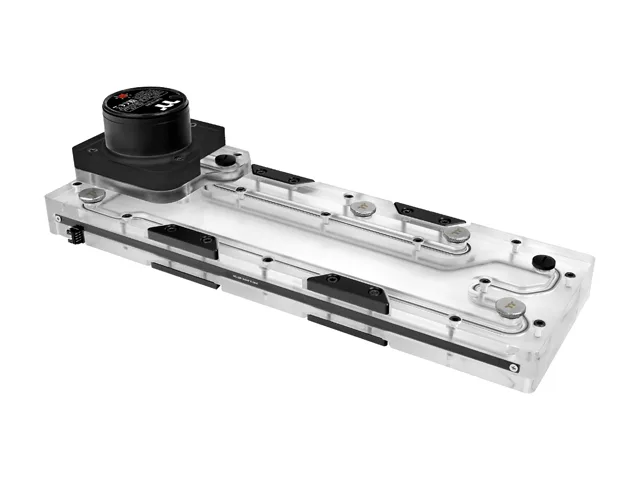

Rectangular clear acrylic block with integrated pump and 18 RGB LEDs, 360 by 120 by 84.8 millimetres

Thermaltake

Thermaltake Pacific DP100-D5 Plus Distro Plate Pump Combo 200ml 360mm 18 LED CL-W263-PL00SW-A

SKU CH-R2XZ-A0QYN MPN CL-W263-PL00SW-A

A 360 mm distribution plate with integrated D5 pump, 200 ml reservoir and 18 addressable RGB LEDs controllable via motherboard software

  • TypeDistro-Plate with Pump Combo
  • Pump Dim.360 (L) x 120 (W) x 84.8 (H) mm
  • Reservoir Capacity200 ml
  • SpecificationDimension: 360mm(L) x 120mm (W) x 84.8mm (H) Material: PMMA
  • FeaturesPacific DP100-D5 Plus The Thermaltake Pacific DP100-D5 Plus
  • Package ContentsPR22-DDC Reservoir + Pump Combo Mounting Brackets with Pads
  • All-in-one distro plate and D5 pump simplifies loop assembly
  • 18 addressable LEDs sync with TT RGB Plus and motherboard software
  • 5-speed adjustable pump runs at 1800 to 4800 RPM
  • 200 ml reservoir capacity with 18 mm thick PMMA acrylic
  • Fits most chassis supporting dual 360 mm radiator mounts

All-in-One Distro Plate Pump

The Thermaltake Pacific DP100-D5 Plus combines a distribution plate with a pre-installed D5 pump in a single unit. It fits most 360mm radiator mounting points and requires a chassis that supports two or more 360mm radiators for installation. The reservoir holds 200ml of coolant within 18mm thick PMMA acrylic.

Builders Who Want Integrated RGB

This unit suits builders who want a streamlined loop with 18 individually addressable LEDs controllable via TT RGB PLUS or 5V motherboard software. It is not for cases limited to a single 360mm radiator slot. Buyers needing a separate pump and reservoir layout should look elsewhere.

Flow Capacity and Pump Headroom

The D5 pump delivers a maximum flow rate of 1135 L/h at 50 pSI pressure head. Five fixed speed settings run at 1800, 2550, 3300, 4050 and 4800 RPM drawing up to 37W. The 200ml reservoir offers limited fluid volume for large multi-radiator loops.

Highlights

  • All-in-one distro plate and D5 pump simplifies loop assembly
  • 18 addressable LEDs sync with TT RGB Plus and motherboard software
  • 5-speed adjustable pump runs at 1800 to 4800 RPM
  • 200 ml reservoir capacity with 18 mm thick PMMA acrylic
  • Fits most chassis supporting dual 360 mm radiator mounts

Specifications

BrandThermaltake
SeriesPacific DP100-D5 Plus Distro-Plate with Pump Combo
ModelCL-W263-PL00SW-A
TypeDistro-Plate with Pump Combo
Pump Dim.360 (L) x 120 (W) x 84.8 (H) mm
Reservoir Capacity200 ml
SpecificationDimension: 360mm(L) x 120mm (W) x 84.8mm (H)
Material: PMMA
Capacity: 200ml
Maximum Flow Rate: 1135 L/h
Maximum Pressure: 50 pSI
Input Voltage: 12V / 5V
Power Input: 37W / 3.5W
Connector: 4-pin Peripheral
Port Thread: G 1/4"
Pump Speeds: 1800 RPM/2550 RPM/3300 RPM/4050 RPM/4800 RPM
FeaturesPacific DP100-D5 Plus
The Thermaltake Pacific DP100-D5 Plus is a D5 pump combo unit that compatible with chassis which can fit 360mm Radiator and can support RGB lighting by TT RGB PLUS software.
Full RGB Illumination Design
The built-in 18 addressable LEDs features great light coverage. The lighting is compatible with TT RGB PLUS and ASUS, GIGABYTE, MSI, and ASROCK RGB software.
Straightforward Installation
Compatible with multiple chassis, easing the process of installation.
Support 360mm radiator pinhole
Vivid RGB Lighting from Every Angle
Controlled by the patented TT RGB PLUS So
Package ContentsPR22-DDC Reservoir + Pump Combo
Mounting Brackets with Pads
(2) Screws/Nuts for Pump Base Mounting with velcro pad
(4) Screws/Nuts for Reservoir Bracket Mounting with velcro pad
(1) G1/4 Stop Plug
(4) Zip-ties
(1) Wrench Tool, (1) Allen Tool
User Guide
Shipping weight2.27 kg
Package size417 × 203 × 112 mm

Questions about this item

My case only fits a single 360 mm radiator — will this 360 mm long distro plate still install?

The distro plate requires a chassis that supports two or more 360 mm radiators of space, so a single-radiator case will not provide enough clearance.

I plan to keep my older 12 V RGB header — can the 18 addressable LEDs sync with it?

The 18 LEDs support 5 V motherboard RGB synchronization only; a 12 V header will not work for addressable control.

After fitting the unit, how can I verify the D5 pump is running at the chosen 4800 RPM setting?

The pump offers five fixed speeds including 4800 RPM; confirm operation by checking flow through the 200 ml reservoir or monitoring RPM via your motherboard fan header.
