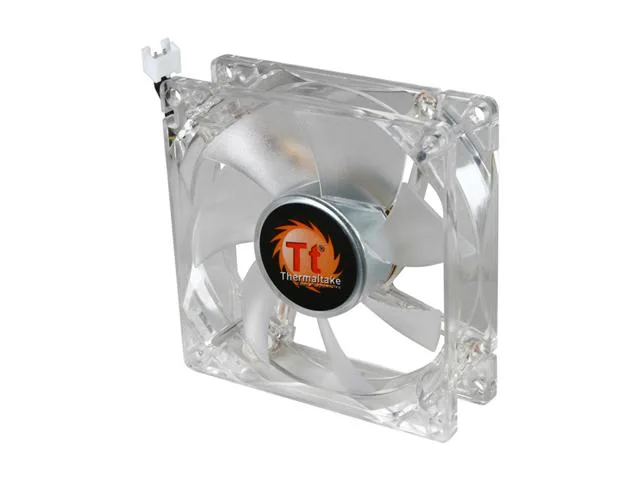

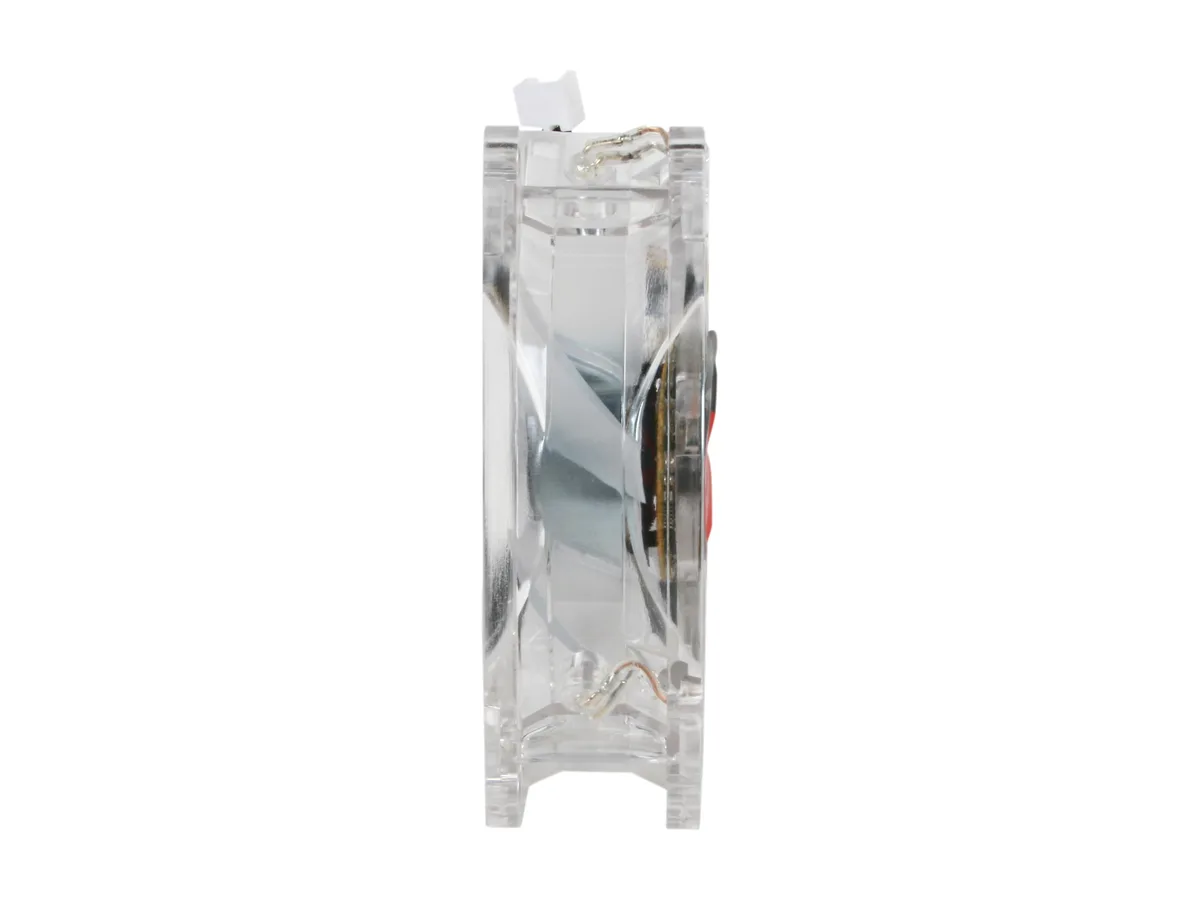

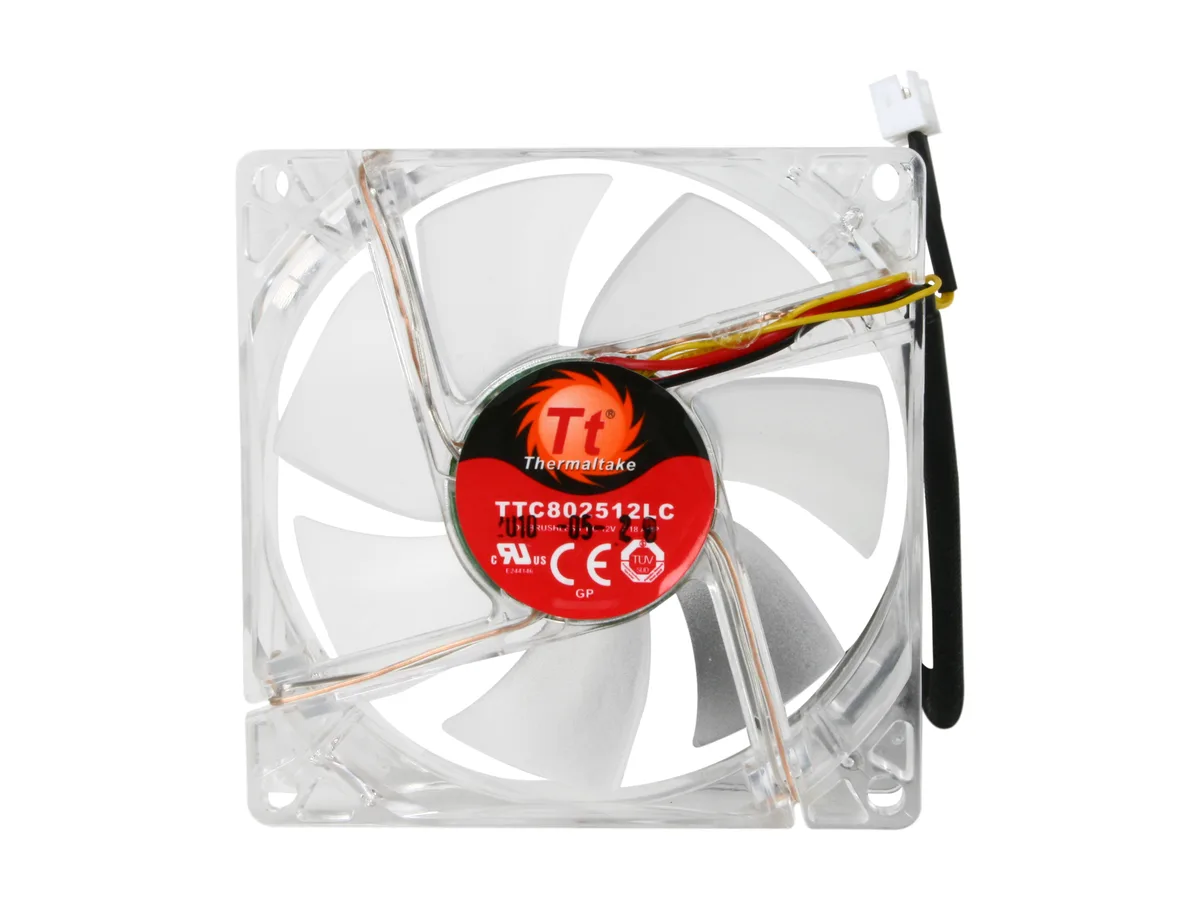

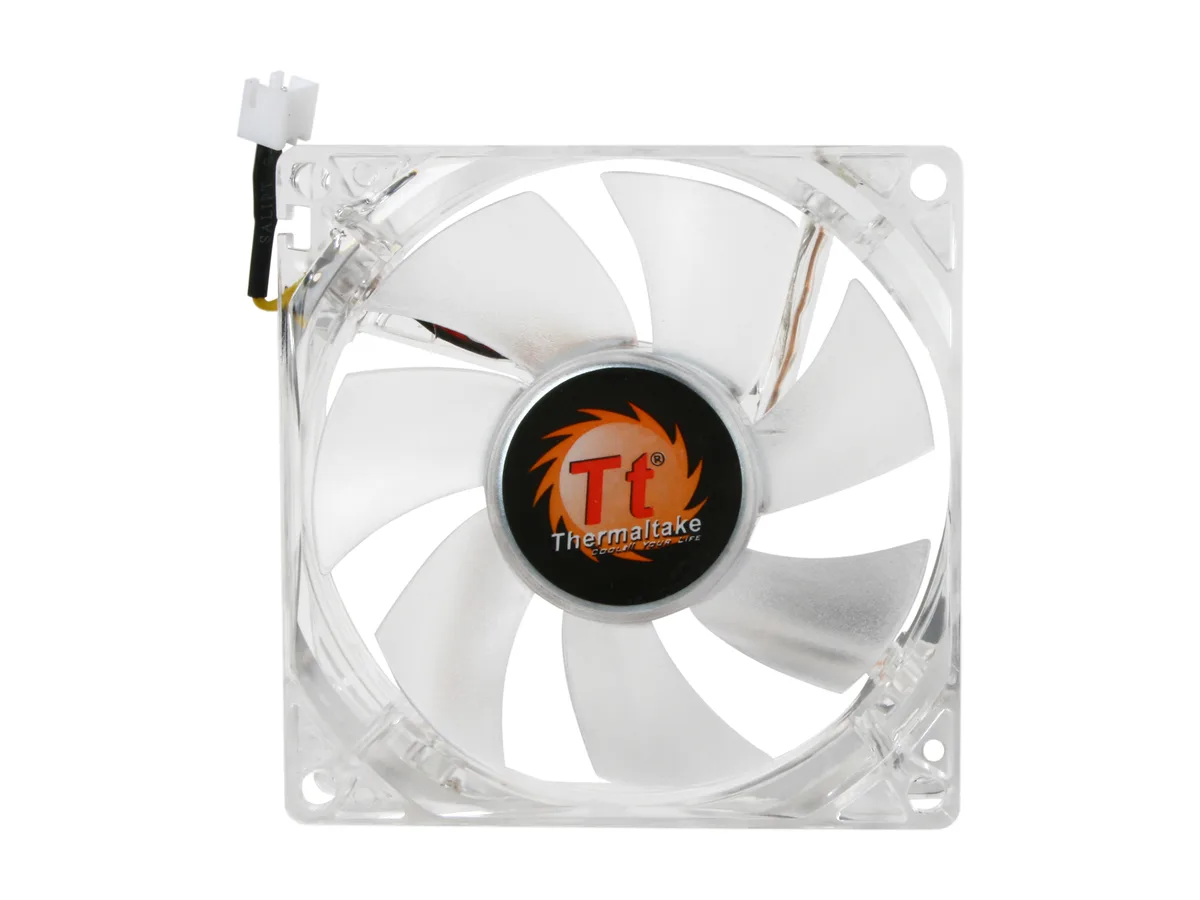

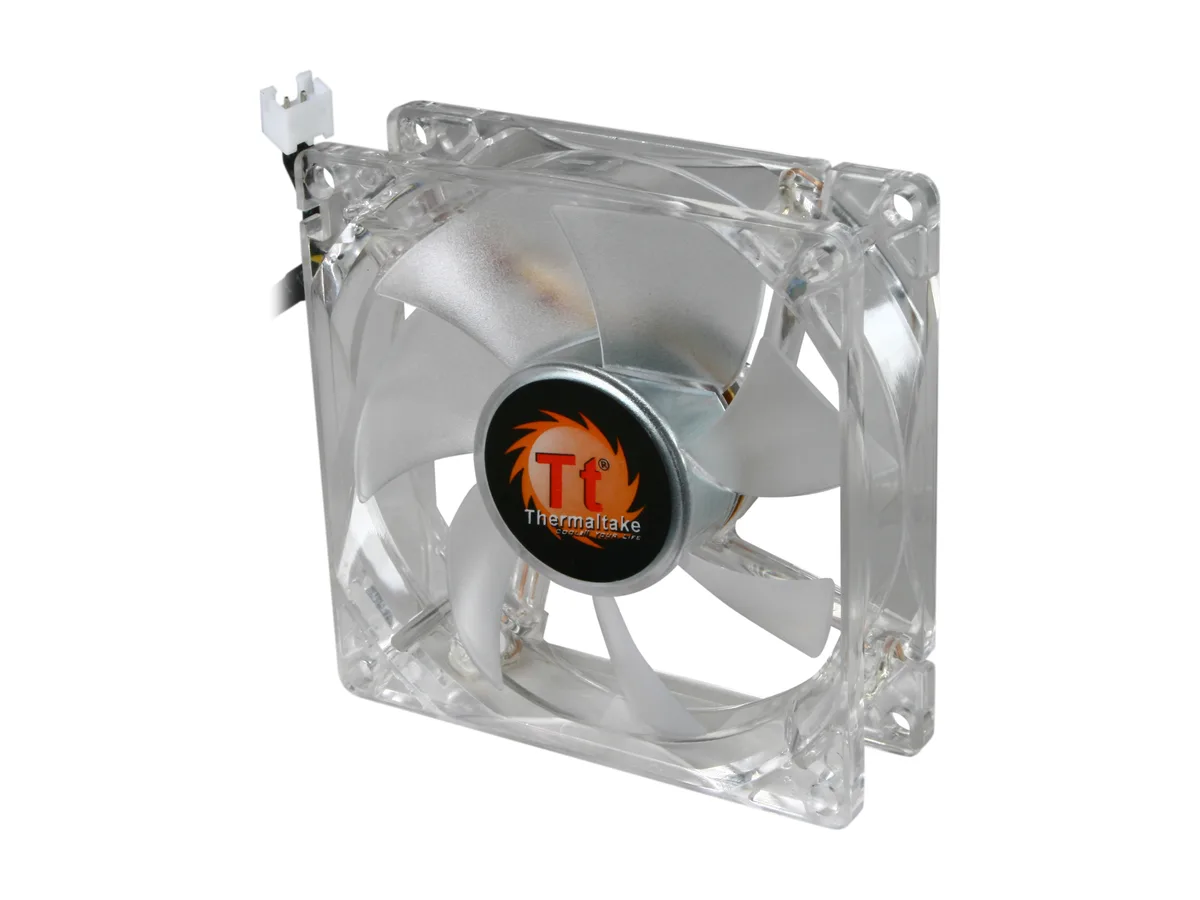

Square 80mm transparent fan frame with blue LED ring and attached speed control knob

Thermaltake

Thermaltake AF0025 80mm Blue LED Case Fan with Speed Control Knob

SKU CH-S2D6-0WCPC MPN AF0025

An 80 mm case fan with blue LEDs, a speed-control knob and 1,300-2,500 RPM airflow up to 32.92 CFM at 17.0-28.0 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size80mm
  • Fan Thickness25mm
  • Adjustable speed via built-in knob for tailored cooling
  • Blue LED illumination adds visual flair to transparent cases
  • Hybrid ball and sleeve bearing balances durability with quiet operation
  • Airflow reaches 32.92 CFM at 2,500 RPM for effective heat removal
  • Noise stays between 17.0 and 28.0 dBA across the speed range

80mm Blue LED case fan with speed knob

The Thermaltake AF0025 is an 80mm case fan designed for builders who want adjustable airflow and visible blue lighting inside a transparent side panel. It suits compact chassis or secondary intake and exhaust positions where a slim 25mm profile is required.

Check your case mounts and fan header

Verify that your chassis has 80mm mounting holes and that your motherboard or fan hub provides a free 4-pin connector. The fan draws 0.18 A at 12 V, so confirm the header can supply that current. No external controller is included beyond the inline knob.

Fits tight spaces and frees a header for PWM

The 25mm thickness lets the unit sit in narrow channels between drive cages and motherboard trays. A vibration-dampening soft mount is supplied to reduce transmitted noise. The manual speed knob lets you balance 32.92 CFM peak airflow against 17.0–28.0 dBA acoustics without occupying a PWM header.

Highlights

  • Adjustable speed via built-in knob for tailored cooling
  • Blue LED illumination adds visual flair to transparent cases
  • Hybrid ball and sleeve bearing balances durability with quiet operation
  • Airflow reaches 32.92 CFM at 2,500 RPM for effective heat removal
  • Noise stays between 17.0 and 28.0 dBA across the speed range

Specifications

BrandThermaltake
ModelAF0025
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size80mm
Fan Thickness25mm
Bearing Type1 Ball, 1 Sleeve
RPM1,300 - 2,500 RPM
Air FlowMax. Air Flow: 32.92 CFM
Noise Level17.0 - 28.0 dBA
Power Connector4 Pin
ColorTransparent
LEDBlue
FeaturesFan Speed Control: Speed Control Knob
Max. Air Pressure: 2.85 mmH2O
Rated Voltage: 12 V
Started Voltage: <= 9 V
Rated Current: 0.18 A
Power Input: 2.16 W
Weight: 59.2 g
Dimensions80 x 80 x 25 mm
Shipping weight0.09 kg
Package size146 × 95 × 32 mm

Questions about this item

Does the fan come with a speed control knob and vibration-dampening mounts, or must I buy them separately?

The package includes one 80 mm fan, a wired speed control knob, and soft vibration-dampening mounts. No extra accessories are required for installation.

Should I run the fan at 1,300 RPM or 2,500 RPM for my build?

Use the lower end near 1,300 RPM for quieter operation around 17.0 dBA, or turn the knob toward 2,500 RPM when you need the full 32.92 CFM airflow.

What does the 32.92 CFM rating mean once the fan is mounted in my case?

At maximum speed the fan moves 32.92 CFM against 2.85 mmH₂O static pressure, so actual airflow will be slightly lower depending on your case restriction and filter density.
