TGDGAMER DY7 ARGB GPU Support Bracket with Temperature Display 5V 3-pin Black

Adjustable GPU Support Bracket

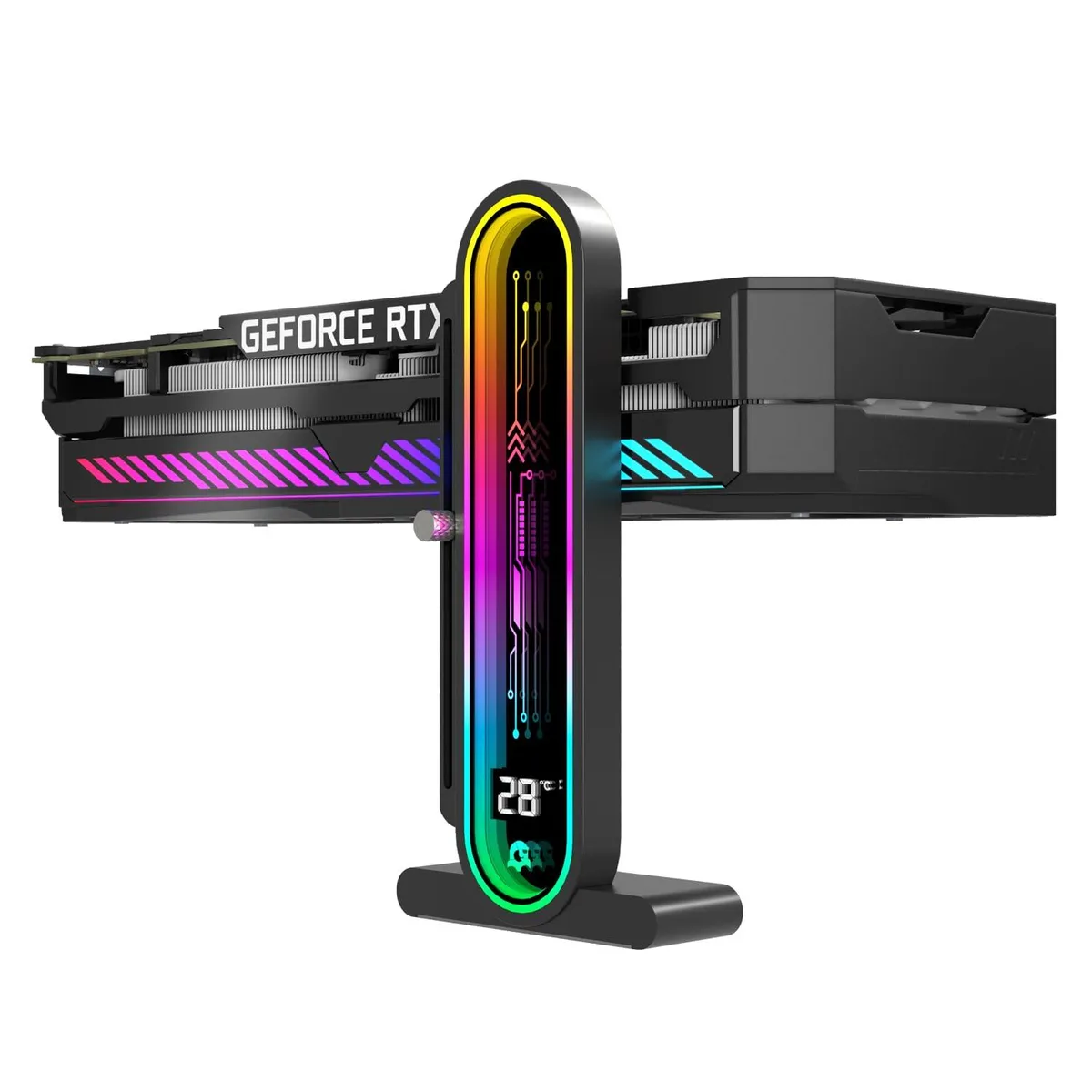

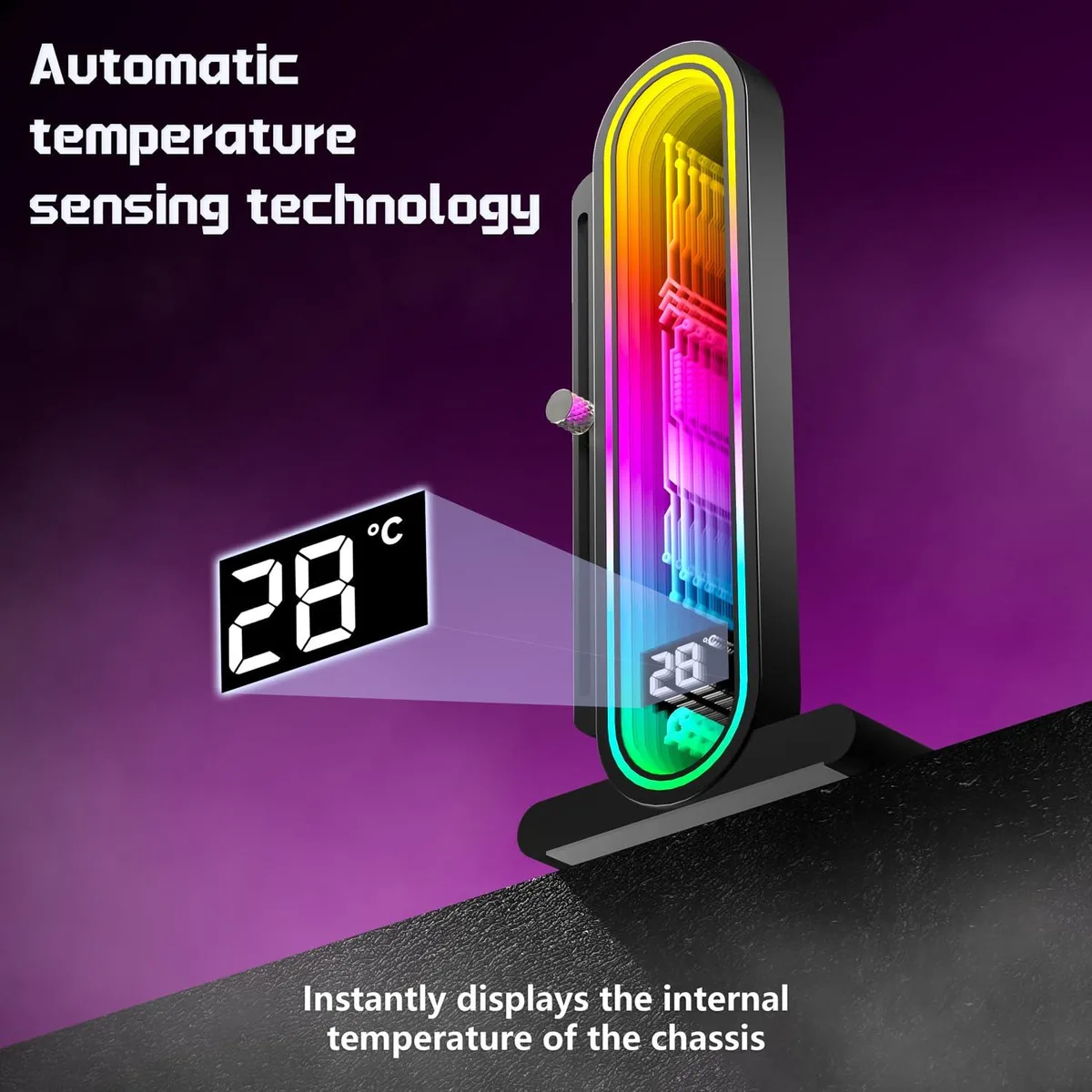

The TGDGAMER DY7 is an ARGB GPU support bracket designed for builders who need to prevent graphics card sag in a variety of chassis. It includes an integrated temperature display that monitors internal case temperature to assist with thermal management. The unit connects via a standard 5V 3-pin ARGB header for lighting control. It is not suited for systems that lack a 5V ARGB header or for builds where the graphics card sits completely flush without clearance for a brace.

Height Range and Magnetic Base Constraints

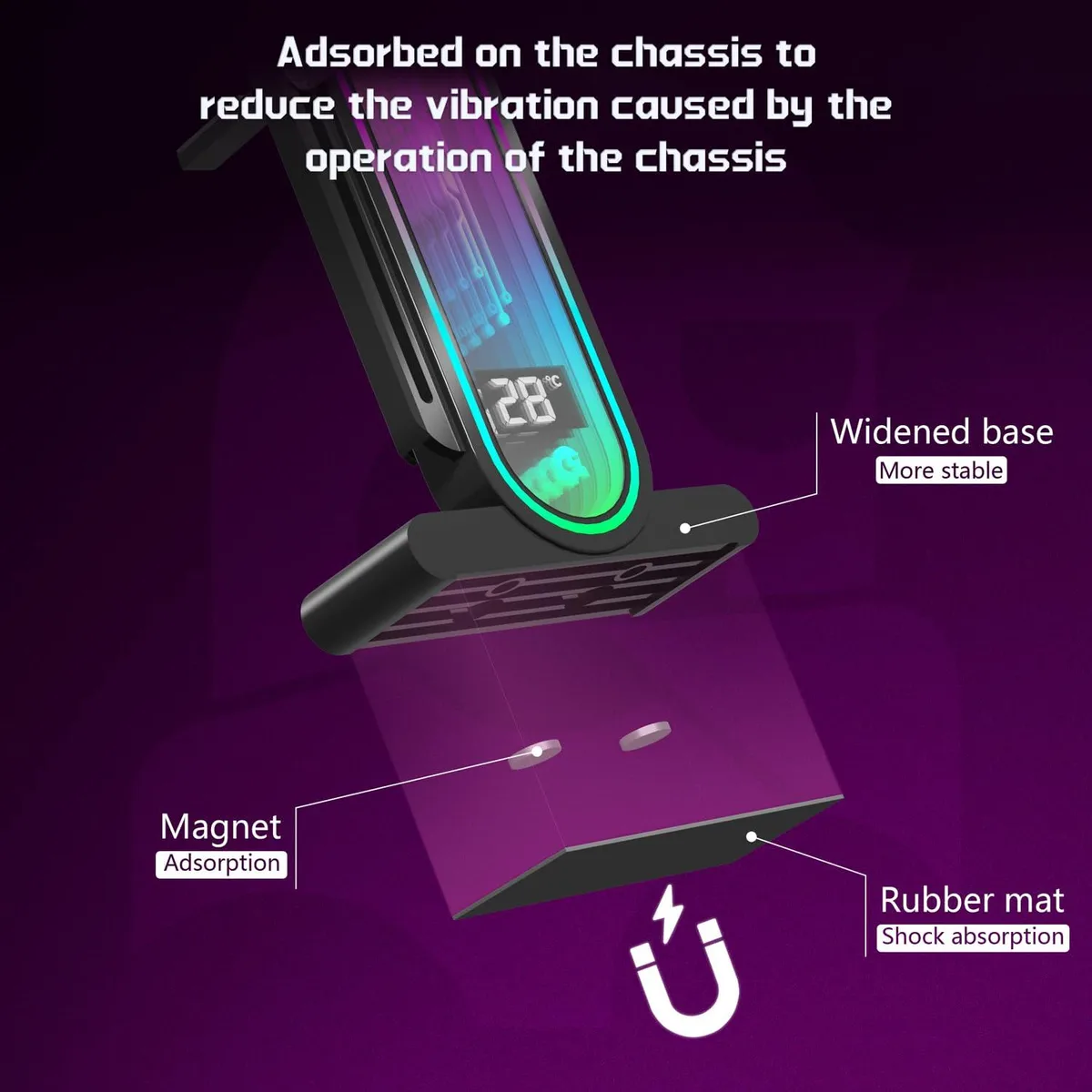

The bracket adjusts from 35 to 157mm, covering most mid-tower and full-tower configurations but limiting use in ultra-compact cases where the gap is smaller than 35mm. Dual recessed magnets with silicone-encapsulated contacts hold the base in place on steel surfaces; they will not adhere to aluminium, tempered glass or non-ferromagnetic panels. The single-layer silicone pad dampens vibration and protects the card backplate from scratches during operation. No mounting hardware for non-magnetic surfaces is included.

Tool-Free Installation and Common Issues

Installation is tool-free: extend the arm to the required height, place the magnetic base on the case floor, and rest the silicone pad against the graphics card backplate. The most frequent issue is insufficient magnetic grip on painted or thin steel panels, which can cause the bracket to shift under heavy cards. Builders also find the 5V 3-pin ARGB cable too short for routing behind large motherboards without an extension. The temperature sensor reads ambient case air only and does not report GPU core temperature.
