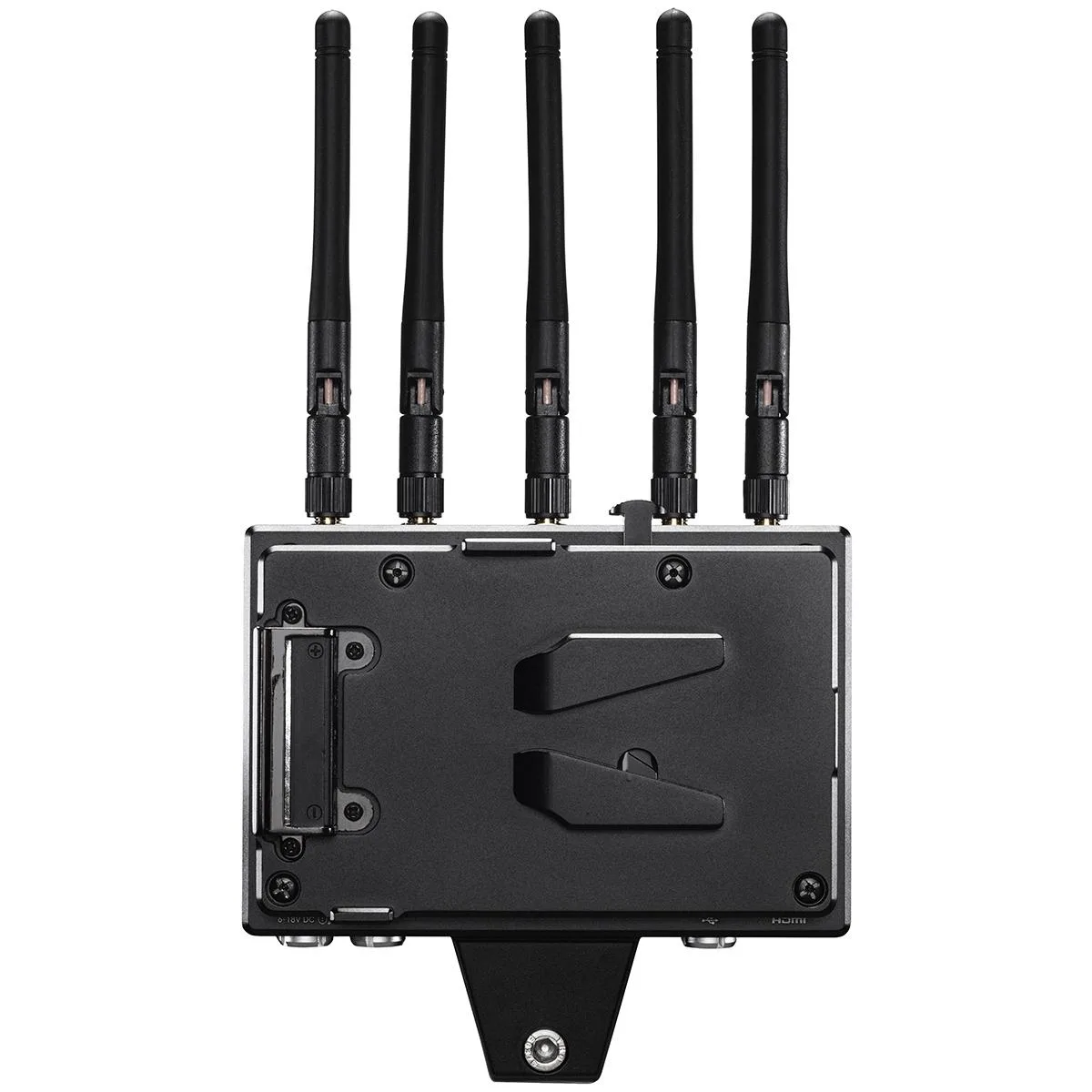

Compact Gold Mount receiver module attaches to back of Cine 7 or 702 Touch monitor

Teradek

Teradek Bolt 4K RX Monitor Module Gold Mount

SKU CH-F9PW-CB09H

Wireless 4K receiver module attaches to SmallHD Cine 7 or 702 Touch monitors via Gold Mount, delivering uncompressed UHD 4K at 30 fps or 1080p at 60 fps with less than .01 ms latency up to 750 ft

  • Uncompressed 4K video preserves every detail on Cine 7 and 702 Touch monitors
  • Ultra-low latency under .01 ms enables real-time focus and camera adjustments
  • Wireless range up to 750 ft line-of-sight gives freedom of movement on set
  • Gold Mount plate powers both receiver and monitor for uninterrupted operation
  • HDMI 2.0 output supports 10-bit 4:2:2 HDR with Rec 2020 color gamut

Bolt 4K RX Monitor Module Gold Mount

The Teradek Bolt 4K RX Monitor Module attaches to SmallHD Cine 7 and 702 Touch monitors via a Gold Mount battery plate. It receives uncompressed wireless video up to 4Kp30 and 1080p60. The module powers both itself and the monitor simultaneously for continuous operation. It is built for camera crews needing real-time monitoring without cables.

Sustained zero-delay reception

Latency stays below 0.01 ms during continuous use, keeping focus pulls and camera moves in sync. The link holds up to 750 ft line-of-sight without frame drops. Gold Mount power delivery prevents shutdowns during long takes. The module maintains 10-bit 4:2:2 HDR colour fidelity across extended shoots.

HDMI 2.0 output ceiling

Video leaves the module through a single HDMI 2.0 port limited to 4K at 30 fps. Higher frame rates or resolutions above 4Kp30 are not supported. Rec.2020 HDR metadata passes through at 10-bit depth. Buyers needing 4Kp60 or dual-link SDI output cannot use this receiver.

Highlights

  • Uncompressed 4K video preserves every detail on Cine 7 and 702 Touch monitors
  • Ultra-low latency under .01 ms enables real-time focus and camera adjustments
  • Wireless range up to 750 ft line-of-sight gives freedom of movement on set
  • Gold Mount plate powers both receiver and monitor for uninterrupted operation
  • HDMI 2.0 output supports 10-bit 4:2:2 HDR with Rec 2020 color gamut

Specifications

No published specifications for this item yet.

Questions about this item

How much power does the Bolt 4K RX Monitor Module draw when running all day on a Gold Mount battery?

The module attaches to the Gold Mount plate on the back of a Cine 7 or 702 Touch and is powered from the same battery that runs the monitor; Teradek does not publish a separate wattage figure for the receiver alone.

What monitor must I already own for this Gold Mount RX module to work?

It is designed exclusively for SmallHD Cine 7 and 702 Touch monitors and bolts directly to their Gold Mount battery plate.

Will the HDMI 2.0 output on this module drive an older 1080p 60 fps recorder I still use?

Yes, the HDMI 2.0 port outputs up to 4Kp30 and also supports 1080p at up to 60fps, so it remains compatible with legacy 1080p60 gear.
