Black rectangular converter box with VGA, S-video and BNC ports

TeKit

TeKit NTRACA0001CH BNC to VGA Audio Video Converter Black

SKU CH-6E87-YE6ZB

Converts BNC, S-Video and VGA sources to a single VGA output up to 1280x1024 at 60/75 Hz with de-interlacing and front-panel switching

  • TypeBNC TO VGA
  • Changer TypeAll-in-One (VGA/DVI/HDMI)
  • ColorBlack
  • SpecificationsVGA/ Video/ S-video to VGA Converter Box Adapter switch for
  • Connector AVGA/ Video/ S-video to VGA Converter Box Adapter switch for
  • Connector BVGA/ Video/ S-video to VGA Converter Box Adapter switch for
  • Converts BNC composite video to VGA for monitor use
  • Switches between composite, S-Video and PC sources with one button
  • Supports resolutions up to 1280x1024 at 60 Hz
  • Deinterlacing processor delivers sharp, stable picture output
  • Pure hardware design requires no drivers or software

TeKit BNC to VGA converter for monitors

This compact box converts Composite BNC, S-Video and VGA sources to a single VGA output for LCD monitors. It suits installers and legacy-system owners who need to view analogue video on a VGA display. The unit weighs 85 g and measures 110 x 56 x 36 mm. It is supplied new and requires no software drivers.

Limits of the analogue video interface

Maximum supported output resolution is 1280 x 1024 at 60 Hz, with additional modes at 1024 x 768 and 800 x 600 at 60 Hz or 75 Hz. Only one source can be active at a time, selected by a front-panel button. The converter draws 5 V at 500 mA from an external supply and processes standard-definition Composite or S-Video signals through a hardware de-interlacer.

Check your monitor and source before ordering

Verify that your display accepts one of the listed VGA timings, as higher resolutions are not supported. Confirm the source provides Composite BNC, S-Video or 15-pin VGA RGB, since HDMI, DVI or Component are not accepted. Ensure a 5 V 500 mA power adapter is available, because the unit has no internal supply.

Highlights

  • Converts BNC composite video to VGA for monitor use
  • Switches between composite, S-Video and PC sources with one button
  • Supports resolutions up to 1280x1024 at 60 Hz
  • Deinterlacing processor delivers sharp, stable picture output
  • Pure hardware design requires no drivers or software

Specifications

BrandTekit
ModelNTRACA0001CH
TypeBNC TO VGA
Changer TypeAll-in-One (VGA/DVI/HDMI)
ColorBlack
SpecificationsVGA/ Video/ S-video to VGA Converter Box Adapter switch for PC LCD Monitor
Connector AVGA/ Video/ S-video to VGA Converter Box Adapter switch for PC LCD Monitor
Connector BVGA/ Video/ S-video to VGA Converter Box Adapter switch for PC LCD Monitor
Connector StyleStandard
FeaturesVGA/ Video/ S-video to VGA Converter Box Adapter switch for PC LCD Monitor
Dimensions110X56X36mm
Weight85g
Output2 Ports
Style4 Port

Questions about this item

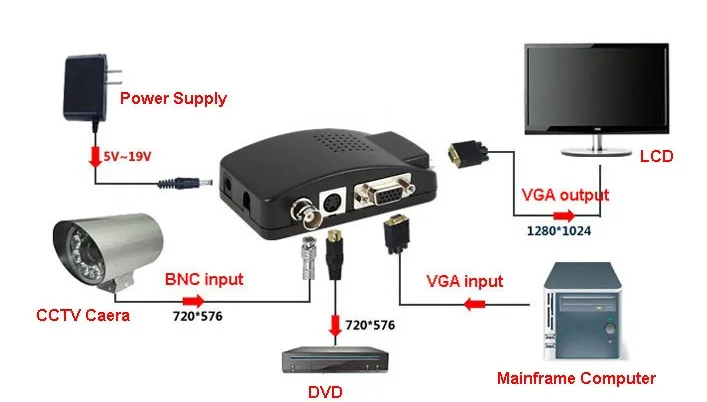

Which input combination should I choose for my CCTV monitor setup?

The box accepts one composite BNC, one S-Video and one 15-pin VGA source, then switches any of the three to the single VGA output with a front button.

What does the 1280×1024 60 Hz rating mean when I connect a DVR?

That is the highest selectable output mode; the scaler will up-convert lower-resolution composite or S-Video signals to a stable 1280×1024 60 Hz VGA picture.

How does the VGA output interface limit the signal chain?

The analogue VGA port caps the chain at the listed discrete resolutions — 800×600 at 60/75 Hz, 1024×768 at 60 Hz, and 1280×1024 at 60 Hz — with no digital HDMI or DVI path.
