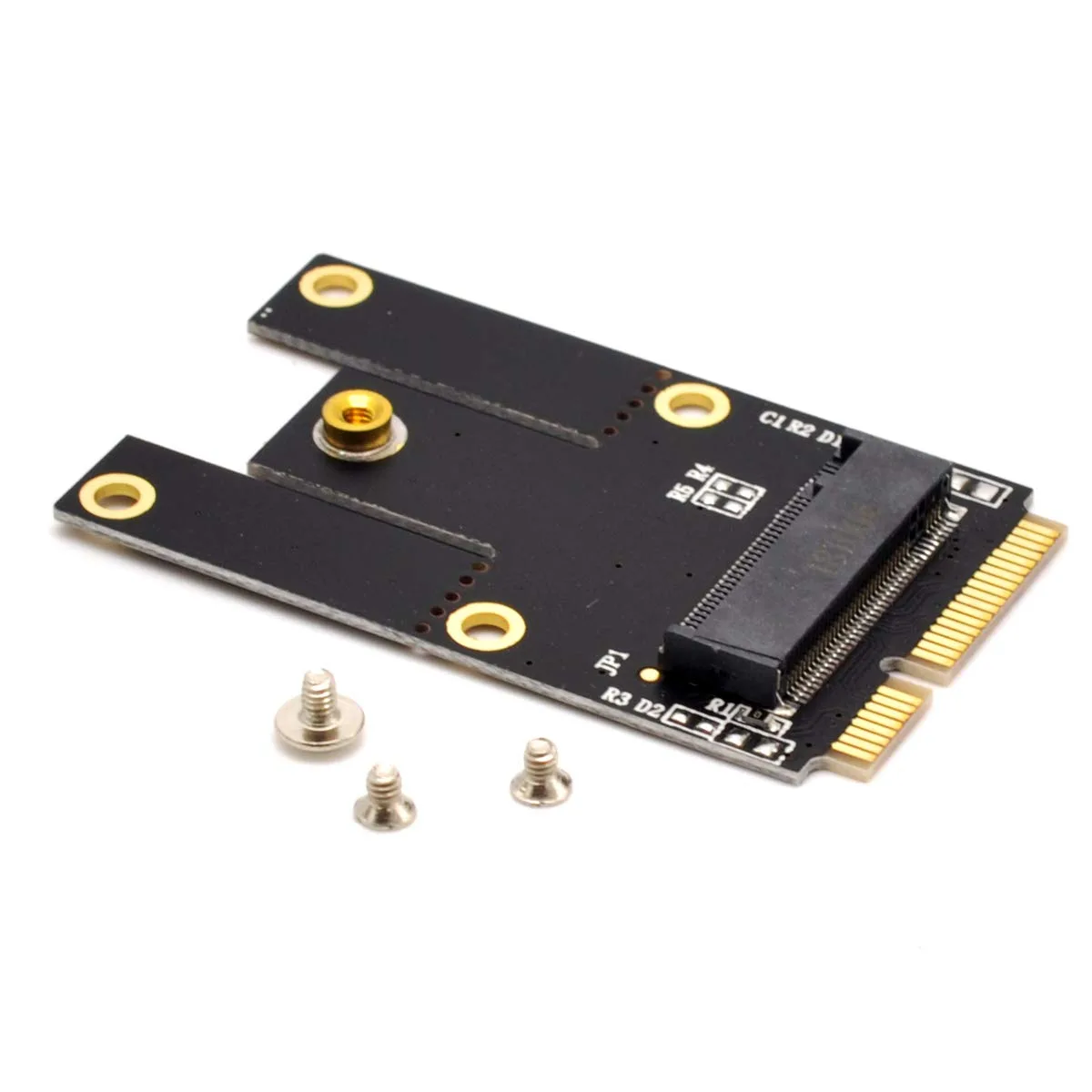

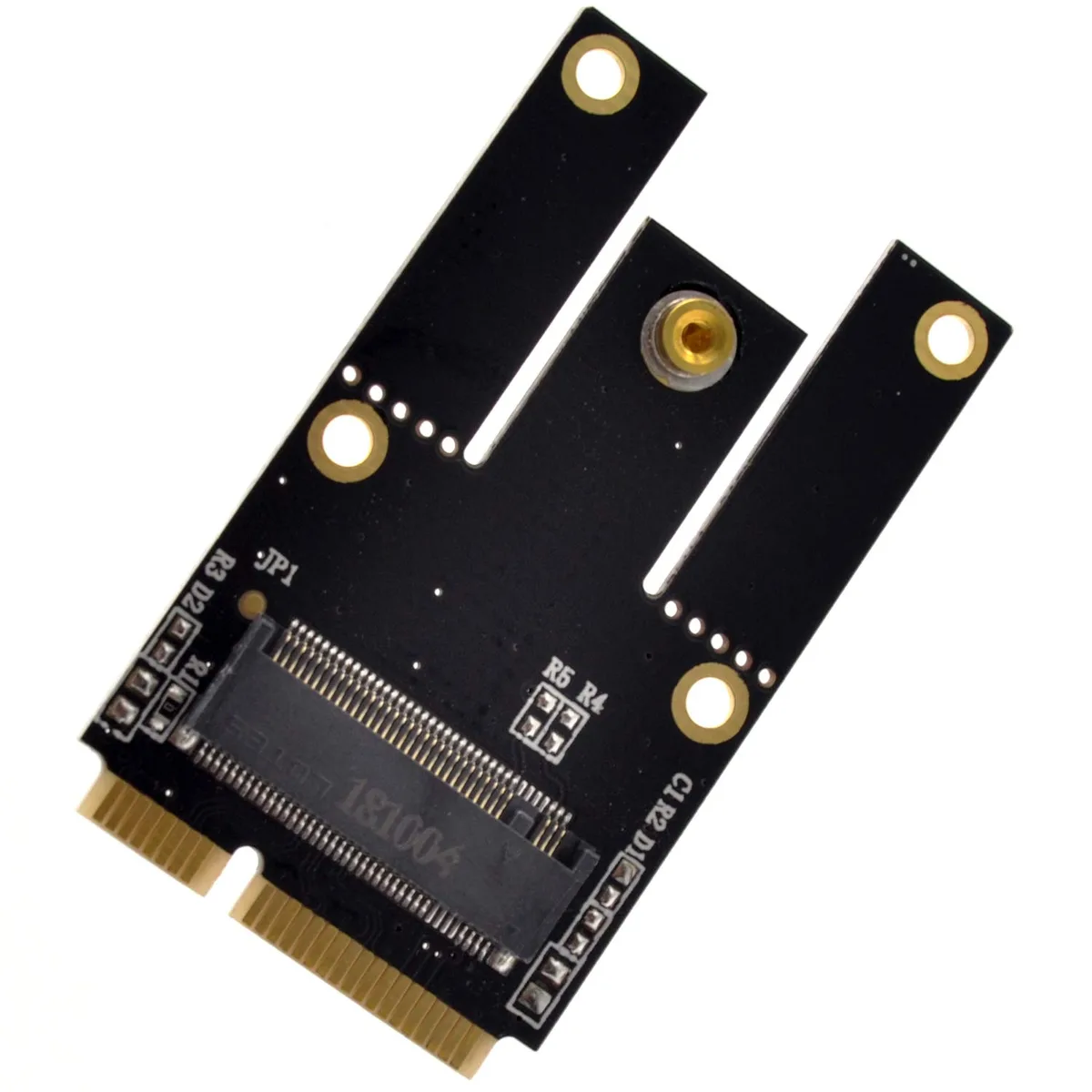

Small black rectangular circuit board adapter with gold edge connector and mounting holes

TeKit

TeKit M.2 NGFF 2230/2242 to Mini PCI-E Adapter Black

SKU CH-R3AT-6AR90

Converts M.2 2230/2242 NGFF Wi-Fi cards to Mini PCI-E slots for desktops and laptops, supporting Intel 9260, 8265, 8260, 7260 and DW1820 modules with simultaneous PCIe Wi-Fi and USB Bluetooth

  • ColorBlack
  • TypeM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter
  • SpecificationsM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter
  • FeaturesM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter
  • Package Content1 PACK
  • StyleFlat
  • Connect Wi-Fi and Bluetooth simultaneously via PCIe and USB
  • Fits 2230 and 2242 M.2 NGFF cards
  • Works with Intel 7260 7265 8260 8265 9260 modules
  • Compact 52 x 28 x 4.8 mm board
  • No driver installation required for Windows and Linux

M.2 NGFF to Mini PCI-E Adapter

This adapter converts a Mini PCI-Express slot to accept M.2 NGFF cards in 2230 and 2242 lengths. It is intended for desktop or laptop systems that need to install a compatible Wi-Fi or Bluetooth module. The board measures 52 by 28 by 4.8 mm and ships with mounting screws.

Compatibility scope

Works with Intel 3160, 3165, 7260, 7265, 8260, 8265 and 9260 NGW modules, supporting simultaneous Wi-Fi over PCIe and Bluetooth over USB. Does not work with Lenovo or HP laptops, modules carrying a FRU label, Intel 7265D2W, 8260D2W, 9560NGW, Broadcom 943228, 94352, 94360 variants, or any 3G, 4G or WWAN M.2 cards such as N5321, EM7355, EM7455, EM7345, GOBI5000 or Huawei ME906 series. Also incompatible with all M.2 SSDs.

Deciding specification

The adapter only accepts M.2 Key B cards built to the M.2 Specification Revision 0.9 and USB 2.0, so the card must use that key and interface. Systems must provide a Mini PCI-E slot and run Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux. No driver is required for the adapter itself.

Highlights

  • Connect Wi-Fi and Bluetooth simultaneously via PCIe and USB
  • Fits 2230 and 2242 M.2 NGFF cards
  • Works with Intel 7260 7265 8260 8265 9260 modules
  • Compact 52 x 28 x 4.8 mm board
  • No driver installation required for Windows and Linux

Specifications

BrandTekit
ColorBlack
TypeM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter Full Size/Half Size MPCIe Slot for Intel 9260 8265 8260 7260 DW1820 WiFi Module
SpecificationsM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter Full Size/Half Size MPCIe Slot for Intel 9260 8265 8260 7260 DW1820 WiFi Module
FeaturesM.2 NGFF (2230/2242) to Mini PCI-E Express Adapter Converter Full Size/Half Size MPCIe Slot for Intel 9260 8265 8260 7260 DW1820 WiFi Module
Package Content1 PACK
StyleFlat

Questions about this item

What are the physical dimensions of the TeKit M.2 NGFF adapter so I can confirm it fits my Mini PCI-E slot?

The adapter measures 52 x 28 x 4.8 mm and supports both full-size and half-size Mini PCI-E slots. It accepts M.2 2230 and 2242 key B cards.

How do I install the M.2 WiFi card onto this adapter, and what is the common mistake to avoid?

Insert the M.2 card at an angle into the key B socket, press it flat, and secure it with the included screw. The common mistake is using a key E card like the Intel 9560 or a Lenovo FRU card, which are not supported.

Will I need to replace any screws or parts on this adapter later?

The package includes the mounting screw for the M.2 card. No other replaceable parts are on the adapter. Ensure your system has a Mini PCI-E slot and runs Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux.
