Small green circuit board with M.2 Key B slot USB 3.0 port and SIM 6pin connector

TeKit

TeKit M.2 Key B to USB 3.0 Adapter with SIM 6pin Slot

SKU CH-XZKQ-PS3QT

Connects M.2 Key B WWAN/LTE modules with SIM slot to USB 3.0, supports 30×42 cards and needs no extra power

  • TypeNo
  • External USB Ports1x USB Port
  • SpecificationsNGFF(M.2) Key B to USB 3.0 Adapter with SIM 6pin Slot for WW
  • FeaturesNGFF(M.2) Key B to USB 3.0 Adapter with SIM 6pin Slot for WW
  • Weight10g
  • Connect WWAN or LTE modules via USB 3.0
  • Built-in SIM 6-pin slot for cellular connectivity
  • Driver-free setup with included screw and screwdriver
  • Supports 30×42 mm Key B cards like Huawei ME906
  • Ultra-light 10 g adapter needs no extra power

Adapter purpose

The TeKit M.2 Key B to USB 3.0 Adapter lets you connect a 30 by 42 millimetre WWAN or LTE module with a Key B edge connector to a standard USB 3.0 port on a desktop or laptop. It is built for users who need to add cellular broadband, GPS or legacy modem cards such as the Huawei ME906, EM7345, ME936, ME206, EM7305, EM7355 or MU736 without opening the computer case.

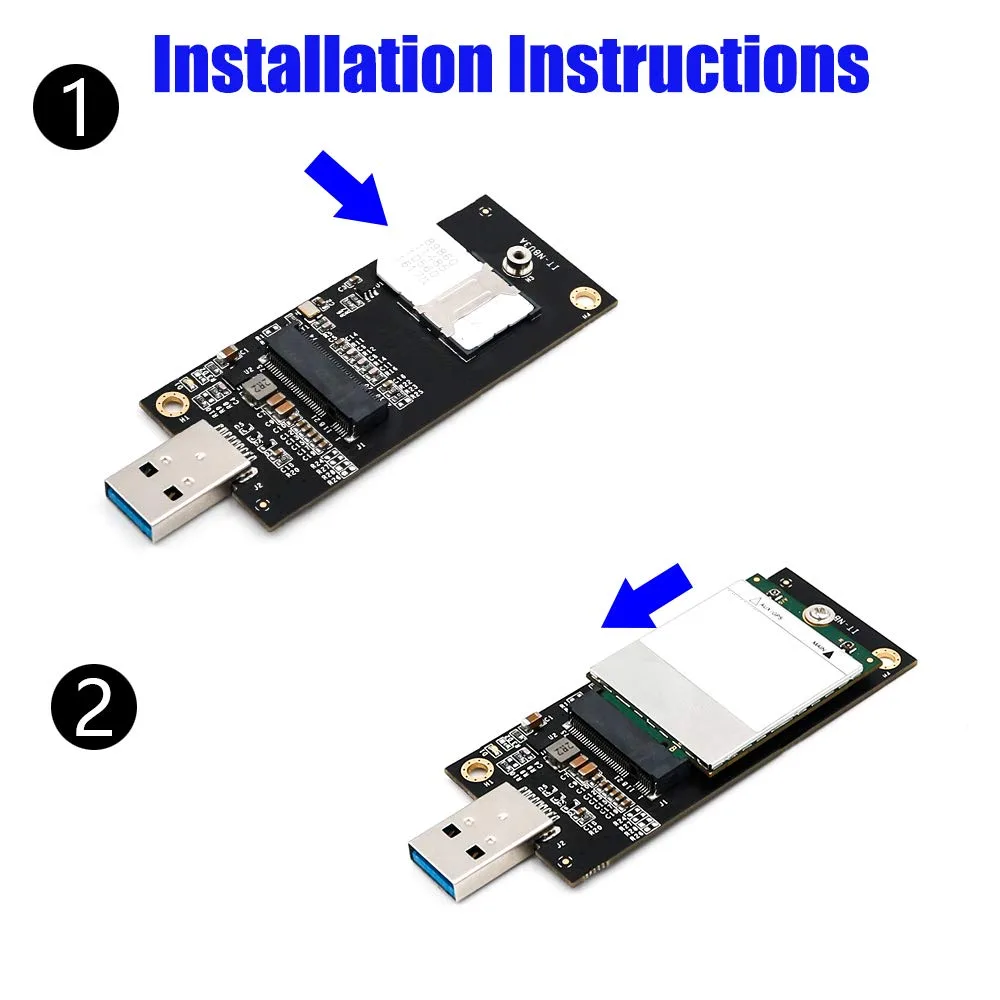

Installation notes

The board plugs straight into a USB 3.0 socket and draws all power from the bus, so no external supply is needed. A single M2 mounting screw and a small screwdriver are included to secure the module. The adapter itself needs no driver, but the WWAN card will require its own vendor software before the operating system can recognise the radio.

Compatibility check

Verify that your module uses an M.2 Key B interface and measures 30 by 42 millimetres; other keyings or lengths will not fit. Confirm the card communicates over USB 3.0 rather than PCIe, because this adapter only routes USB signals. Ensure a free USB 3.0 port is available and that you have a nano-SIM ready for the on-board 6-pin SIM slot if mobile data is required.

Highlights

  • Connect WWAN or LTE modules via USB 3.0
  • Built-in SIM 6-pin slot for cellular connectivity
  • Driver-free setup with included screw and screwdriver
  • Supports 30×42 mm Key B cards like Huawei ME906
  • Ultra-light 10 g adapter needs no extra power

Specifications

BrandTekit
TypeNo
External USB Ports1x USB Port
SpecificationsNGFF(M.2) Key B to USB 3.0 Adapter with SIM 6pin Slot for WWAN/LTE Module
FeaturesNGFF(M.2) Key B to USB 3.0 Adapter with SIM 6pin Slot for WWAN/LTE Module
Weight10g
Model1 Port

Questions about this item

How can I confirm the TeKit M.2 Key B to USB 3.0 Adapter is working after connecting my WWAN module?

The host computer should detect the M.2 card as a new USB 3.0 device; install the modem driver supplied by the module vendor and the SIM slot will then allow network registration.

What ships with the TeKit adapter and what must I provide separately?

The box contains the adapter board, one M.2 mounting screw and a small screwdriver; you must supply a compatible 30 by 42 mm Key B WWAN module and a 6-pin SIM card.

Which M.2 modules are confirmed compatible with this TeKit Key B adapter?

The adapter supports 30 by 42 mm Key B cards such as Huawei ME906, EM7345, ME936, ME206, EM7305, EM7355 and MU736 for 2G, 3G, 4G WiMAX or LTE use.
