TeKit LK7620P NEMA 6-20P 20A 250V gender changer
Industrial-grade NEMA 6-20P plug rated 20A 250V with nylon housing, brass contacts and UL/CSA certification for secure power connections
- ColorGold
- SpecificationsIndustrial Grade 20A 250V Straight Blade Plug, NEMA 6-20P, 2
- FeaturesPower Plug NEMA 6-20P, Industrial Grade Locking Plug 20A 250
- Package Contents1pack
- Industrial-grade durability with nylon construction resists impact and chemicals
- Reliable 20A 250V power delivery through brass blades and contacts
- Secure cable connection via screw-down strain relief design
- Safety assured by UL listed and CSA certified compliance
- Versatile NEMA 6-20P fit for generators, medical and industrial equipment
Industrial NEMA 6-20P Plug

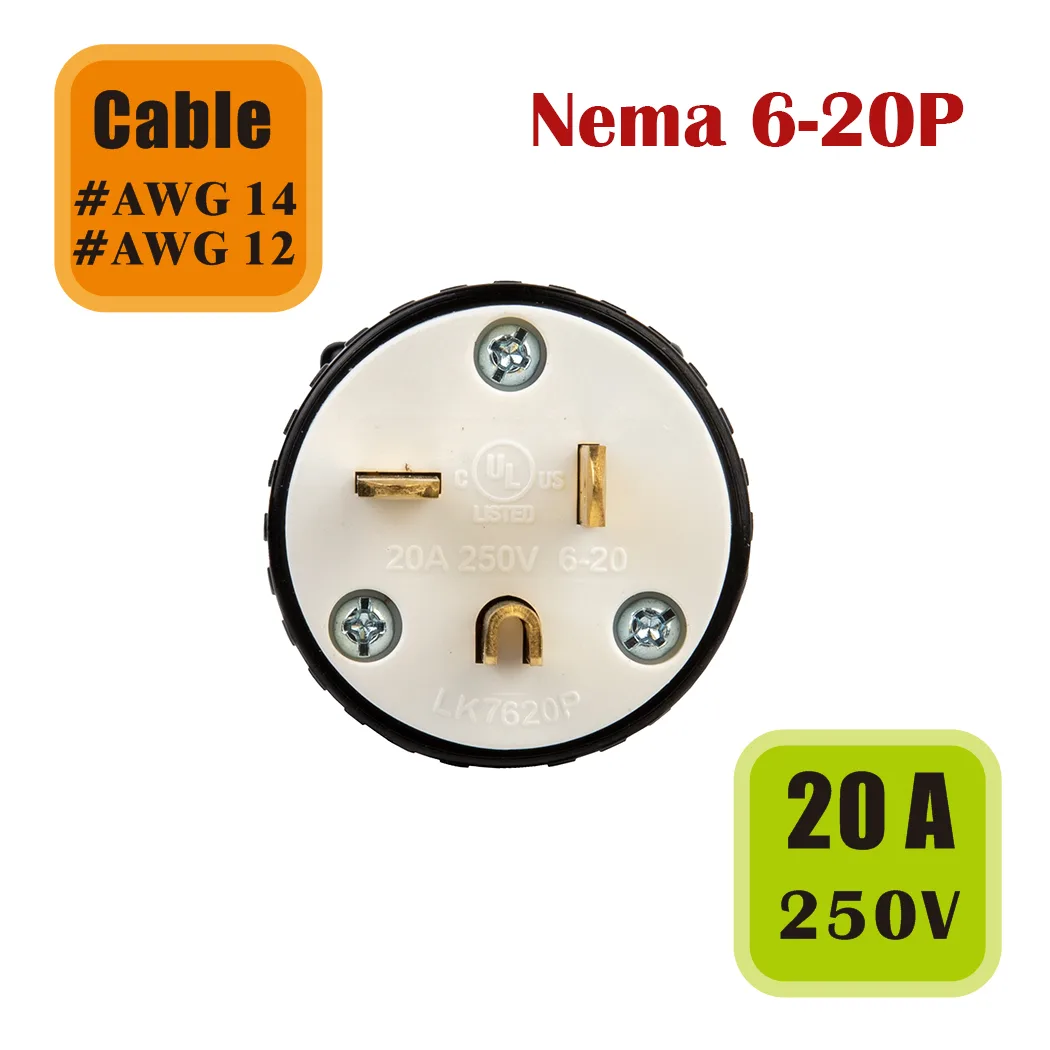

The TeKit LK7620P is a NEMA 6-20P straight blade plug rated for 20 amps at 250 volts. It suits installers wiring industrial equipment, generators or medical devices that require a 2-pole, 3-wire grounding connection. The nylon housing and brass contacts are built for repeated mating cycles in demanding environments. It is not for users needing a NEMA 5-15R household receptacle or a locking twist-lock variant.
Single Unit Package
The package contains one plug assembly with internal wiring chambers that isolate individual conductors. Screw-down strain relief clamps the cable jacket to prevent conductor pull-out during vibration or movement. No additional wiring tools, terminal blocks or sealing gaskets are bundled with the unit. Installers must supply their own cable and hand tools to complete the termination.
20 A 250 V Straight Blade Interface
The NEMA 6-20P standard supports 20 amps at 250 volts AC, 60 Hz, using a non-locking straight blade geometry. It cannot mate with NEMA 5-15R, 6-15R or any locking NEMA L-series receptacles. The plug lacks an ingress protection rating, so outdoor or wet-location use requires a separately rated enclosure. Continuous loads above the 20 amp rating will exceed the device certification.
Highlights
- Industrial-grade durability with nylon construction resists impact and chemicals
- Reliable 20A 250V power delivery through brass blades and contacts
- Secure cable connection via screw-down strain relief design
- Safety assured by UL listed and CSA certified compliance
- Versatile NEMA 6-20P fit for generators, medical and industrial equipment
Specifications
| Brand | Tekit |
|---|---|
| Model | LK7620P |
| Color | Gold |
| Specifications | Industrial Grade 20A 250V Straight Blade Plug, NEMA 6-20P, 2P, 3W, 66230-BK, Black |
| Features | Power Plug NEMA 6-20P, Industrial Grade Locking Plug 20A 250V, Black Straight Blade Plug,Wiring Plug Y-assembly |
| Package Contents | 1pack |
Other versions of this model
3 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
TeKit
TeKit LK5520R NEMA 5-20R gender changer 20A 125V
- Green
- Industrial Grade 20…
$8.99
0.0001086BTC
In stock
TeKit
TeKit LK7520P NEMA 5-20P 20A 125V Gender Changer
- Almond
- Industrial Grade 20…
$9.99
0.00012068BTC
In stockQuestions about this item
Does the nylon housing or brass blades need periodic replacement under heavy use?
The nylon housing and brass blades are built for industrial durability; no scheduled replacement is mentioned for normal operation.
What is the first limit reached when the plug runs continuously at full load?
The 20 A, 250 V rating is the primary limit; sustained current above 20 amps will exceed the device rating.
How much heat or noise does the adapter produce during all-day operation?
As a passive wiring plug it generates no audible noise and only minimal heat from conductor resistance at rated current.
