Teansic IC332-335 USB-A Male DIP Breakout Board 2.54mm 20Pcs
Pack of 20 USB-A male breakout boards with 2.54 mm pitch holes for breadboard prototyping and DIY power projects
- FeaturesMicro USB, 1, Printer, false, no_plug
- Height1.3 L x 10.7 W x 16.6 H centimeters
- Width1.3 L x 10.7 W x 16.6 H centimeters
- Length1.3 L x 10.7 W x 16.6 H centimeters
- FitmentPrinter
- 20 boards per pack support multiple prototyping projects
- USB 2.0 Type-A male connector plugs into standard ports
- 54 mm pin pitch fits breadboards and perfboards
- FR4 board material withstands repeated soldering cycles

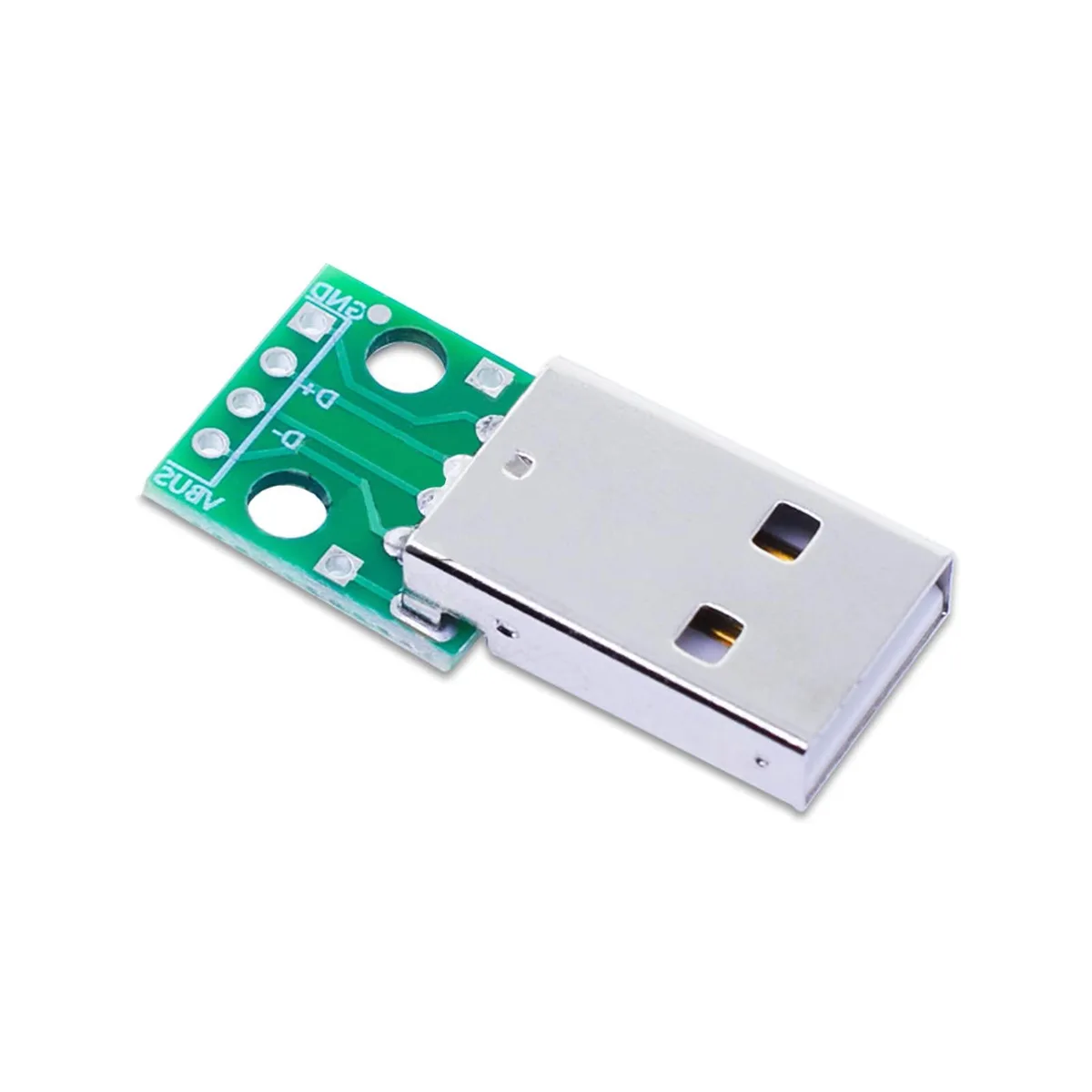

- 4-pin breakout exposes VBUS, D+, D- and GND for DIY circuits
20-Piece USB-A Male Breakout Kit
This kit supplies twenty USB 2.0 Type-A male to DIP adapter boards for prototype and repair work. Each board breaks out the four standard lines VBUS, D+, D- and GND onto a 2.54 mm pitch header layout. The pack quantity suits hobbyists, students and small-batch builders who need multiple units on hand.
FR4 Board With 2.54 mm Hole Spacing
The boards are fabricated from FR4 laminate and measure within the 1.3 by 10.7 by 16.6 cm panel outline. Pins are not fitted; the 2.54 mm holes accept standard header pins or direct wire soldering. The panel arrives as a single piece that must be separated into individual modules before use.
Solder-Ready Modules For Custom Wiring
No headers or cables are included, so each builder chooses the pin style or wire gauge that matches the project. The boards handle up to 5 V and 2 A when fed from a USB power source, but they do not generate power themselves. Typical uses include breadboard power taps, 3D printer wiring and Bluetooth module interfaces.
Highlights
- 20 boards per pack support multiple prototyping projects
- USB 2.0 Type-A male connector plugs into standard ports
- 54 mm pin pitch fits breadboards and perfboards
- FR4 board material withstands repeated soldering cycles
- 4-pin breakout exposes VBUS, D+, D- and GND for DIY circuits
Specifications
| Brand | Teansic |
|---|---|
| Model | IC332-335 |
| Features | Micro USB, 1, Printer, false, no_plug |
| Height | 1.3 L x 10.7 W x 16.6 H centimeters |
| Width | 1.3 L x 10.7 W x 16.6 H centimeters |
| Length | 1.3 L x 10.7 W x 16.6 H centimeters |
| Fitment | Printer |
Questions about this item
What USB standard does the IC332-335 male breakout board implement and what current does it cap at?
The board implements USB 2.0 and is rated for a maximum of 2A at 5V.
What physical spacing and board size must my project accommodate for the IC332-335?
The pins are on a 2.54mm pitch and each individual board measures 1.3 x 10.7 x 16.6 centimeters.
How do I install the IC332-335 boards and what step is commonly missed?
The pack of 20 arrives as one panel; you must cut the boards apart and solder pins or wires into the holes before use.
