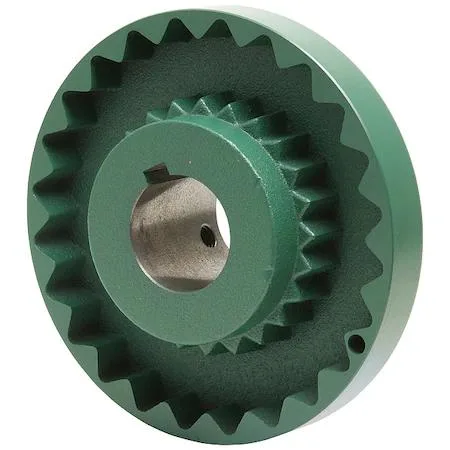

Cast iron coupling flange with keyed bore, machined finish

Tb Wood'S

Tb Wood'S 9S214 Sure-Flex Sleeve Coupling Flange

SKU CH-899C-BHXKP

A cast-iron flange hub for 2 1/4 in bore shafts, rated to 3,750 RPM and 2,340 in-lb torque in compressors, conveyors, motors and pumps

  • Handles up to 2,340 in-lb torque for heavy-duty power transmission
  • Operates at speeds up to 3,750 RPM for high-speed machinery
  • Precise bore tolerance of +.0005 to +.0020 in ensures secure shaft fit
  • Cast iron hub resists wear in compressors, conveyors, motors and pumps
  • 2-1/4 in bore diameter matches standard shaft sizes for direct installation

Sleeve Coupling Flange Size 9

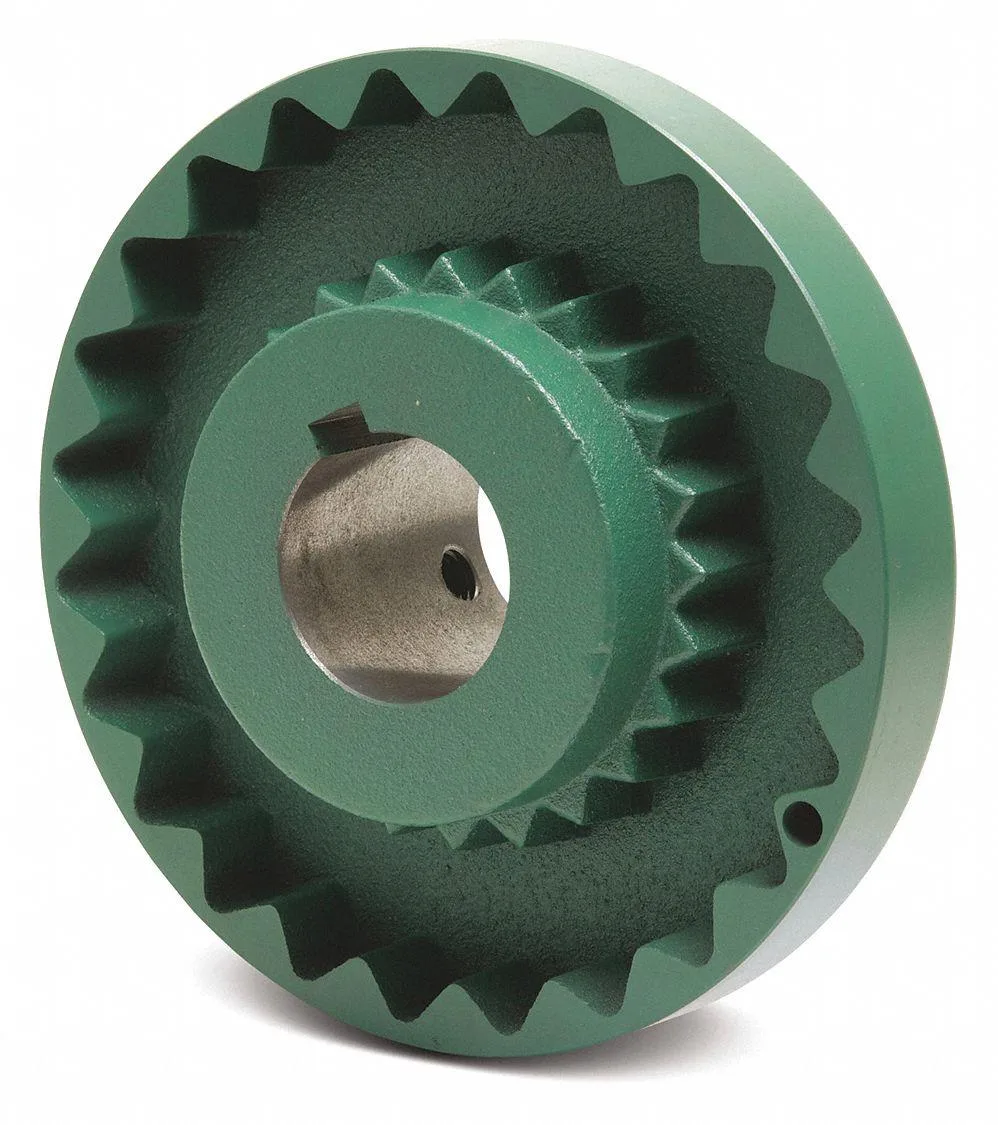

The Tb Wood'S 9S214 is a cast-iron flange hub designed for power transmission in compressors, conveyors, motors and pumps. It accepts a 2-1/4 inch round keyed bore with a tolerance of +0.0005 to +0.0020 inch for a precise shaft fit.

Build Integration Requirements

This component operates at a maximum speed of 3,750 RPM and transmits up to 2,340 in-lb of torque. The hub diameter measures 3 5/8 inches with a hub body length of 25/32 inch, while the overall length through the bore is 2 13/32 inches.

Upgrade and Replacement Context

It replaces worn or damaged flanges in existing Sure-Flex coupling assemblies where the bore size and coupling dimensions match. The jump is worth it when the current hub shows keyway wear, corrosion or cracking that compromises torque transfer. Buyers needing a different bore diameter or a larger coupling size cannot use this part.

Highlights

  • Handles up to 2,340 in-lb torque for heavy-duty power transmission
  • Operates at speeds up to 3,750 RPM for high-speed machinery
  • Precise bore tolerance of +.0005 to +.0020 in ensures secure shaft fit
  • Cast iron hub resists wear in compressors, conveyors, motors and pumps
  • 2-1/4 in bore diameter matches standard shaft sizes for direct installation

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum continuous speed for the 9S214 coupling flange?

The flange is rated for a maximum speed of 750 RPM under continuous operation.

How much heat or noise does the cast-iron flange generate during all-day use?

The cast-iron hub itself produces no measurable heat or noise; any thermal or acoustic output comes from the driven equipment and the flexible sleeve.

Which bushing size is required to mount this 9S flange on a 2-1/4 inch shaft?

No bushing is used — the flange has a finished 2-1/4 inch round keyed bore with a tolerance of +0.0005 / +0.0020 inches.
