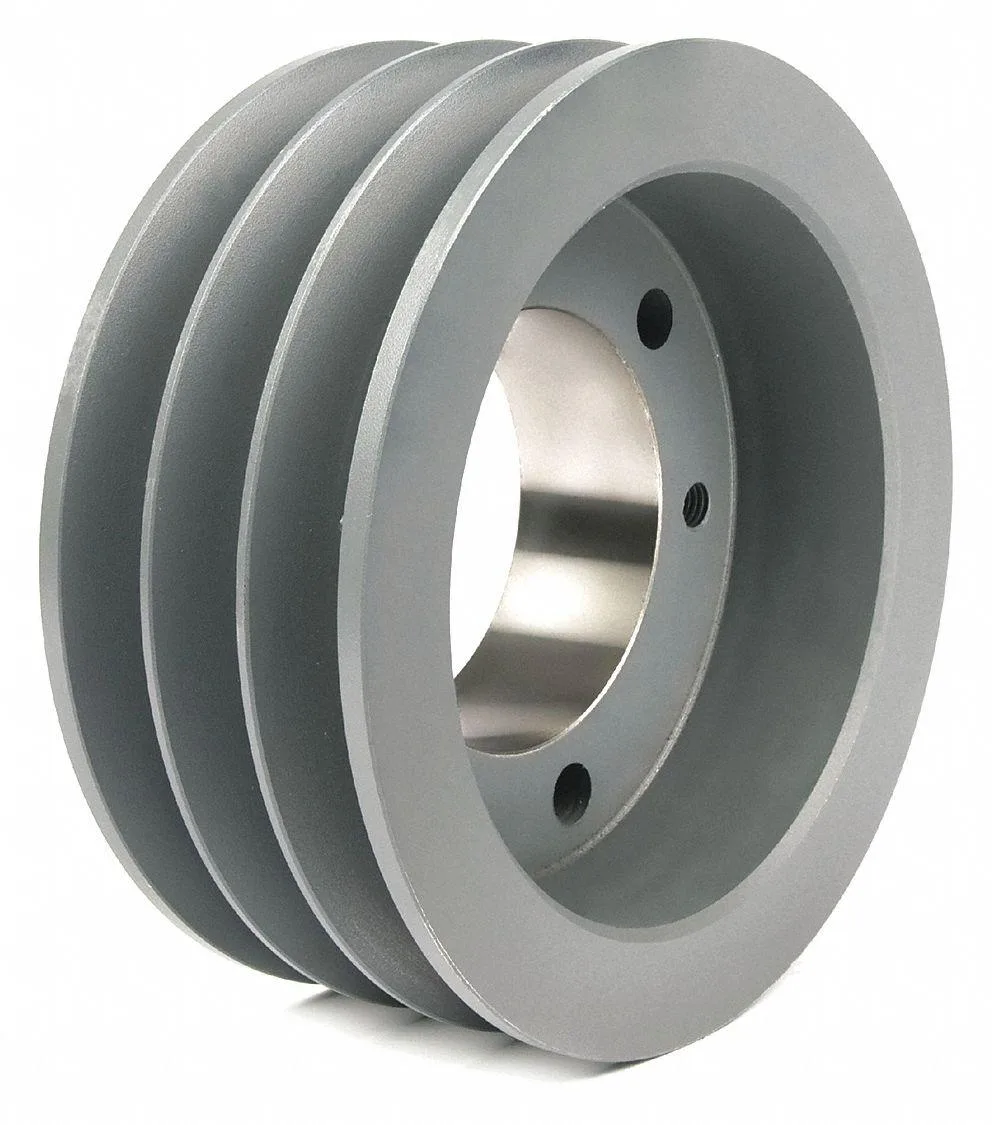

Metal V-belt sheave with three grooves and a quick-detachable tapered bushing, matte grey finish

Tb Wood'S

Tb Wood'S 803C Quick Detachable 3 Groove V-Belt

SKU CH-AZYA-XWAQC

A quick-detachable, three-groove V-belt sheave with an 8 in C and CX pitch diameter

  • TypeSheaves & Pulleys
  • Quick-detachable bushing speeds up installation and removal
  • Three-groove design supports multiple C/CX belts for higher torque capacity
  • 8-inch C/CX pitch diameter matches standard drive requirements
  • Compatible with quick-detachable bushings for flexible bore sizing
  • New condition ensures full service life from first use

Industrial Power Transmission Component

The Tb Wood'S 803C is a three-groove V-belt pulley designed for use with C and CX belt sections in machinery drive systems. It features a quick-detachable bushed bore that accommodates shaft diameters from 7/8 in to 3-1/2 in for straightforward installation and removal. The cast construction suits heavy-duty industrial environments where reliable power transfer is essential.

Maintenance Teams and Plant Engineers

This pulley suits maintenance crews who need to replace worn sheaves on existing C-section belt drives without special tools. It is not for applications requiring A, B, 3V, 5V or other belt profiles, nor for setups that demand a finished bore or a different groove count. Operations using variable-speed or synchronous belts should select a different component.

C and CX Belt Compatibility

The single specification that determines fit is the belt trade size: this sheave accepts only C and CX V-belts with an 8 in pitch diameter. Using any other belt cross-section will prevent proper seating and torque transmission. Verify the belt markings on your drive before ordering to ensure the grooves match the belt profile exactly.

Highlights

  • Quick-detachable bushing speeds up installation and removal
  • Three-groove design supports multiple C/CX belts for higher torque capacity
  • 8-inch C/CX pitch diameter matches standard drive requirements
  • Compatible with quick-detachable bushings for flexible bore sizing
  • New condition ensures full service life from first use

Specifications

TypeSheaves & Pulleys

Questions about this item

Should I choose this 3-groove C/CX pulley or a single-groove version for my drive?

Choose the 3-groove 803C when the design calls for three C or CX belts side by side on an 8-inch pitch diameter; a single-groove sheave only accepts one belt and cannot share the load across multiple grooves.

What does the 8-inch C/CX pitch diameter mean once the pulley is mounted on a shaft?

The 8-inch pitch diameter is the effective diameter where C or CX belts ride, so it fixes the speed ratio and belt length calculation for the drive once the quick-detachable bushing locks the sheave to the shaft.

How does the quick-detachable bushing interface limit the bore range I can use?

The quick-detachable bushing system accepts standard QD bushings with bores from 7/8 inch to 3-1/2 inch, so the shaft diameter must fall within that range for the pulley to mount securely.
