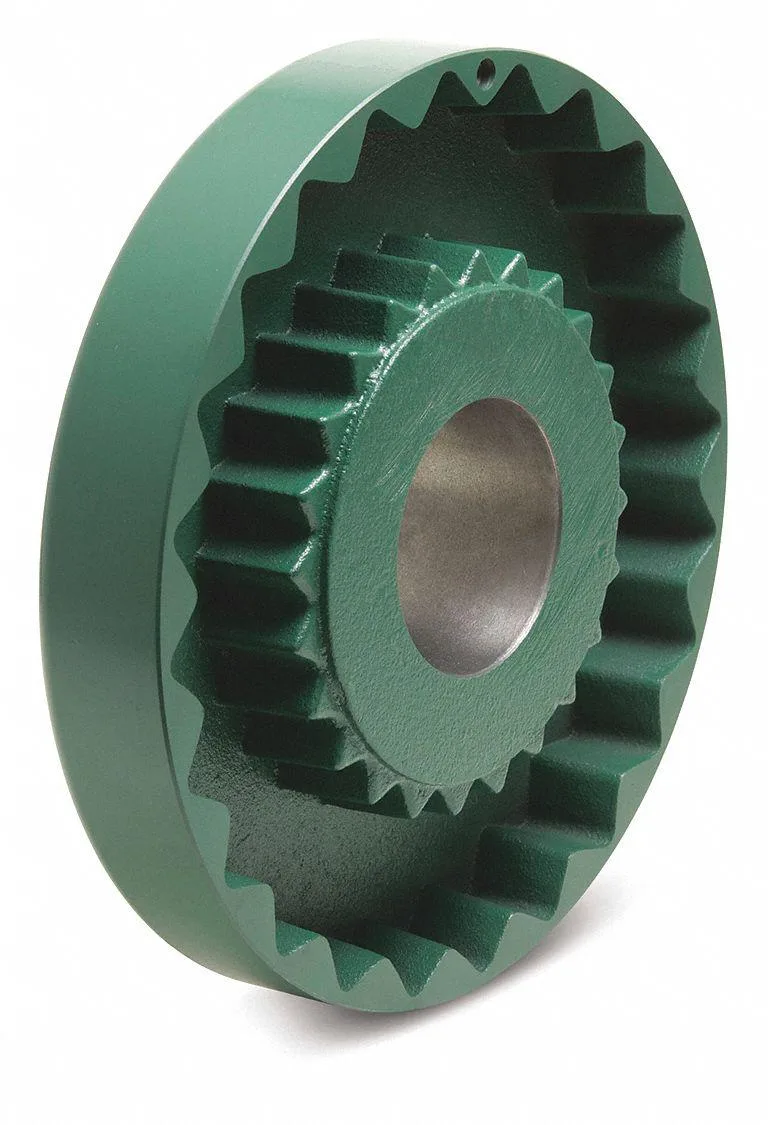

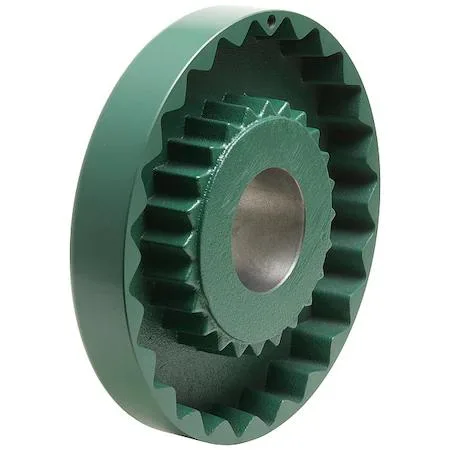

Cast iron spacer flange, hub diameter 2 13/16 in, overall diameter 4 5/8 in

Tb Wood'S

Tb Wood'S 7SC44 Sleeve Coupling Spacer Flange

SKU CH-PKPM-RN2KX

Sleeve coupling spacer flange rated for 5,250 RPM and 940 in-lb torque in cast iron

  • Spacer flange enables quick alignment for sleeve coupling
  • Cast-iron hub resists wear in heavy-duty drives
  • Rated for 5 250 RPM maximum operating speed
  • Handles up to 940 in-lb torque capacity
  • Fits compressors, conveyors, motors and pumps

Coupling Size 7 Spacer Flange

This spacer flange fits Coupling Size 7 in Sure-Flex sleeve coupling assemblies. It connects driving and driven shafts on compressors, conveyors, motors and pumps. The cast iron hub measures 2 13/16 in diameter with a 29/32 in body length. Overall length through the bore is 2 1/16 in.

Speed and Torque Limits

Maximum operating speed is 5,250 RPM and maximum torque capacity is 940 in-lb. Exceeding either limit can cause premature wear or coupling failure. The inch-system dimensions determine alignment tolerances for the connected equipment. No bore or bushing size applies to this spacer flange component.

Replaces Worn Spacer Flanges

This part replaces a damaged or worn spacer flange in an existing Size 7 coupling. The upgrade is worth it when vibration, misalignment or hub cracking appears during inspection. It is not for applications requiring a different coupling size, a bored hub or a higher torque rating than 940 in-lb.

Highlights

  • Spacer flange enables quick alignment for sleeve coupling
  • Cast-iron hub resists wear in heavy-duty drives
  • Rated for 5 250 RPM maximum operating speed
  • Handles up to 940 in-lb torque capacity
  • Fits compressors, conveyors, motors and pumps

Specifications

No published specifications for this item yet.

Questions about this item

Which coupling size matches a 4 5/8 in outside diameter and 940 in-lb torque rating?

The 7SC44 spacer flange is built for coupling size 7, with a 4 5/8 in outside diameter and a 940 in-lb maximum torque limit.

What does the 5,250 RPM rating mean when the flange is installed on a compressor or pump shaft?

It is the highest rotational speed the cast-iron flange can sustain without exceeding its design limits, so the driven equipment must not exceed 5,250 RPM.

How does the 29/32 in hub body length affect alignment with a Sure-Flex sleeve?

The 29/32 in hub body length sets the fixed spacing between connected shafts, so the sleeve must be chosen to match that gap for proper engagement.
