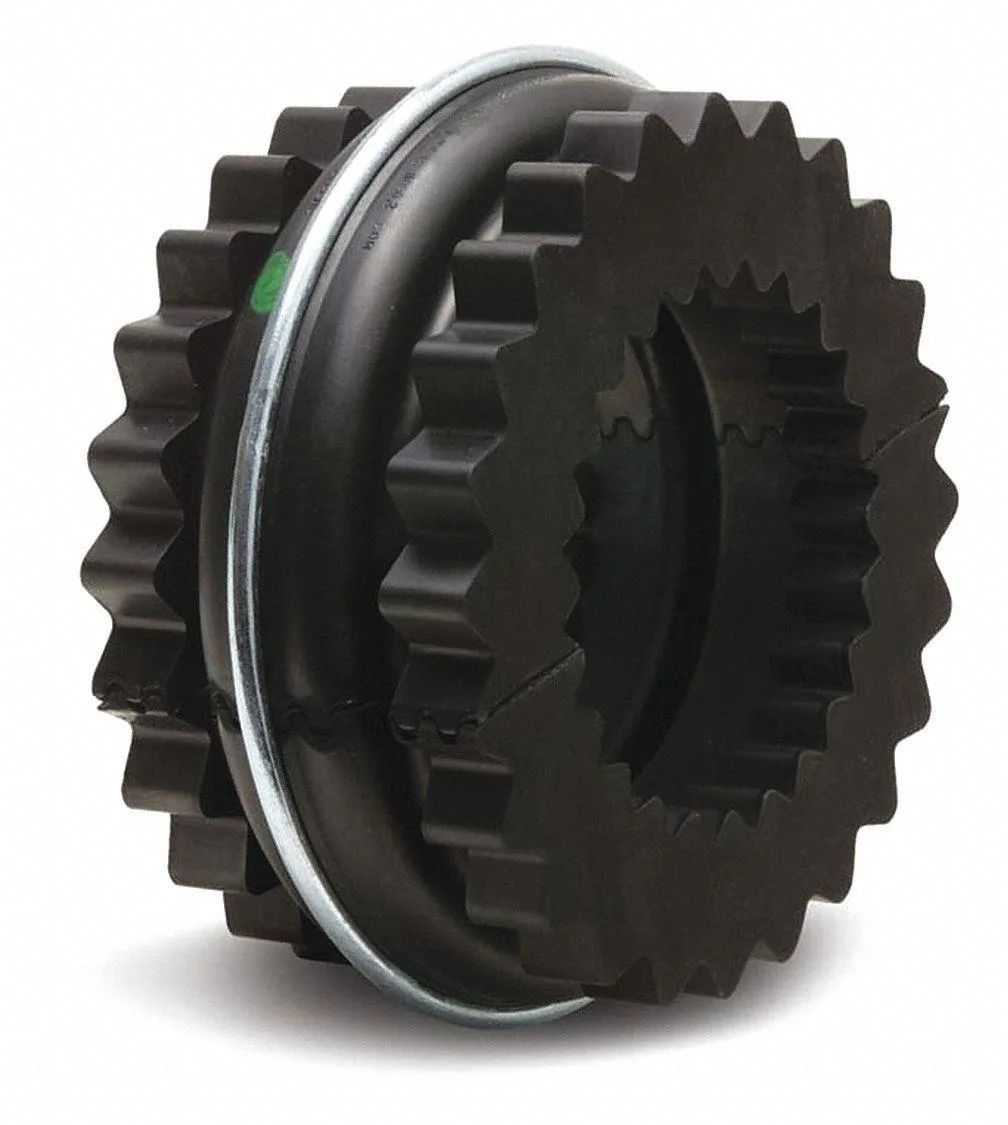

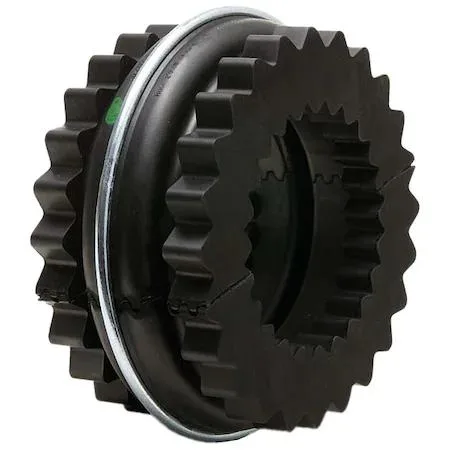

Neoprene sleeve coupling insert, two-piece design with retaining ring

Tb Wood'S

Tb Wood'S 10N Sure-Flex Sleeve Coupling Insert Neoprene

SKU CH-K4Z7-8VRKX

Neoprene sleeve coupling insert for size 10 couplings rated to 3,600 RPM and 3,735 in-lb torque

  • Handles up to 5.9 hp at 100 RPM
  • Withstands 3,735 in-lb maximum torque
  • Operates up to 3,600 RPM for high-speed drives
  • Tolerates 1 degree angular and 0.025 in parallel misalignment
  • Neoprene construction rated to 200 degrees F

Sure-Flex 10N Sleeve Coupling Insert

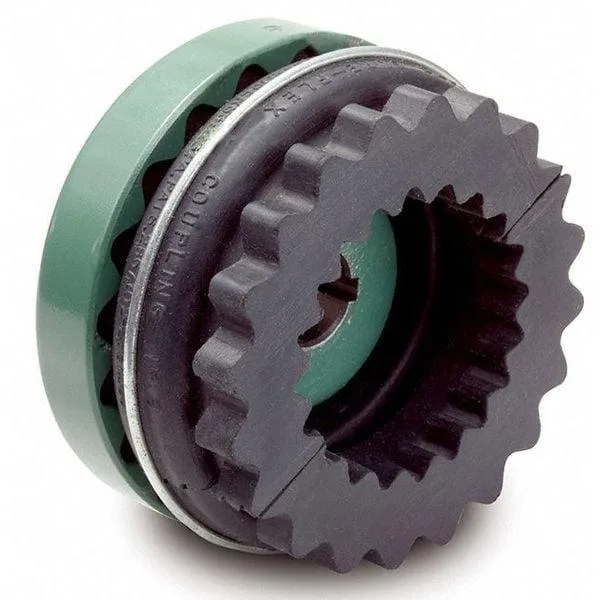

The Tb Wood'S 10N Sure-Flex sleeve coupling insert is a neoprene flexible element designed for power transmission systems. It connects driving and driven shafts while accommodating misalignment and dampening vibration in industrial machinery.

Fit for Coupling Size 10 Applications

This insert suits maintenance teams replacing the flexible element on existing Sure-Flex size 10 couplings used in blowers, compressors, conveyors, mixers, motors and pumps. It is not for buyers needing a different coupling size, a complete coupling assembly with hubs, or an insert rated above 200 degrees Fahrenheit.

Sustained Load Behaviour

At 100 RPM the insert transmits 5.9 horsepower with a torsional stiffness of 10,980 in-lb per radian. Continuous operation is rated to 3,600 RPM and 3,735 in-lb torque while tolerating one degree angular and 0.025 inch parallel misalignment within the 200 degree Fahrenheit temperature limit.

Highlights

  • Handles up to 5.9 hp at 100 RPM
  • Withstands 3,735 in-lb maximum torque
  • Operates up to 3,600 RPM for high-speed drives
  • Tolerates 1 degree angular and 0.025 in parallel misalignment
  • Neoprene construction rated to 200 degrees F

Specifications

No published specifications for this item yet.

Questions about this item

What shaft coupling size does the 10N insert fit?

The 10N insert is designed for coupling size 10 and has a 7 1/16 in outside diameter.

Will the neoprene insert handle the angular misalignment of my existing pump and motor shafts?

Yes, it accommodates up to 1 degree of angular misalignment and 0.025 in of parallel offset.

How can I confirm the insert is operating within its rated limits after installation?

Verify the running speed stays below 3,600 RPM and the operating temperature does not exceed 200 degrees F.
