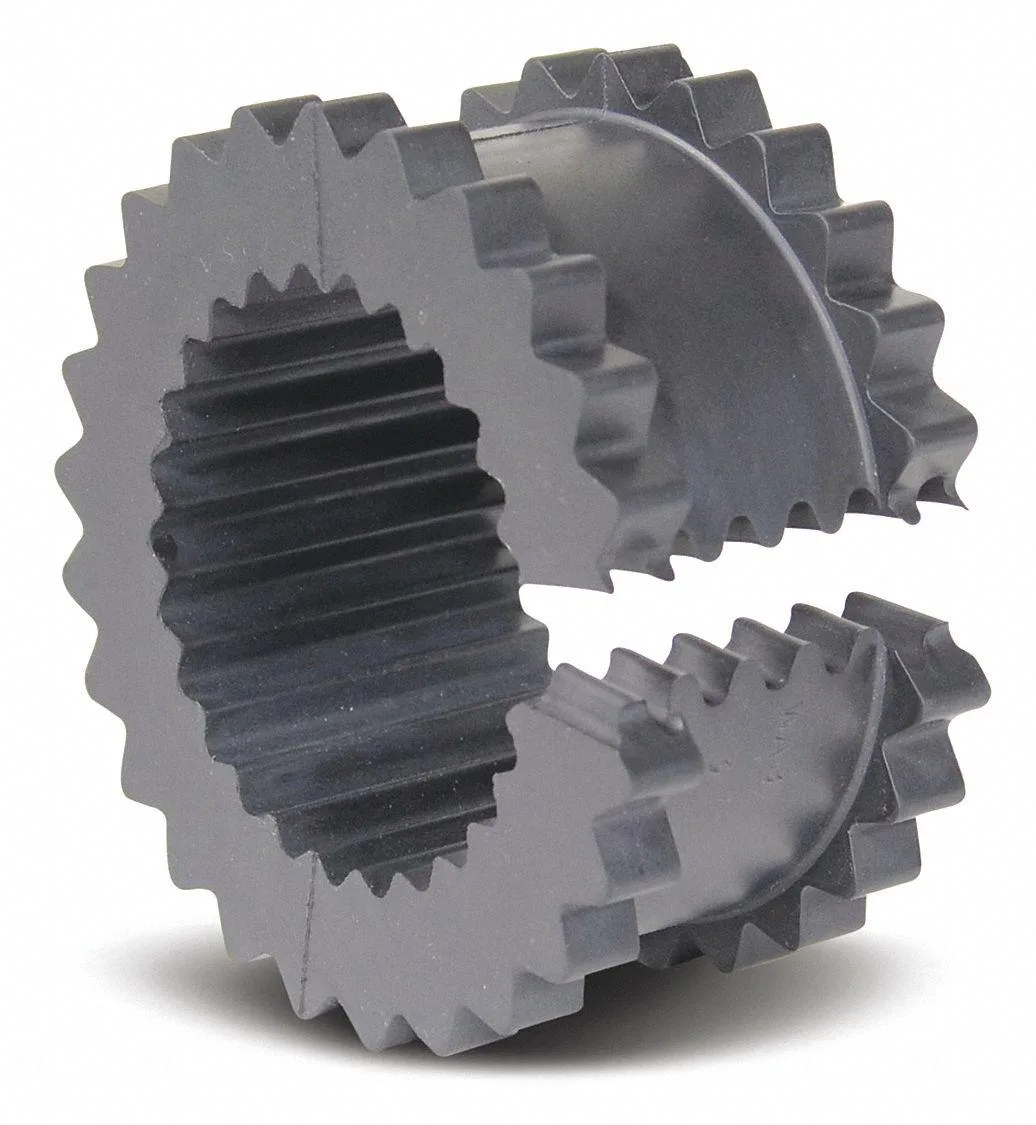

Black EPDM rubber sleeve coupling insert with split design, 7 1/16 inch diameter, 3 7/16 inch width

Tb Wood'S

Tb Wood'S 10JS Sure-Flex Sleeve Coupling Insert EPDM 10JES

SKU CH-0DQF-8YFNW

EPDM sleeve coupling insert for size 10 couplings handles 3,735 in-lb torque at 3,600 RPM and tolerates 275°F in blower, compressor and pump drives

  • EPDM rubber withstands up to 275 °F operating temperature
  • 9 hp at 100 RPM drives blowers, compressors and conveyors
  • 3,735 in-lb maximum torque handles heavy power-transmission loads
  • 1° angular and .025 in parallel misalignment tolerance protects connected equipment
  • One-piece split insert design simplifies installation and maintenance

Coupling Insert Size 10 EPDM

The Tb Wood'S 10JS Sure-Flex sleeve coupling insert is a one-piece split component made from EPDM rubber. It fits coupling size 10 and suits applications such as blowers, compressors, conveyors, mixers, motors and pumps. The insert handles a maximum speed of 3,600 RPM and a maximum torque of 3,735 in-lb.

Check Shaft Speed and Alignment

Verify that your equipment runs at or below 3,600 RPM and that the torque demand stays within 3,735 in-lb. Confirm the operating temperature will not exceed 275 degrees F. Ensure angular misalignment does not surpass 1 degree and parallel misalignment stays within 0.025 in. The system uses inch measurements throughout.

One-Piece Split Design and EPDM Durability

The new one-piece split construction simplifies installation and removal without moving connected shafts. EPDM rubber resists heat, ozone and weathering for reliable daily operation in industrial environments. Torsional stiffness is rated at 10,980 in-lb/rad, and the insert delivers 5.9 hp at 100 RPM. Outside diameter is 7 1/16 in and insert width is 3 7/16 in.

Highlights

  • EPDM rubber withstands up to 275 °F operating temperature
  • 9 hp at 100 RPM drives blowers, compressors and conveyors
  • 3,735 in-lb maximum torque handles heavy power-transmission loads
  • 1° angular and .025 in parallel misalignment tolerance protects connected equipment
  • One-piece split insert design simplifies installation and maintenance

Specifications

No published specifications for this item yet.

Questions about this item

What does the EPDM insert come with and what must I supply?

The EPDM sleeve insert is a single 1-piece split component sized for coupling size 10. You must supply the two metal hub halves, fasteners and any shaft keys or set screws required for your shafts.

Which insert should I choose for a size-10 coupling running at 100 RPM?

This 10JES insert is the only version listed for coupling size 10. It is rated for 5.9 hp at 100 RPM and a maximum torque of 3,735 in-lb, so select it when those limits match your application.

What does the 3,600 RPM rating mean once the coupling is installed?

3,600 RPM is the maximum rotational speed the EPDM insert can tolerate. In service the actual speed must stay at or below this value and the operating temperature must not exceed 275 °F.
