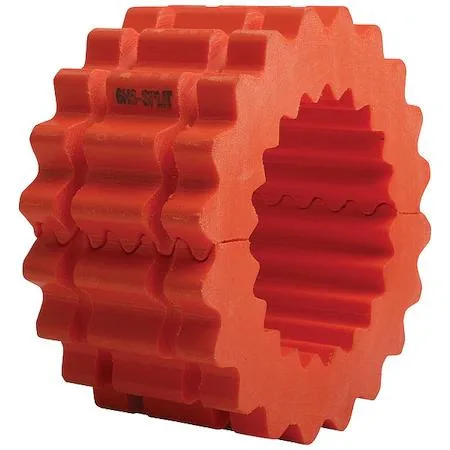

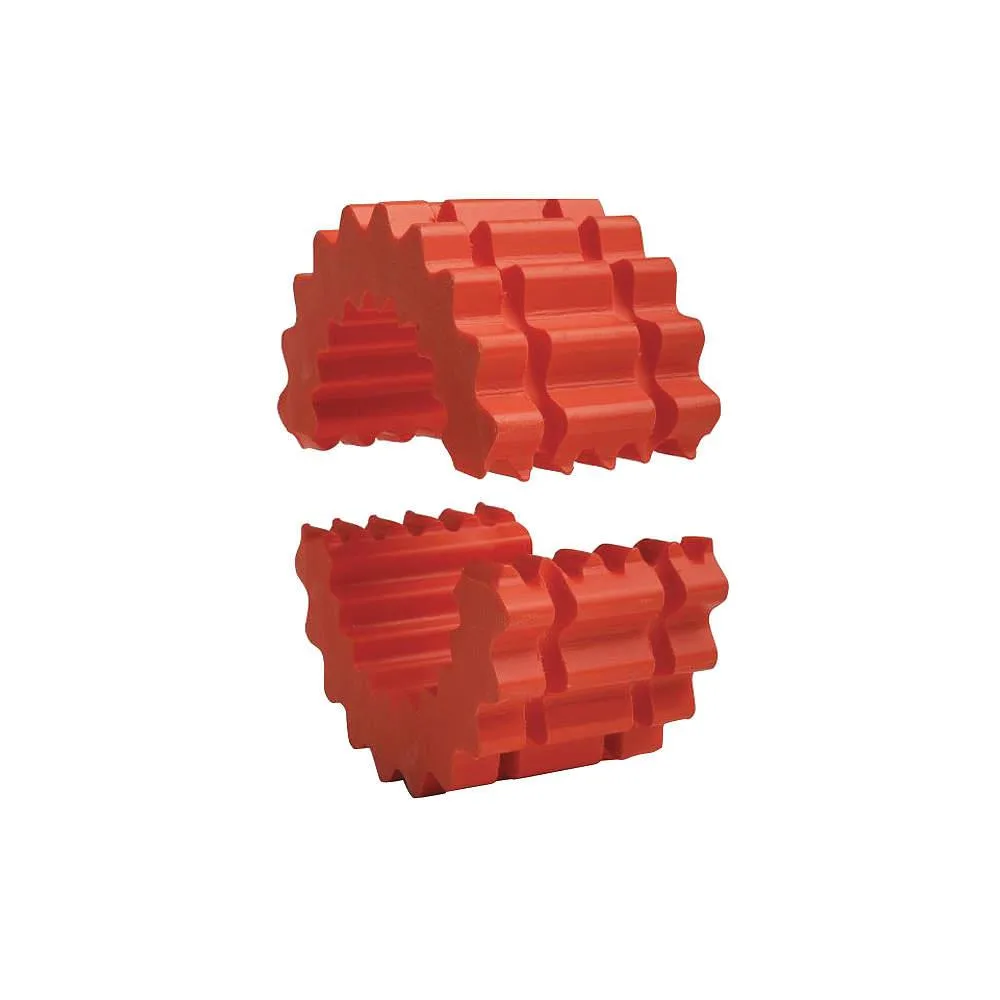

Hytrel coupling insert, two-piece sleeve, 7 1/16 in OD, 3 7/16 in wide

Tb Wood'S

Tb Wood'S 10HS Sure-Flex Sleeve Coupling Insert Hytrel

SKU CH-WMDH-2J2B0

Hytrel coupling insert for size 10 Sure-Flex sleeves handles 3,600 RPM and 11,350 in-lb torque

  • Handles high torque loads with 11,350 in-lb capacity
  • Operates up to 3,600 RPM for demanding machinery
  • Withstands 250°F in harsh industrial environments
  • Accommodates .25° angular and .02" parallel misalignment
  • Delivers 18 hp at 100 RPM for compressors and pumps

Industrial Coupling Insert for Power Transmission

The Tb Wood'S 10HS Sure-Flex sleeve coupling insert connects rotating shafts in compressors, conveyors, electric motors, fans, mixers and pumps. It transmits torque while accommodating angular misalignment up to 0.25 degrees and parallel offset up to 0.02 inches. The Hytrel material suits continuous operation at temperatures up to 250 degrees F.

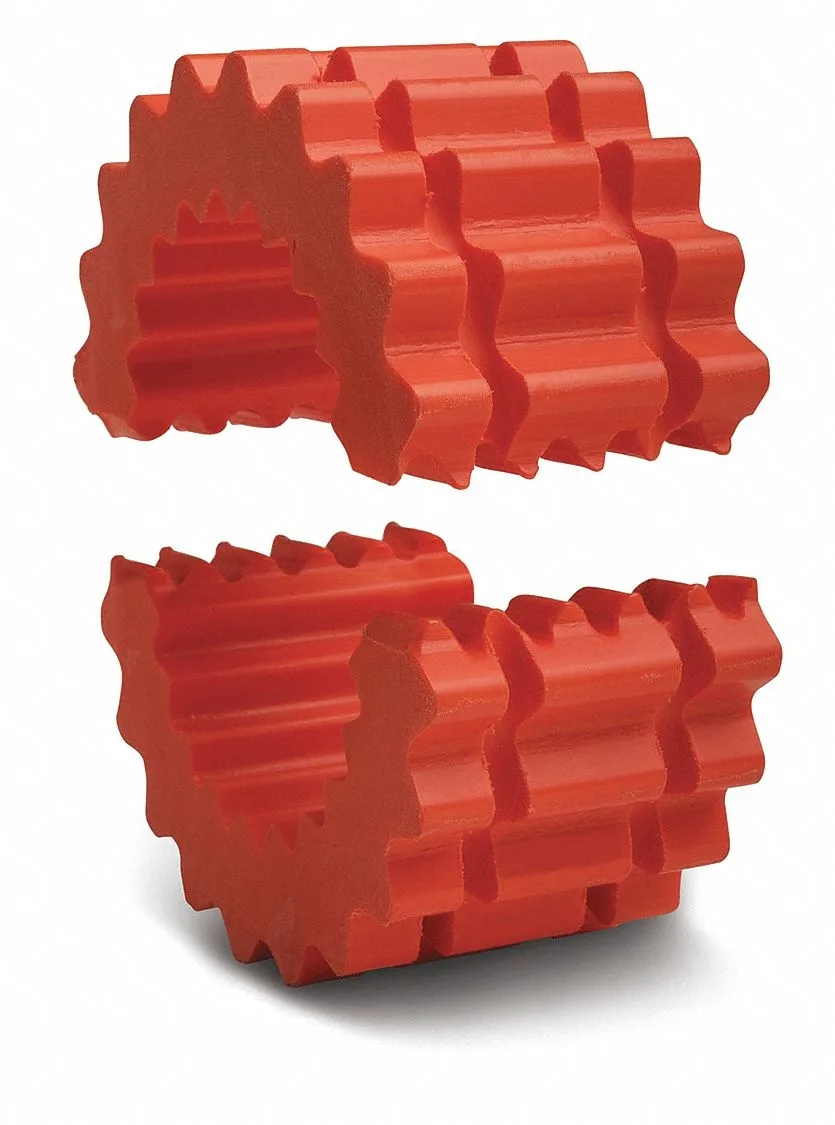

Two-Piece Hytrel Construction for Easy Maintenance

The new 2-piece insert design allows installation or replacement without moving the connected equipment. An outside diameter of 7 1/16 inches and an insert width of 3 7/16 inches define the space required inside the coupling flanges. Torsional stiffness of 100,000 in-lb per radian provides predictable response under load.

Rated for 11,350 in-lb Maximum Torque at 3,600 RPM

This single rating determines whether the insert matches the drivetrain's peak demand. Exceeding either the torque limit or the speed limit risks premature failure. Buyers needing higher torque capacity or higher rotational speed must select a larger Sure-Flex size.

Highlights

  • Handles high torque loads with 11,350 in-lb capacity
  • Operates up to 3,600 RPM for demanding machinery
  • Withstands 250°F in harsh industrial environments
  • Accommodates .25° angular and .02" parallel misalignment
  • Delivers 18 hp at 100 RPM for compressors and pumps

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum speed and torque for the 10HS Sure-Flex insert?

The coupling insert is rated for a maximum speed of 3,600 RPM and a maximum torque of 11,350 in-lb.

What are the outside diameter and width of this coupling insert?

The insert has an outside diameter of 7 1/16 in and an insert width of 3 7/16 in.

How is the Hytrel insert installed into the coupling hubs?

This 2-piece insert design fits between the hub teeth; ensure the two halves seat fully in the grooves to prevent vibration.
