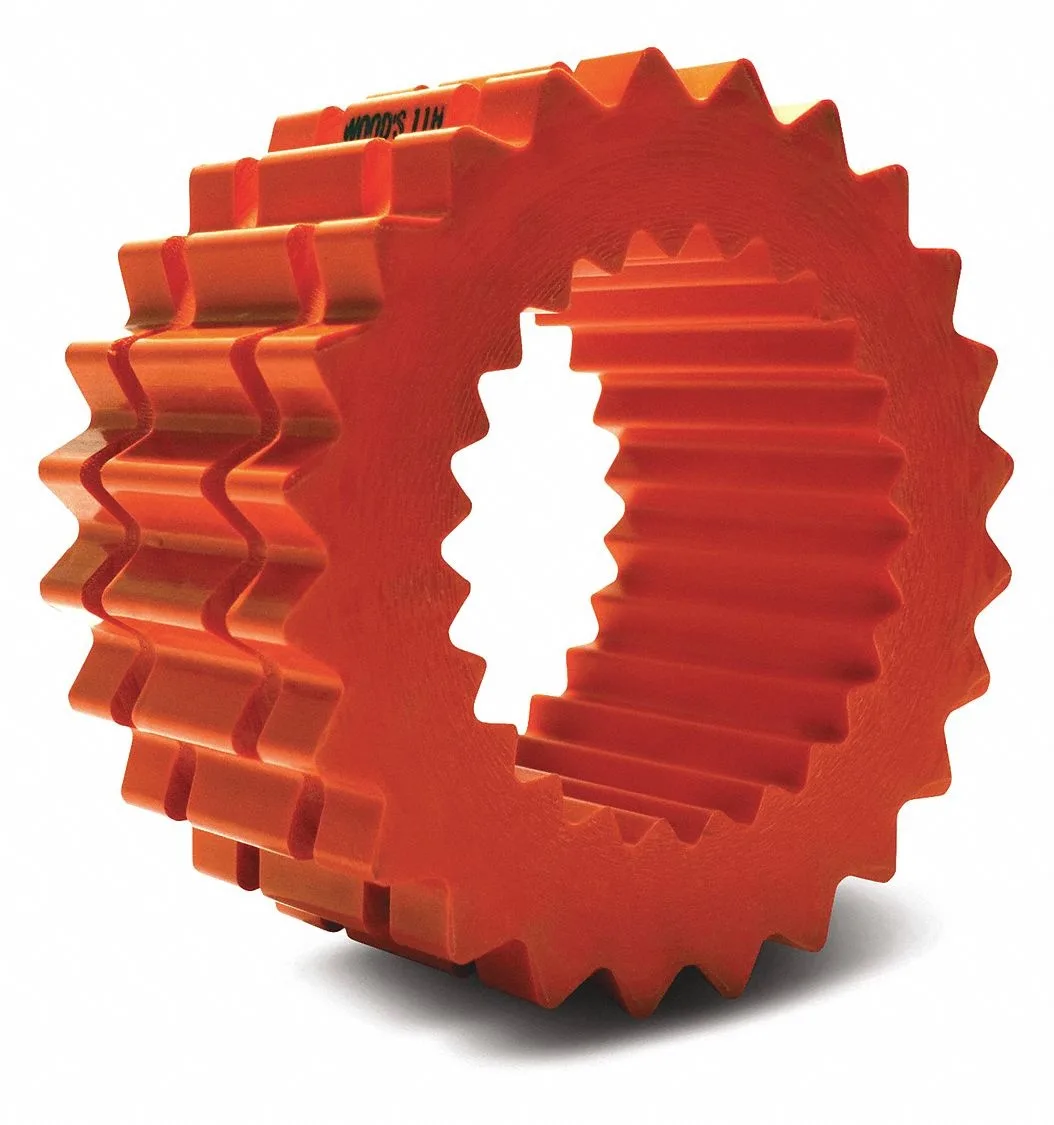

Hytrel sleeve coupling insert, solid one-piece construction, inch dimensions

Tb Wood'S

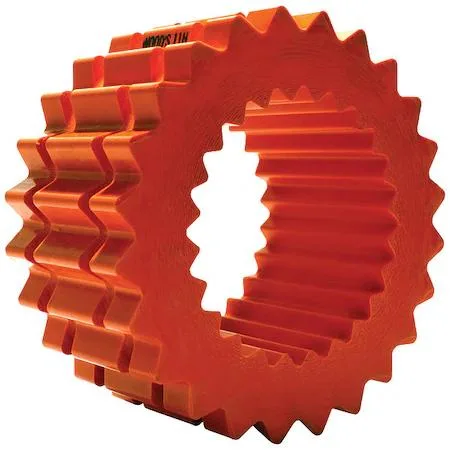

Tb Wood'S 10H Sure-Flex Sleeve Coupling Insert Hytrel

SKU CH-VCBS-F0Q5F

Hytrel sleeve coupling insert handles 11,350 in-lb torque at 3,600 RPM for compressors, conveyors, motors, fans, mixers and pumps

  • Handles high torque loads up to 11,350 in-lb
  • Operates at speeds up to 3,600 RPM for demanding applications
  • Hytrel material withstands temperatures up to 250°F
  • New 1-piece solid construction ensures reliable power transmission
  • Accommodates angular misalignment of 0.25 degrees and parallel misalignment of 0.02 in

Coupling Insert for Power Transmission

The TB Woods 10H Sure-Flex sleeve coupling insert is built for inch-system machinery. It fits compressors, conveyors, electric motors, fans, blowers, mixers and pumps. The Hytrel insert handles a maximum torque of 11,350 in-lb and runs at speeds up to 3,600 RPM. Buyers needing a different bore size or a metallic insert must look elsewhere.

One-Piece Solid Hytrel Construction

This insert uses a new one-piece solid design made from Hytrel material. It tolerates angular misalignment of 0.25 degrees and parallel misalignment of 0.02 in. The outside diameter measures 7 1/16 in with an insert width of 3 7/16 in. Torsional stiffness is rated at 100,000 in-lb/rad. The solid construction simplifies installation and replacement on existing hubs.

Thermal and Power Ratings

Maximum operating temperature reaches 250 degrees F for demanding environments. At 100 RPM the insert transmits 18 hp. The Hytrel material dampens vibration to reduce noise during normal operation. Power draw follows the connected motor load without adding parasitic loss. Units requiring higher temperature limits or different speed ratings need an alternative solution.

Highlights

  • Handles high torque loads up to 11,350 in-lb
  • Operates at speeds up to 3,600 RPM for demanding applications
  • Hytrel material withstands temperatures up to 250°F
  • New 1-piece solid construction ensures reliable power transmission
  • Accommodates angular misalignment of 0.25 degrees and parallel misalignment of 0.02 in

Specifications

No published specifications for this item yet.

Questions about this item

What does the 3,600 RPM limit mean for the Sure-Flex sleeve coupling insert?

The 3,600 RPM maximum speed caps the operating range; running above it risks insert failure and reduced power transmission.

What shaft spacing does the 7 1/16 in outside diameter require?

The 7 1/16 in outside diameter sets the minimum centre distance between connected equipment for proper sleeve clearance.

How is the Hytrel insert installed, and what misalignment step is often missed?

Slide the one-piece solid insert between the two flanged hubs, then verify angular offset stays within 0.25 degrees and parallel offset within 0.02 in.
