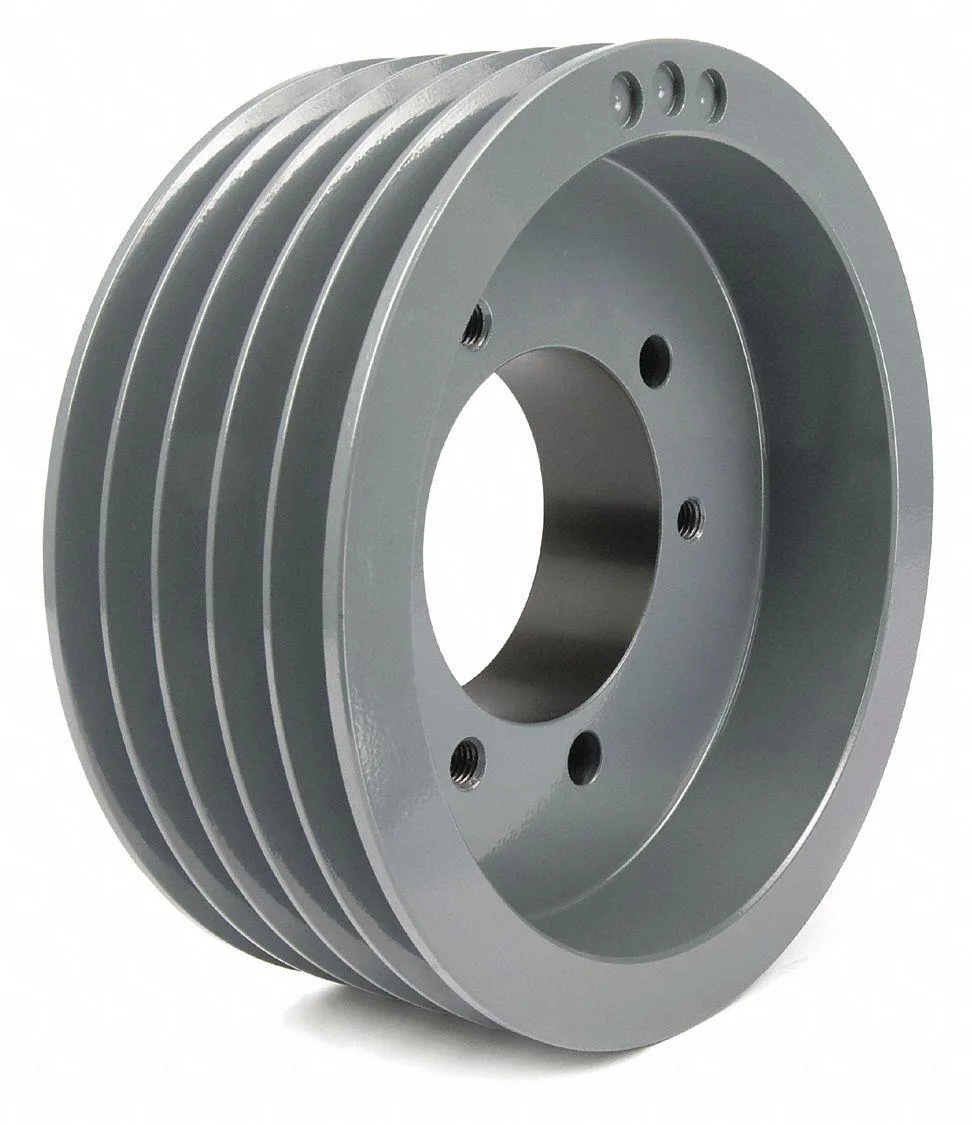

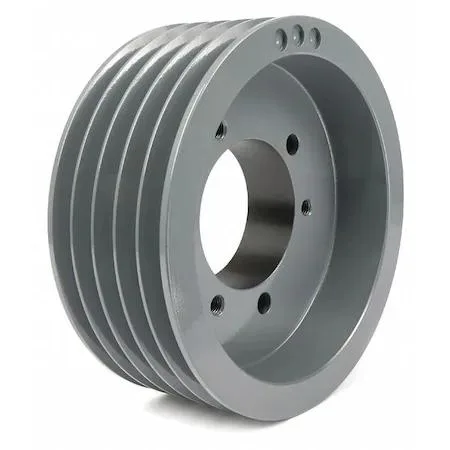

A metallic V-belt pulley with five grooves and a tapered bushing bore

Tb Wood'S

Tb Wood'S 1005C 10 in C CX v-belt

SKU CH-HAN0-DQ3NA

A 10-inch C/CX V-belt pulley with a quick-detachable bushed bore for five grooves

  • TypeSheaves & Pulleys
  • 10 in C and CX pitch diameter fits standard V-belts
  • Quick Detachable bushing allows fast 7/8 in to 3-1/2 in bore changes
  • Five grooves multiply power transmission capacity per pulley
  • TB Woods construction delivers reliable industrial performance
  • New condition ensures full service life from installation

TB Wood'S 1005C C CX V-Belt Pulley

This cast-iron sheave accepts C and CX section V-belts on a 10 inch pitch diameter. It uses a quick-detachable bushing system that fits bores from 7/8 inch to 3-1/2 inch. The five-groove design distributes load across multiple belts for heavy-duty industrial drives.

Upgrade From Single Or Worn Groove Sheaves

Replacing a single-groove or worn pulley with this five-groove model increases torque capacity and reduces belt slip. The jump is worth it when existing drives show groove wear, belt turnover or insufficient power transmission for the application.

Sustained Load Behaviour

The quick-detachable bushing maintains concentric grip under continuous torque, preventing hub fretting on the shaft. Multiple grooves share tension evenly so belt stretch remains uniform during long runs, reducing the need for frequent re-tensioning.

Highlights

  • 10 in C and CX pitch diameter fits standard V-belts
  • Quick Detachable bushing allows fast 7/8 in to 3-1/2 in bore changes
  • Five grooves multiply power transmission capacity per pulley
  • TB Woods construction delivers reliable industrial performance
  • New condition ensures full service life from installation

Specifications

TypeSheaves & Pulleys

Questions about this item

What bore range does the 1005C sheave's quick-detachable bushing accept?

The quick-detachable bushing fits shafts from 7/8 in to 3-1/2 in, matching the supplier title for this 5-groove C/CX sheave.

Which steps ensure the quick-detachable bushing seats correctly on the 1005C sheave?

Clean the shaft and bushing bore, align the keyway, tighten the cap screws evenly in a star pattern to the recommended torque, then re-check alignment after the first run-in period.

When should the C/CX belts on this 10 in pitch-diameter sheave be inspected or replaced?

Check belt tension and wear at every scheduled shutdown; replace belts that show cracking, fraying, glazing or have stretched beyond the take-up allowance.
