Black open-frame 6U wall-mount rack, 18in deep, swing gate, square and tapped holes

TAURKENAM

TAURKENAM 6U Wall Mount Server Rack 18in Depth Swing Gate Square&Tapped Holes Black

SKU CH-PJET-B19WF

A 6U open-frame wall rack with an 18-inch depth and 180-degree swing gate for 19-inch equipment

  • TypeSee Description
  • Holds 19-inch gear with 6U vertical space
  • 180-degree swing gate gives rear access from both sides
  • Open frame design aids airflow and equipment access
  • Cold-rolled steel handles 110 lb static load and 55 lb sliding load
  • Mounting holes spaced 16 inches apart accept square or tapped rails

6U Wall Mount Rack for 19in Gear

This 6U wall mount rack holds 19inch network, AV or IT equipment in a compact open frame. Square and tapped holes are interchangeable so you can match the rail kit you already own. It suits installers who need a shallow 18inch depth cabinet that swings away from the wall. It is not for builders who need deeper enclosures or higher static-load ratings.

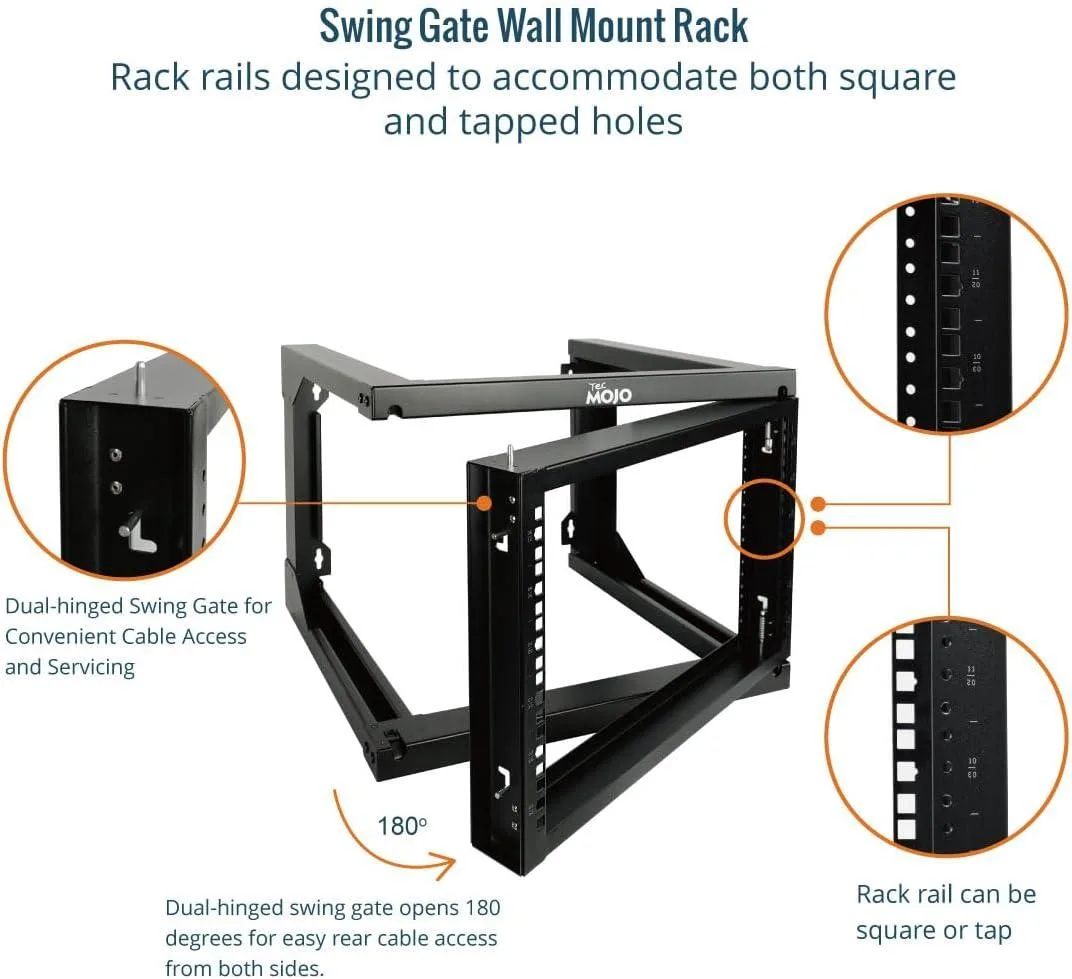

Open Frame Thermals and Swing Access

The open frame structure promotes passive heat dissipation around mounted devices without added fans. A 180 degree swing gate lets you reach rear cabling from either side while the rack stays secured to the wall. Cold rolled steel with electrostatic powder coat resists rust during long-term indoor use. It is not for sites that require locked doors or active cooling ducts.

Mounting Pattern and Load Limits

Mounting holes sit 16inches apart on centre and accept standard lag bolts or anchors supplied by the installer. Static capacity is 110lbs and sliding load is 55lbs when the gate is extended. The frame complies with EIA/ECA-310-E hole spacing for 19inch gear. It is not for walls that cannot support the rated loads or for racks deeper than 18inches.

Highlights

  • Holds 19-inch gear with 6U vertical space
  • 180-degree swing gate gives rear access from both sides
  • Open frame design aids airflow and equipment access
  • Cold-rolled steel handles 110 lb static load and 55 lb sliding load
  • Mounting holes spaced 16 inches apart accept square or tapped rails

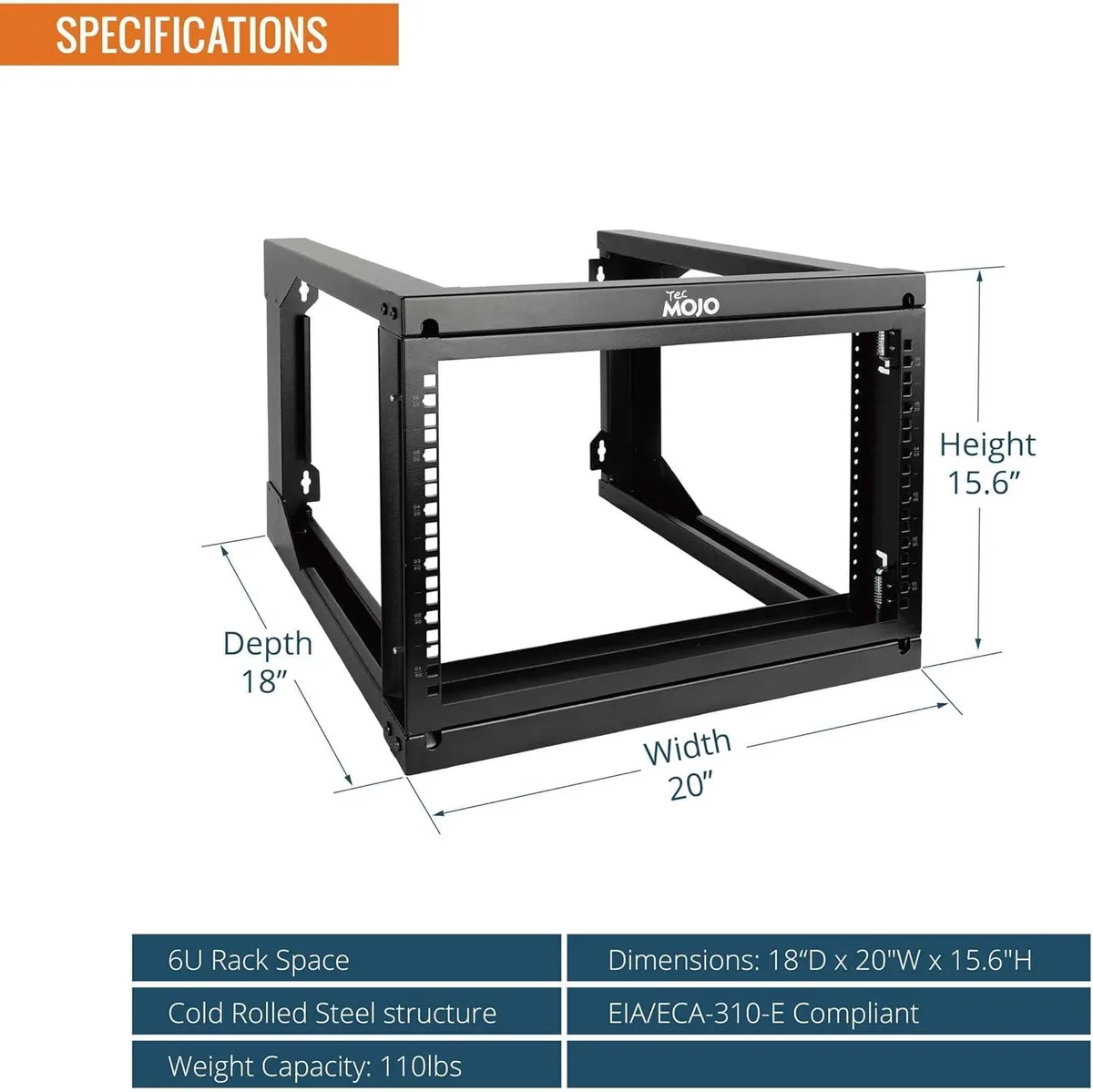

Specifications

TypeSee Description

Questions about this item

How do I mount the 6U rack to the wall and what step is often missed?

Use the supplied drilling template to mark the 16inch apart mounting holes, then secure the rack with the included hardware; the step often missed is checking that the wall anchors match the 110 lb static load rating before tightening.

What maintenance or replacement will the rack need over time?

The electrostatic powder coat on the cold rolled steel resists rust, so no finish maintenance is required; only inspect the swing gate hinges and mounting bolts periodically for tightness under the 55 lb sliding load.

What limit appears first when the rack runs fully loaded for long periods?

The 55 lb sliding load capacity is the first limit reached under sustained use, so total equipment weight on the rails must stay at or below 25 kg to avoid deformation.
