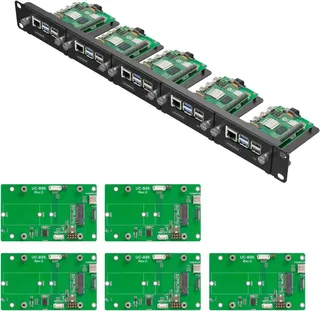

Silver 1U 19-inch rack tray holding five Raspberry Pi 5 boards with NVME adapter cards mounted underneath

TAURKENAM

TAURKENAM 1U 19" Rack Mount for Raspberry Pi 5 with 5 NVME Adapters

SKU CH-5EED-4B7NH

19-inch 1U rack holds five Raspberry Pi 5 boards with four M.2 NVMe adapters for 2230, 2242 and 2280 drives

  • Supports M.2 NVME SSDs in 2230, 2242 and 2280 sizes
  • Compact 100x60mm adapters fit under Raspberry Pi 5 without blocking GPIO
  • Holds up to five Raspberry Pi 5 units in a standard 19-inch 1U rack
  • LED indicators show real-time M.2 drive activity at a glance

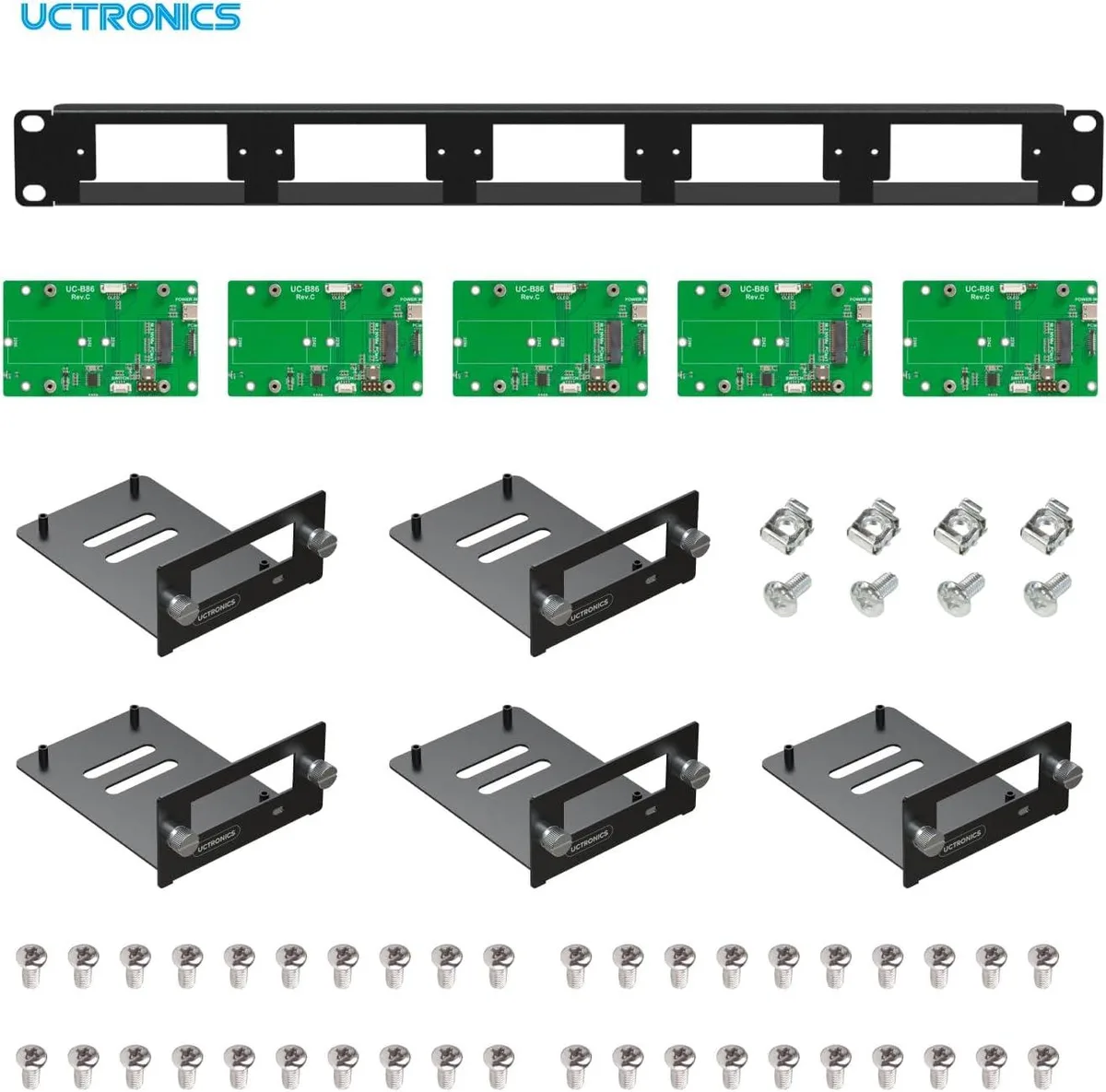

  • Includes five PCIe to M.2 NVME adapters for high-speed storage expansion

19" 1U Rack for Five Pi 5 Units

This 1U server rack holds up to five Raspberry Pi 5 boards in a standard 19-inch enclosure. It targets developers and lab managers who need dense, organised compute nodes for clustering or edge workloads. The package includes five PCIe-to-M.2 NVME adapters so each board can add fast local storage. The design keeps GPIO headers accessible for additional HATs or sensors.

PCIe Gen2 and Gen3 NVME Limits

The adapters operate with PCIe NVME Gen2 and Gen3 signalling only, so newer Gen4 or Gen5 drives will fall back to the lower speeds. M.2 form factors supported are 2230, 2242 and 2280, while other keyings or lengths will not fit the 100x60 mm adapter footprint. LED indicators show per-drive activity but do not report health metrics beyond basic blink patterns.

Five Boards and Four Drive Slots

The chassis fits five Pi 5 units yet provides only four NVME adapter slots, so one board must run without direct NVME storage or use alternative boot media. Each adapter accepts a single M.2 NVME SSD up to the 2280 length, giving each equipped node high-speed local capacity. Builders needing NVME on every node must source an extra adapter separately.

Highlights

  • Supports M.2 NVME SSDs in 2230, 2242 and 2280 sizes
  • Compact 100x60mm adapters fit under Raspberry Pi 5 without blocking GPIO
  • Holds up to five Raspberry Pi 5 units in a standard 19-inch 1U rack
  • LED indicators show real-time M.2 drive activity at a glance
  • Includes five PCIe to M.2 NVME adapters for high-speed storage expansion

Specifications

No published specifications for this item yet.

Questions about this item

How many Raspberry Pi 5 boards and NVME SSDs can the 19 inch 1U rack hold?

The rack fits up to five Raspberry Pi 5 boards and four M.2 NVME SSDs in a single 1U space.

What SSD sizes does the 100x60mm NVME adapter support under each Pi 5?

The adapter accepts 2230, 2242 and 2280 M.2 NVME drives while keeping GPIO pins free for hats or heatsinks.

What does PCIe Gen2 and Gen3 support mean for NVME drive speed in this rack?

Drives run at up to Gen3 x1 lane rates, so sequential throughput is limited to the Pi 5 PCIe link rather than the SSD maximum.
