TASCAM SS-CDR250N solid state recorder with networking
Records WAV and MP3 to SD, USB and CD with balanced XLR, RCA and coaxial digital I/O plus RS-232C and parallel control
- Solid-state recording to SD, USB or CD media
- Balanced XLR and unbalanced RCA analog I/O
- AES/EBU and S/PDIF digital I/O included
- RS-232C serial and 25-pin parallel control ports
- Optional Dante card adds networked audio operation
Solid-state recorder for broadcast

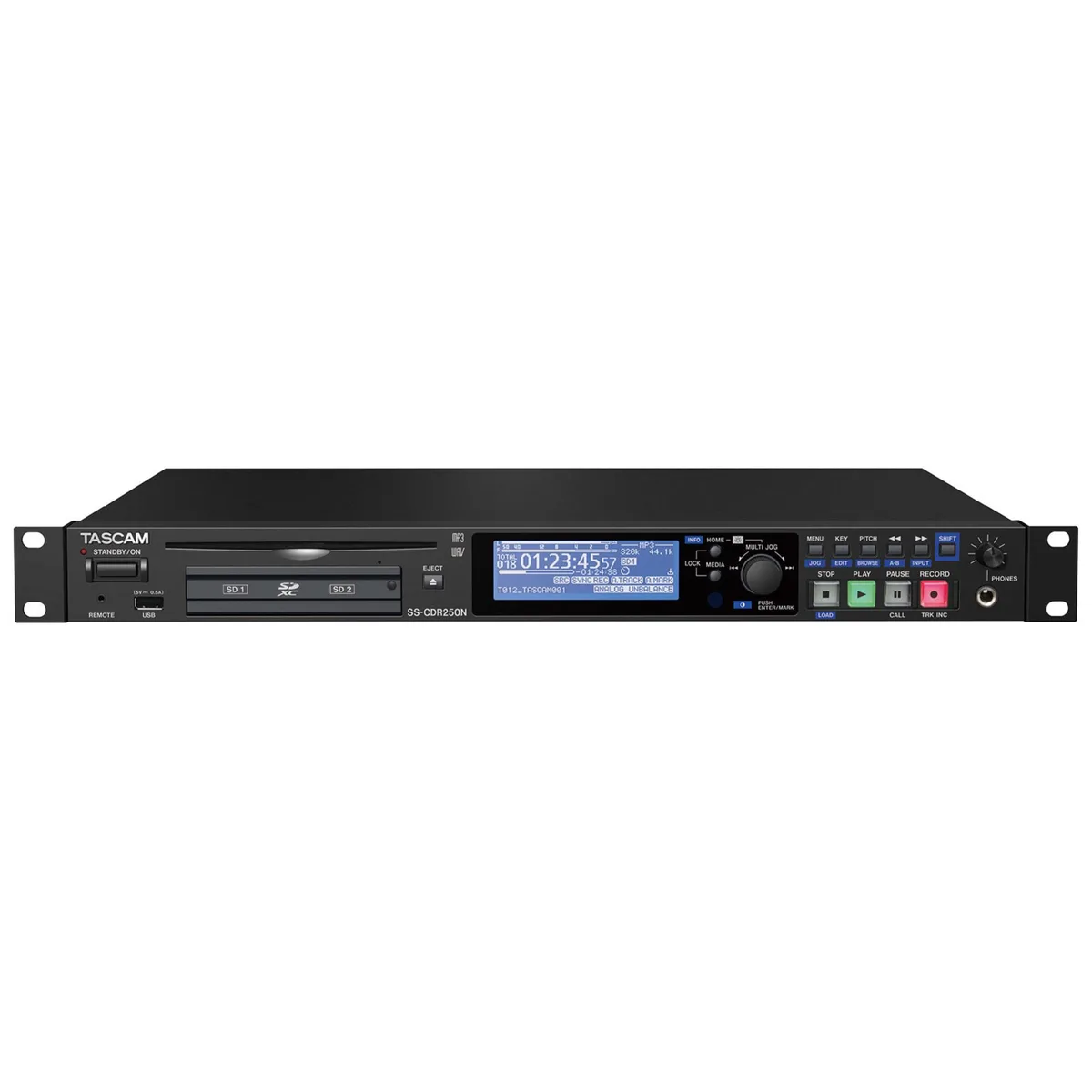

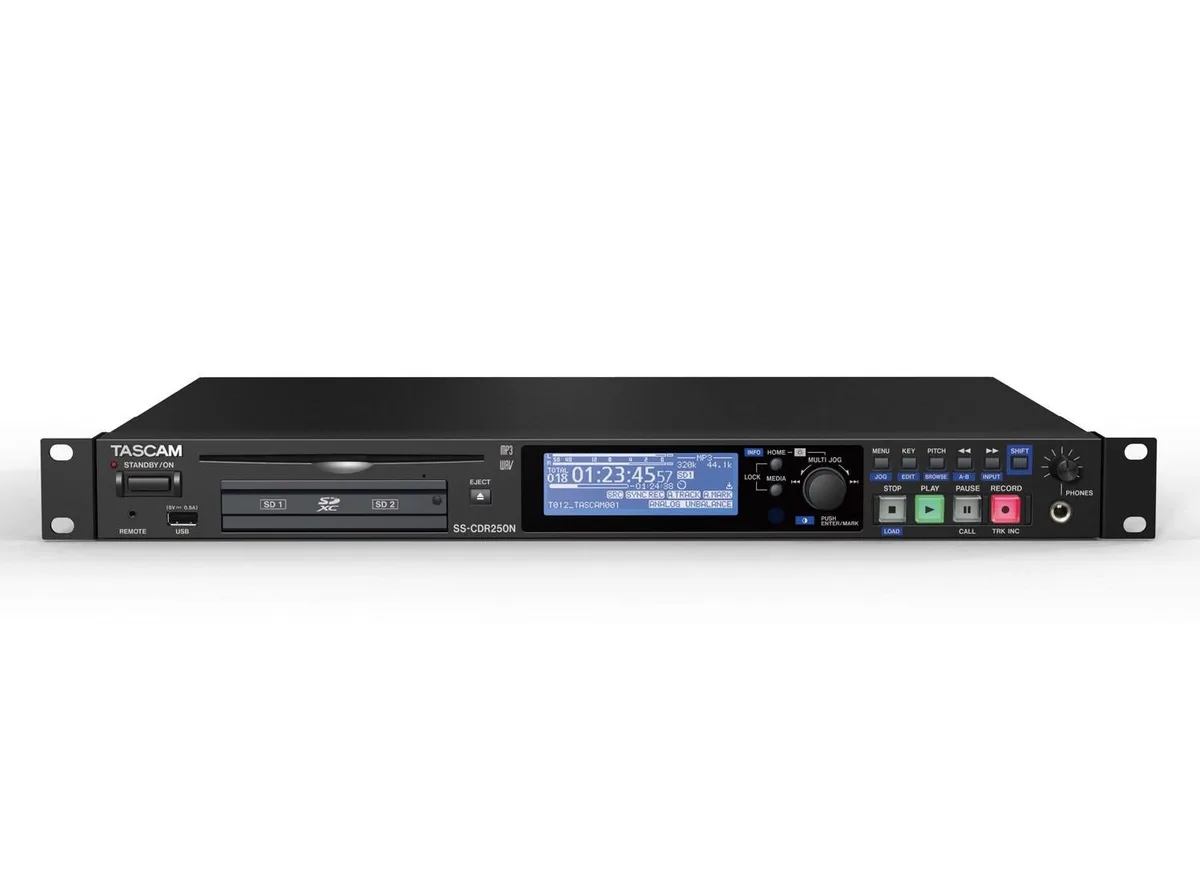

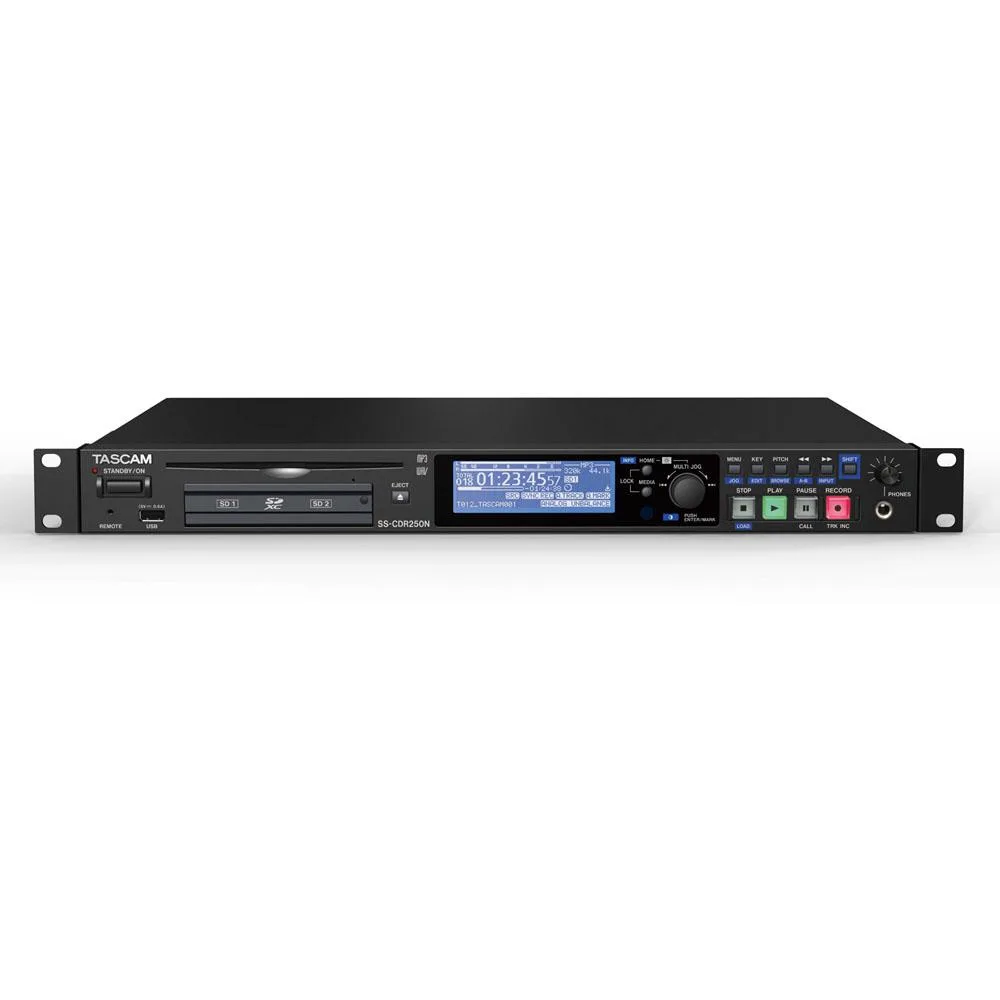

The Tascam SS-CDR250N is a one rack-space recorder built for broadcast and contractor installations. It captures audio in WAV and MP3 formats to SD, SDHC or SDXC cards, USB memory and CD-R media. Balanced XLR and unbalanced RCA analogue I/O sit alongside coaxial digital I/O and AES/EBU S/PDIF connections. An optional IF-DA2 Dante card adds networked audio capability.
Network card and automatic file protection change
The optional Dante card lets the unit join a Dante audio network for multi-channel distribution. A sample-rate converter on digital inputs handles mismatched sources without extra hardware. Automatic file close writes the recording every two seconds, protecting against data loss if power fails. Pre-record captures the input buffer so the first moments are never missed, while auto cue and auto ready provide instant track playback.
Rack installation with parallel and serial control
The recorder fits a single rack space and offers a 25-pin parallel port plus RS-232C serial control for integration with automation systems. Flash start enables immediate playback on trigger. Balanced and unbalanced analogue connections simplify wiring to mixers or amplifiers. Users without Dante networking needs can skip the optional card and still use all core recording and playback functions.
Highlights
- Solid-state recording to SD, USB or CD media
- Balanced XLR and unbalanced RCA analog I/O
- AES/EBU and S/PDIF digital I/O included
- RS-232C serial and 25-pin parallel control ports
- Optional Dante card adds networked audio operation
Specifications
| Brand | Tascam |
|---|
Questions about this item
How often does the automatic file-close feature save a recording to the SD card or USB media?
The recorder saves the file every 2 seconds to prevent data loss if power is interrupted during recording.
Which control interface limits the number of parallel commands I can send at once?
The 25-pin parallel port accepts up to 25 discrete control lines for transport and track functions.
How much heat does the 1U chassis produce when recording to CD-R and streaming Dante audio all day?
The unit uses convection cooling with no internal fan, so it runs silently and adds minimal heat to a rack.
