SYSRACKS SRW 27.600B 27U Wall Mount Server Rack 24-Inch Deep

27U Wall-Mount Rack for 19-Inch Gear

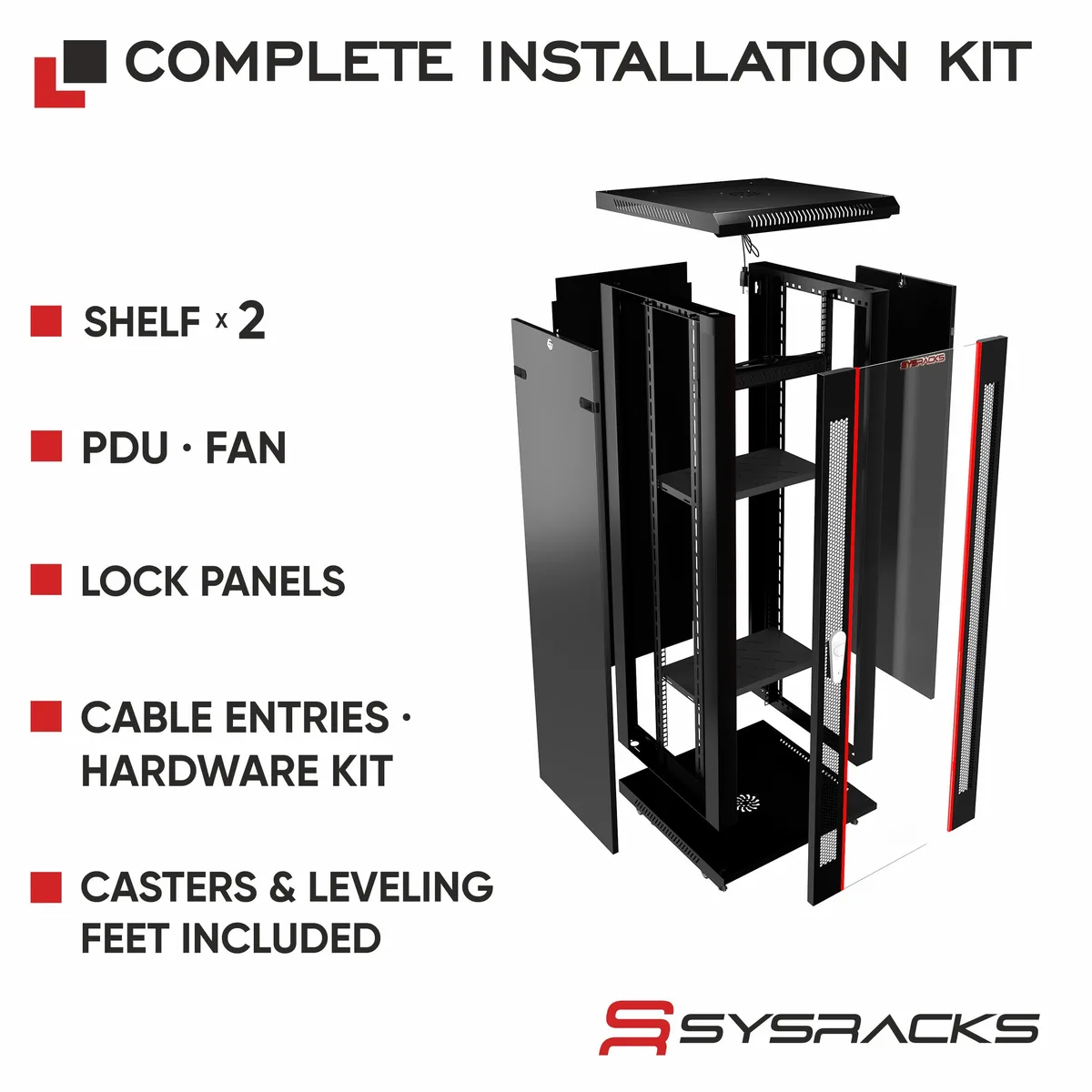

The SRW 27.600B is a 27U enclosure that accepts standard 19-inch EIA-310 network, AV, security and IT equipment. It mounts on a wall or stands on the floor using the included casters and leveling feet. The 24-inch deep cabinet provides 20 inches of usable depth for structured cabling layouts. Supplied accessories include an 8-outlet PDU, two vented shelves, a top-mounted fan, brush cable entries and mounting hardware valued over $110.

Load Behaviour Over Extended Use

The frame is rated for a confirmed 133 lbs when wall-mounted and up to 200 lbs when the leveling feet carry the weight on the floor. This capacity covers dense patch panels, switches and deeper servers without sagging over time. The top-mounted cooling fan runs continuously to move air through the perforated door sections, keeping internal temperatures stable during sustained operation. Locking glass front door and removable side panels maintain controlled access while preserving airflow paths.

Build Quality and Daily Implications

The black cabinet measures 24 inches wide, 24 inches deep and 52 inches high, weighing 75 lbs unloaded. Casters allow the assembled rack to be rolled into position before the leveling feet are lowered for a permanent, vibration-free stance. Brush cable entries on the top and bottom let cables pass cleanly while limiting dust ingress. Removable side panels give full access to rear cabling and equipment rails for routine maintenance or hardware swaps without disturbing the wall mount.
