Silver 5.25 inch dual bay mobile rack controller panel with two USB 3.0 ports and LED indicators

Syba

Syba SY-MRA55006 5.25" Dual Bay Mobile Rack Controller Panel

SKU CH-0C0S-J45W2 MPN SY-MRA55006

Dual 5.25" bays hold 2.5" and 3.5" SATA drives with a patented NSS connector rated for 50000 hot-swap cycles and front USB 3.0 ports

  • Compatibility5.25" Drive Bay
  • TypesUSB 3.0 Front Panel
  • FeaturesAccommodates both 2.5" and 3.5" Hard Drives Unique anti-shoc
  • Hot-swap drives safely with a patented NSS connector rated for 50000 cycles
  • Fit both 2.5 and 3.5 SATA drives in a single 5.25 bay
  • Access two USB 3.0 ports on the front panel for quick connections
  • Tool-free mechanism lets you insert or eject drives without screws
  • LED indicators show power status and drive activity at a glance

Dual-Bay 5.25" Mobile Rack Controller

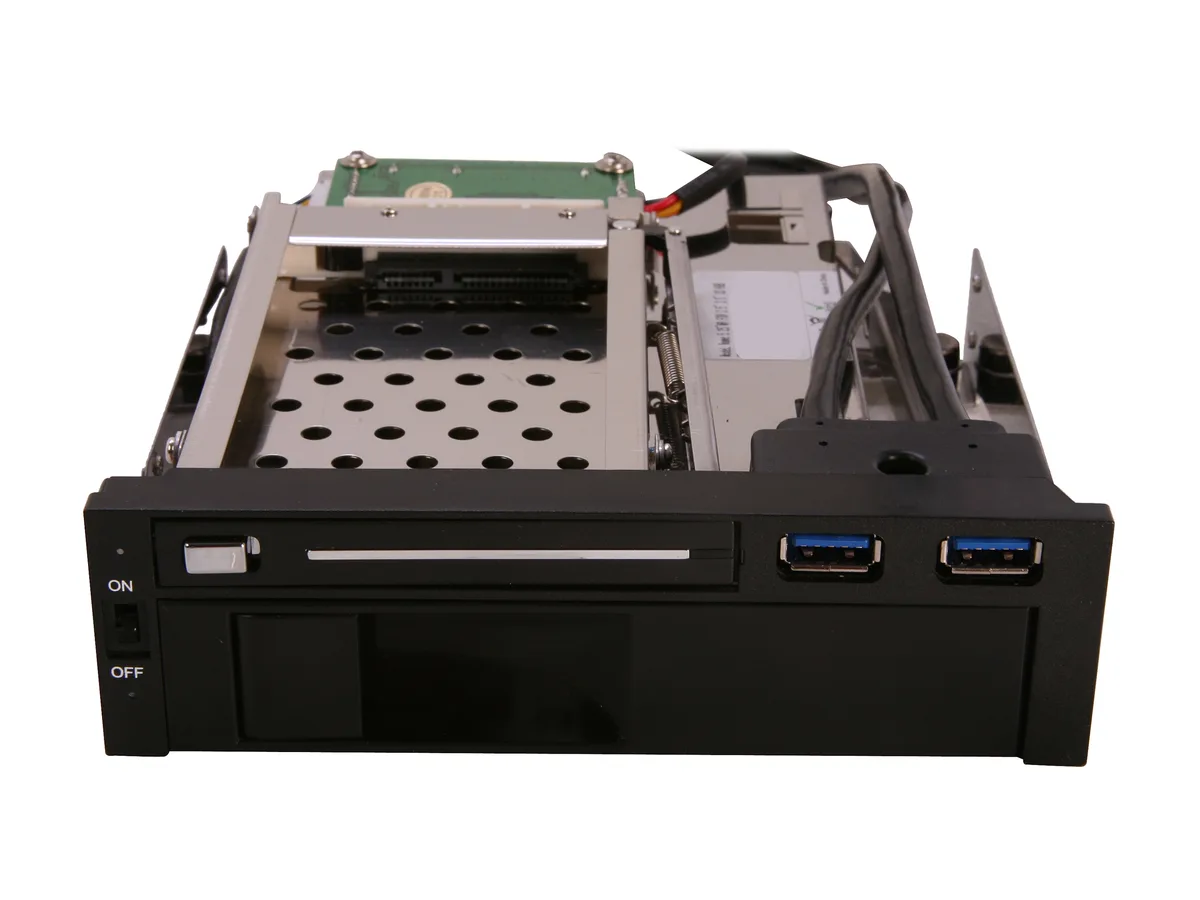

The Syba SY-MRA55006 fits a standard 5.25-inch drive bay and holds two drives simultaneously. It accepts both 2.5-inch and 3.5-inch SATA hard drives using a patented tool-free mechanism. A unique anti-shock design protects the drives during operation. The front panel adds two USB 3.0 ports for convenient external connectivity.

Suits Builders Adding Hot-Swap Storage

This panel suits system builders who want front-access hot-swap bays for SATA drives without using external enclosures. The NSS connector is rated for over 50000 insertion cycles, supporting frequent drive changes. Builders who need support for drive interfaces other than SATA, or who have no 5.25-inch bay available, should look at other form factors.

Patented NSS Connector With 50000-Cycle Rating

The single specification that decides fit is the patented NSS connector rated for over 50000 hot-swap cycles. This mechanism enables tool-free drive insertion and ejection with anti-shock protection. If the drive swap frequency or the connector durability requirement does not match this rating, the panel will not meet the workload demand.

Highlights

  • Hot-swap drives safely with a patented NSS connector rated for 50000 cycles
  • Fit both 2.5 and 3.5 SATA drives in a single 5.25 bay
  • Access two USB 3.0 ports on the front panel for quick connections
  • Tool-free mechanism lets you insert or eject drives without screws
  • LED indicators show power status and drive activity at a glance

Specifications

BrandSYBA
ModelSY-MRA55006
Compatibility5.25" Drive Bay
TypesUSB 3.0 Front Panel
FeaturesAccommodates both 2.5" and 3.5" Hard Drives
Unique anti-shock Design
Patented Tool-free Mechanism
NSS Connector Gives Over 50,000 Cycle Hot Swaps
LED IndicatorsPower On/OffHDD ActivityFront Panel:3.25" SATA I/II/III HDD Mobile Rack2.5" SATA I/II/III HDD Mobile Rack2 USB 3.0 PortsHDD Power Switch (Controls Both HDD)Back Panel:Built-in USB 3.0 20-pin Header Cable (24")SATA Data ConnectorsSATA Power C
Shipping weight0.66 kg
Package size226 × 178 × 56 mm

Questions about this item

How much heat or noise does the dual bay produce when drives run all day?

The passive anti-shock bays have no fan, so they add no audible noise and rely on case airflow to dissipate drive heat.

What must my PC already have for the SY-MRA55006 to function?

A free 5.25-inch front bay, two internal SATA data cables, two SATA power connectors, and a motherboard USB 3.0 header for the front ports.

Will my older 3 Gbps SATA hard drives work in these bays?

Yes, the SATA I/II/III backplane is backward compatible, so 1.5 and 3 Gbps drives operate normally alongside newer 6 Gbps models.
