SXDOOL Ver005 GPU Mining Breakout Board + 12x 6-Pin to 6+2Pin PCIe Cables

Breakout Board for GPU Mining

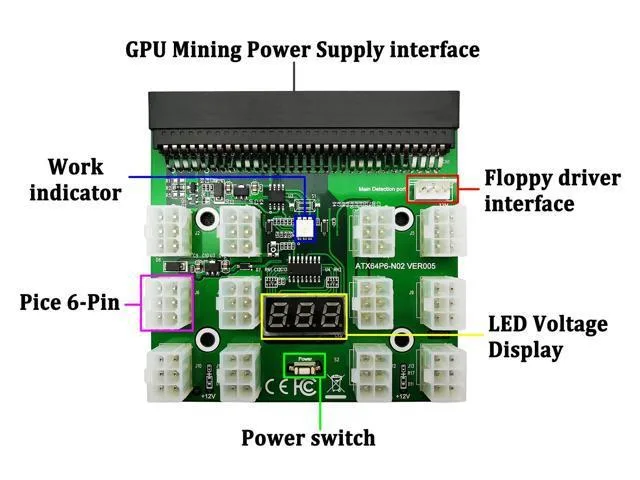

The SXDOOL Ver005 breakout board connects a compatible server power supply to up to twelve graphics cards. It includes a green adapter board with an LED voltage display, a power switch and a work indicator. Twelve male-to-male cables link the board's 6-pin outputs to each card's 8-pin (6+2) connector. The board is rated for a maximum power draw of 1600W.

Suits Multi-GPU Mining Builds

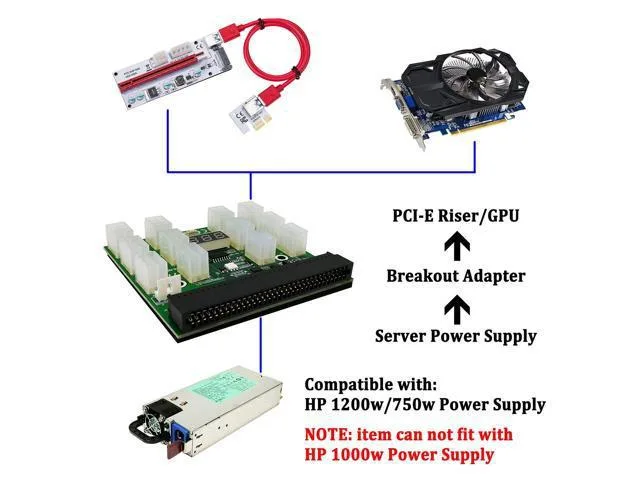

This kit suits builders running twelve GPUs from a single HP 1200W or 750W server PSU such as the DPS-1200FB, DPS-750RB or DL580 models. It is not for systems that need more than twelve card connections or that use an incompatible HP 1000W unit like the 379123-001 or 403781-001. Buyers wanting a different cable length or wire gauge should look elsewhere.

Check PSU Model and Power Limit

Before ordering, verify that your power supply matches one of the listed compatible part numbers such as 656364-B21, 441830-001, 437572-B21, PS-2751-5Q, HSTSN-PL12, DPS-700LB, PS-2112-5L or DL580. Confirm the total system draw will not exceed the 1600W board rating. Ensure each graphics card accepts an 8-pin (6+2) PCIe power connector.
