Silver 120mm all-metal AC fan with two-pin connector

SXDOOL

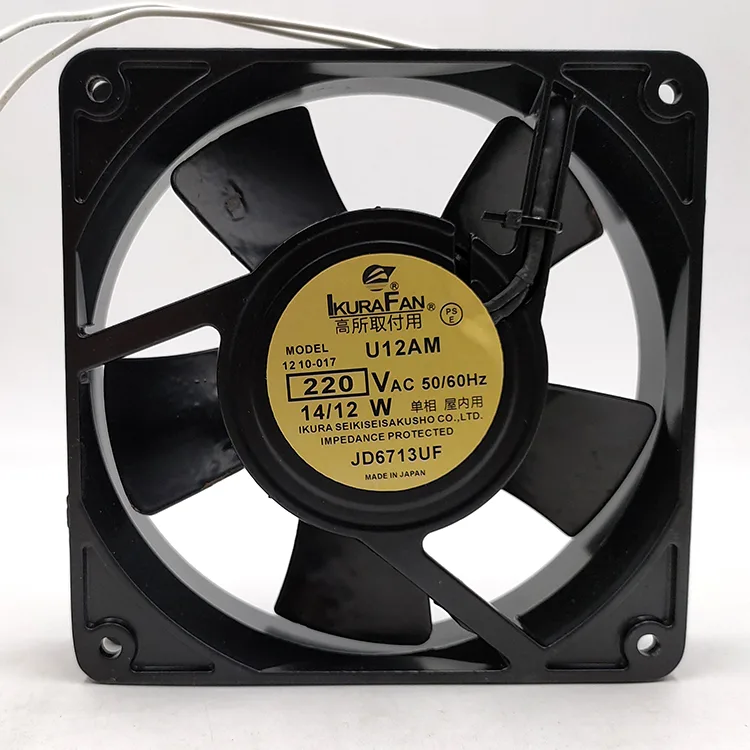

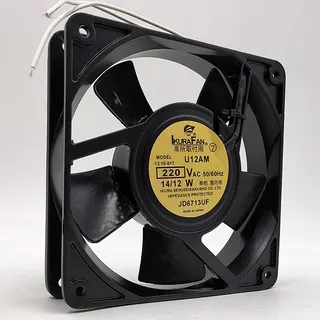

SXDOOL u12am 120mm 220V 14/12W case fan

SKU CH-28CY-R3EXS MPN u12am

120 mm AC case fan running on 220 V with dual-speed 14/12 W motor, 2600 rpm airflow of 75 cfm, double-ball bearing rated 40000 hours from -20 to 150 °C

  • TypeCase Fan
  • Bearing Type2 Ball
  • Power Connector2 Pin
  • High-temperature operation from -20°C to 150°C for harsh environments
  • Dual-ball bearing rated for 40,000 hours of continuous use
  • 220 V AC direct power eliminates need for separate PSU
  • Locked-rotor protection prevents damage if airflow is blocked
  • 75 CFM airflow at 2,600 RPM with 40 dB noise

AC 220V 120mm metal case fan

The SXDOOL u12am is a 120mm square case fan built with an all-metal frame and dual-ball bearings. It connects directly to 220V AC mains through a two-pin plug and draws 14 watts on high speed or 12 watts on low speed. The rotor includes locked-rotor protection for added safety.

Suited for industrial cabinets

This unit fits builders who need a fan that can run continuously in ambient temperatures up to 150°C and survive 40 000 hours of operation. It is not for standard PC chassis that rely on 12V DC headers or PWM control, nor for noise-sensitive rooms where 40 dB at 2 600 rpm would be intrusive.

220V AC mains voltage decides compatibility

The single specification that determines fit is the 220V AC input; the fan cannot be powered from a motherboard header or a typical PC power supply. If your enclosure provides 220V AC and accepts a 120mm by 25mm frame, the u12am delivers 75 CFM airflow at 8.5 m/s wind speed with 0.16 in-H₂O static pressure.

Highlights

  • High-temperature operation from -20°C to 150°C for harsh environments
  • Dual-ball bearing rated for 40,000 hours of continuous use
  • 220 V AC direct power eliminates need for separate PSU
  • Locked-rotor protection prevents damage if airflow is blocked
  • 75 CFM airflow at 2,600 RPM with 40 dB noise

Specifications

TypeCase Fan
Bearing Type2 Ball
Power Connector2 Pin

Questions about this item

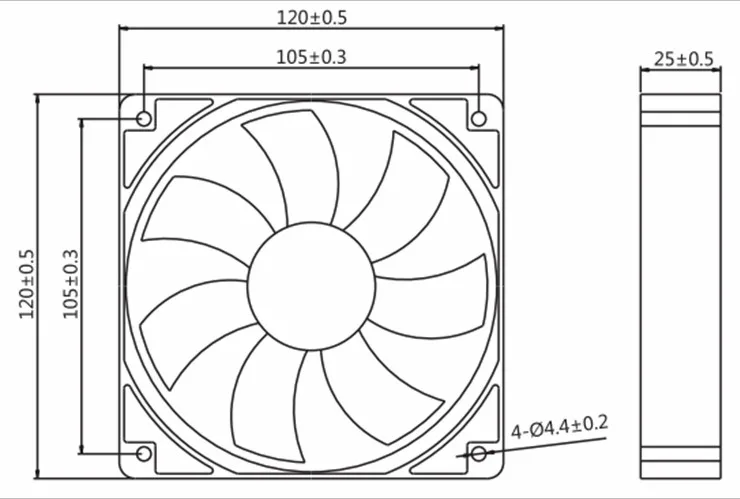

What are the mounting hole dimensions for the 120mm metal frame?

The fan measures 120 by 120 by 25 mm with standard 120 mm mounting spacing.

How do I wire the 2-pin connector to a 220V AC supply?

Connect the two leads directly to 220 V AC mains; no polarity is required.

When should I expect to replace the double ball bearing?

The bearing is rated for 40000 hours of continuous operation.
