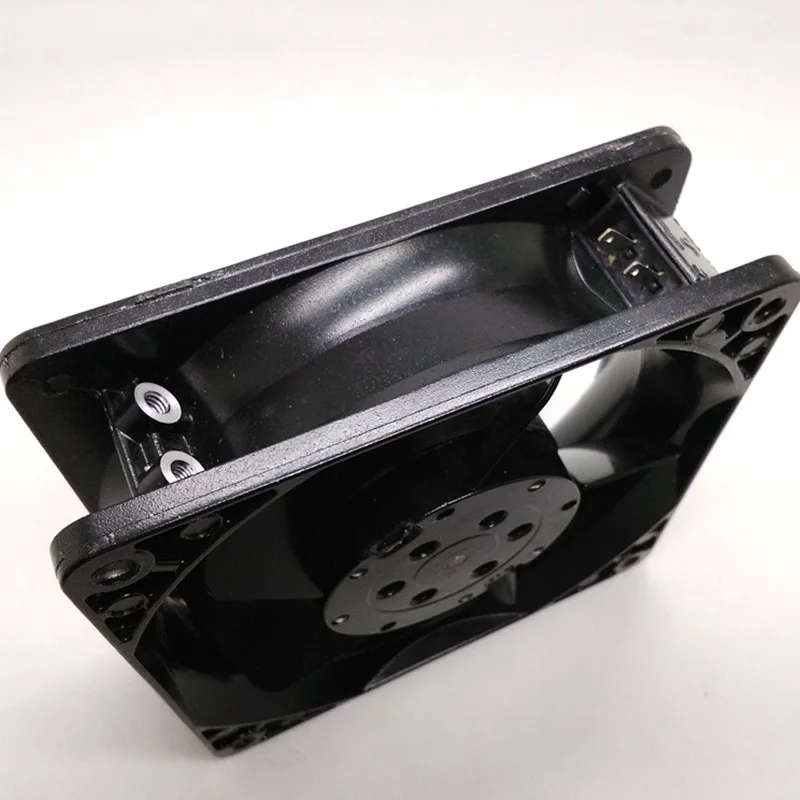

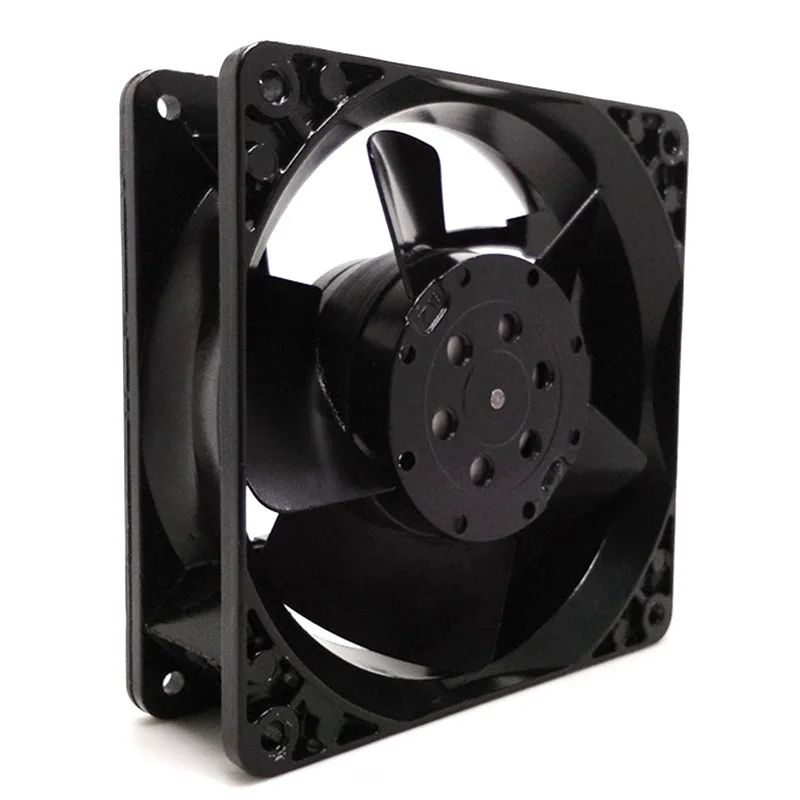

Black metal 120mm AC case fan 38mm thick with two guards and screws

SXDOOL

SXDOOL TYP4600N 120mm 38mm 115V AC case fan

SKU CH-D79A-R4X01 MPN TYP4600N

AC 115 V axial fan with metal housing, 120 mm × 38 mm, 3100 RPM, 180 m³/h airflow and 45–50 dBA noise

  • Fan Counts1 Fan
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness38mm
  • Bearing Type2 Ball
  • RPM3000-3499 RPM
  • High airflow of 180 m³/h for effective cooling
  • Metal housing and impeller for durable operation
  • 2-ball bearing rated for continuous high-speed use
  • 115 V AC power with simple two-pin connector
  • Includes two guards and mounting screws for easy install

Industrial AC cooling fan

The SXDOOL TYP4600N is a 120 mm square axial fan built for equipment that runs on 115 V AC mains power. Its 38 mm thick full-metal housing and dual-ball bearing suit industrial enclosures, server racks or custom ventilation projects where a DC supply is not available. Buyers needing a standard PWM or voltage-controlled DC case fan for a motherboard header cannot use this unit.

180 m³/h airflow at 3100 RPM

At the rated 3100 RPM the fan moves 180 m³/h of air while drawing 18 W, placing it in the 3000-3499 RPM class with a noise output of 45 to 50 dBA. The high-speed metal impeller delivers strong static pressure for restrictive grilles or filters, but the sound level exceeds what most desktop builders consider acceptable for quiet workstations or bedroom PCs.

Two guards and mounting screws included

The package adds two finger guards and a screw set so the fan can be bolted securely to a chassis or duct without extra hardware. A two-pin plug provides the AC connection; no speed-control cable, LED lighting or fan-controller software is supplied, so integration remains a purely mechanical and electrical task.

Highlights

  • High airflow of 180 m³/h for effective cooling
  • Metal housing and impeller for durable operation
  • 2-ball bearing rated for continuous high-speed use
  • 115 V AC power with simple two-pin connector
  • Includes two guards and mounting screws for easy install

Specifications

ModelTYP4600N
Fan Counts1 Fan
TypeCase Fan
CompatibilityCase
Fan Thickness38mm
Bearing Type2 Ball
RPM3000-3499 RPM
Noise Level45 - 50 dBA
Power Connector2 Pin
ColorBlack
LEDNon-LED

Questions about this item

Will this 115 V AC fan fit a standard PC case that uses 12 V DC fans?

No. The TYP4600N runs on 115 V AC mains power with a two-pin plug, so it cannot connect to a motherboard 12 V DC header.

How can I confirm the fan is spinning at its rated 3100 RPM after installation?

The fan has no tachometer output; you can only verify operation by feeling the 180 m³/h airflow or measuring current draw near the 18 W rating.

What exactly ships in the box and what must I source separately?

The package includes the full-metal 120 mm × 38 mm fan, two metal guards and a mounting screw set; a 115 V AC power cord or IEC lead is not supplied.
