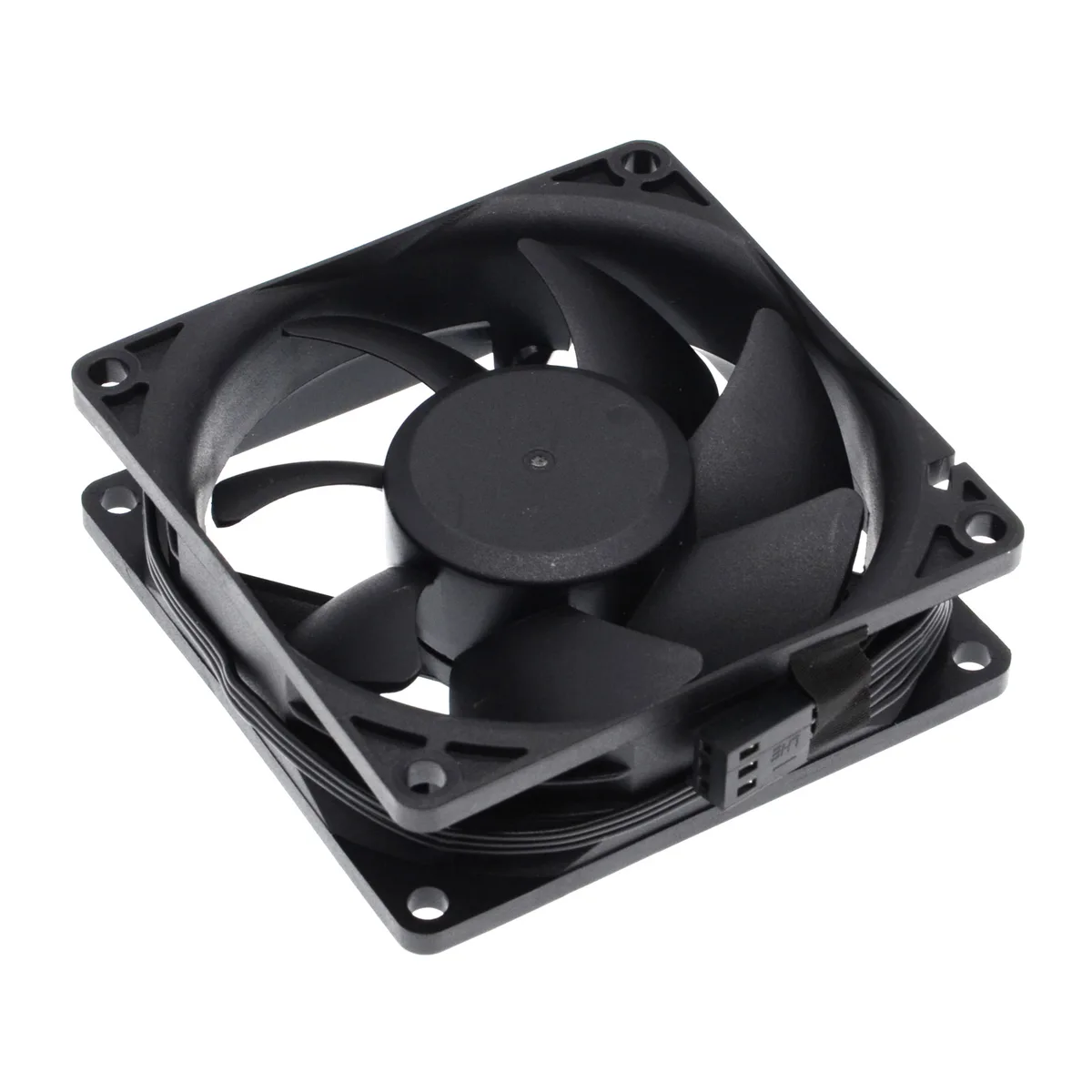

Black 80mm square case fan with IP68 rating and 3-pin connector

SXDOOL

SXDOOL SXD8025M12B 80mm IP68 dual ball 3-pin case fan

SKU CH-3P3F-ZV90J

An IP68-rated 80 mm dual-ball-bearing fan delivers 45.8 CFM at 38.5 dBA for dust-proof, moisture-proof cooling

  • Fan Size80mm
  • Bearing Type2 Ball
  • RPM3600RPM
  • Air Flow45.8 CFM
  • Noise Level38.5dBA
  • Power Connector3 Pin
  • IP68 rating blocks water and dust in harsh environments
  • Dual ball bearings deliver a projected 50000-hour lifespan
  • 8 CFM airflow at 3600 RPM for strong cooling
  • 5 dBA noise level keeps operation quiet
  • Standard 3-pin connector fits common PC and industrial systems

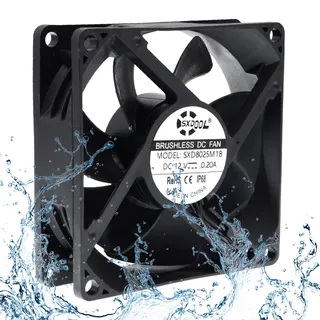

SXDOOL 80mm IP68 dual ball fan

This 80mm case fan carries an IP68 rating, making it suitable for environments where moisture and dust are present. It runs on 12V DC power and uses a standard three-pin connector for speed monitoring. The dual ball bearing design is rated for up to 50,000 hours of operation. It delivers 45.8 CFM of airflow at 3600 RPM.

Upgrade from sleeve bearing or non-IP fans

The dual ball bearing provides a longer projected lifespan than sleeve bearing alternatives, especially in continuous-use scenarios. The IP68 rating adds protection that standard case fans lack, so the jump is worthwhile when the mounting location is exposed to humidity, splashes or fine particulates. At 38.5 dBA the acoustic profile remains moderate for the airflow produced.

Check 80mm mounting points and 12V three-pin header

Verify that your chassis, power supply or device has 80mm screw spacing and can supply 12V DC to a three-pin header. The fan draws 0.20 A, so confirm the header or controller can provide that current. No LED lighting is present, and the frame thickness is 25 mm, so ensure clearance matches the installation depth.

Highlights

  • IP68 rating blocks water and dust in harsh environments
  • Dual ball bearings deliver a projected 50000-hour lifespan
  • 8 CFM airflow at 3600 RPM for strong cooling
  • 5 dBA noise level keeps operation quiet
  • Standard 3-pin connector fits common PC and industrial systems

Specifications

Fan Size80mm
Bearing Type2 Ball
RPM3600RPM
Air Flow45.8 CFM
Noise Level38.5dBA
Power Connector3 Pin
ColorBlack
LEDNo

Questions about this item

What mounting-hole spacing does the SXD8025M12B need to fit an 80 mm fan slot?

The fan body measures 80 mm square with a 25 mm thickness, so it fits standard 80 mm mounting patterns using four corner holes.

How is the 3-pin connector wired, and which step do installers often miss?

The native 3-pin plug carries 12 V DC, ground and a tachometer signal; the step often missed is confirming the pin-out before plugging it into a motherboard or fan controller.

When will the dual ball bearing need replacement under continuous use?

The manufacturer rates the dual ball bearing for up to 50000 hours of operation before replacement is recommended.
