SXDOOL 60mm square frame fan 12V 2-pin connector

SXDOOL

SXDOOL SXD6010S12M 60mm 12V 2-pin case fan

SKU CH-ZX53-G7J23

A 60 mm case fan with a 10 mm frame, 12 V two-pin power and double ball bearings rated for 80,000 hours

  • Fan Size60mm
  • Power Connector2 Pin
  • 60mm slim profile fits tight chassis spaces
  • 12V 2-pin connector powers directly from standard headers
  • Double ball bearing rated for 80,000 hours at 25°C
  • VO-grade flame-retardant frame and blades meet safety standards
  • Operates from -10°C to +70°C for wide thermal range

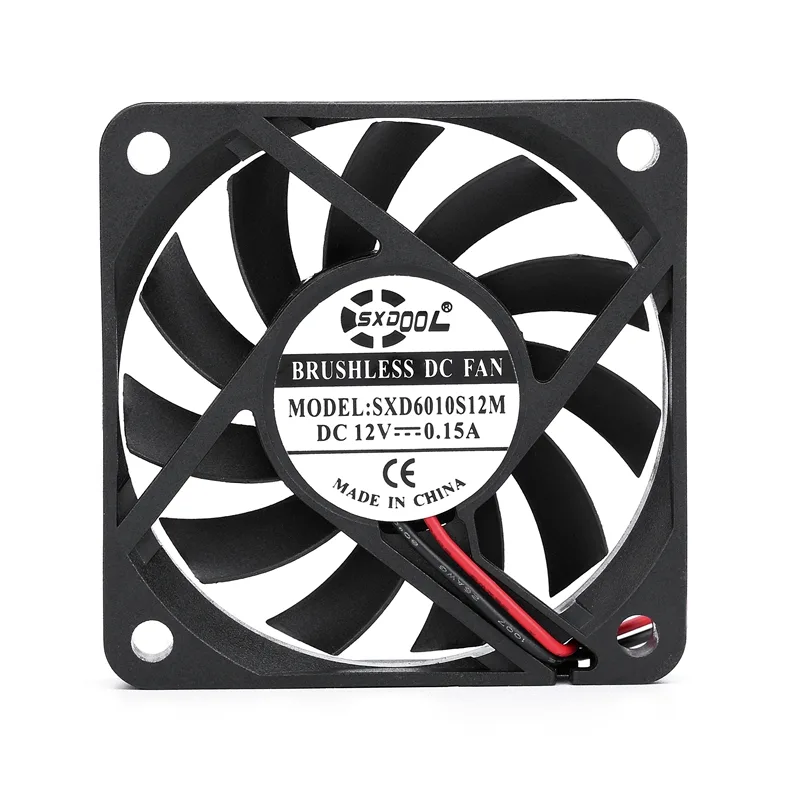

SXDOOL SXD6010S12M 60mm 12V fan

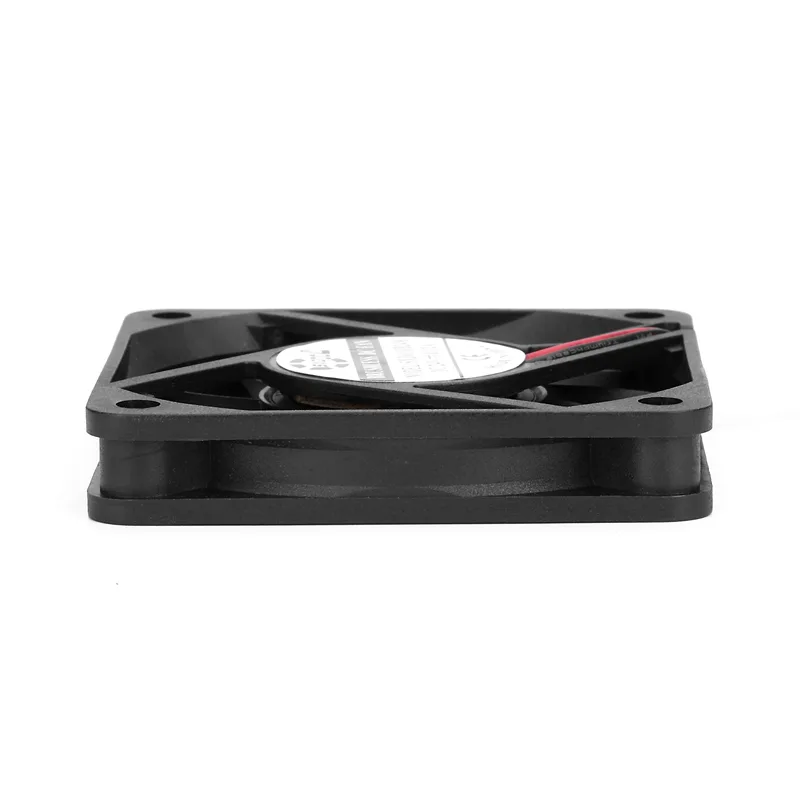

The SXDOOL SXD6010S12M is a 60mm case fan designed for compact builds and targeted component cooling. It runs on 12V DC power through a standard 2-pin connector drawing 0.15A. The counterclockwise rotation suits standard intake or exhaust layouts. Builders fitting tight enclosures or replacing a 6010 unit will find the 10mm depth compatible.

Sustained operation with double ball bearings

High precision double ball bearings support an 80,000 hour working life at 25 degrees Celsius ambient temperature. The bearing design resists wear during continuous running better than sleeve alternatives. Operating temperature spans -10 to +70 degrees Celsius while storage tolerance reaches -40 to +70 degrees Celsius. Power delivery stays within plus or minus 15% of rated power under load.

PBT frame and blades with flame retardant rating

Both frame and wind blade use injection moulded PBT reinforced with 30% glass fiber meeting VO grade flame retardant standards. This material choice adds structural rigidity and reduces vibration transfer to the chassis. Insulation resistance exceeds 500 megohms for electrical safety. The 2-pin wiring offers simple connection without speed reporting or PWM control.

Highlights

  • 60mm slim profile fits tight chassis spaces
  • 12V 2-pin connector powers directly from standard headers
  • Double ball bearing rated for 80,000 hours at 25°C
  • VO-grade flame-retardant frame and blades meet safety standards
  • Operates from -10°C to +70°C for wide thermal range

Specifications

Fan Size60mm
Power Connector2 Pin

Questions about this item

How much heat and power does the 12V 0.15A double ball bearing fan draw when running continuously?

It draws 0.15 A at 12 V, with a power range of plus or minus 15 percent of rated power, and is rated for 80,000 hours at 25 °C ambient.

What connector and voltage must my motherboard or controller provide for the 2-pin 12V fan?

A 2-pin header supplying 12 V DC is required; the fan uses a simple two-wire connection without PWM or speed reporting.

Will the 60x60x10 mm counterclockwise rotation fan fit alongside older 60 mm coolers in my chassis?

The 60 mm square frame and 10 mm thickness match legacy 6010 mounts, and counterclockwise blade rotation matches standard airflow direction for intake or exhaust.
