Square black 50mm frame 10mm thick two-pin 24V fan

SXDOOL

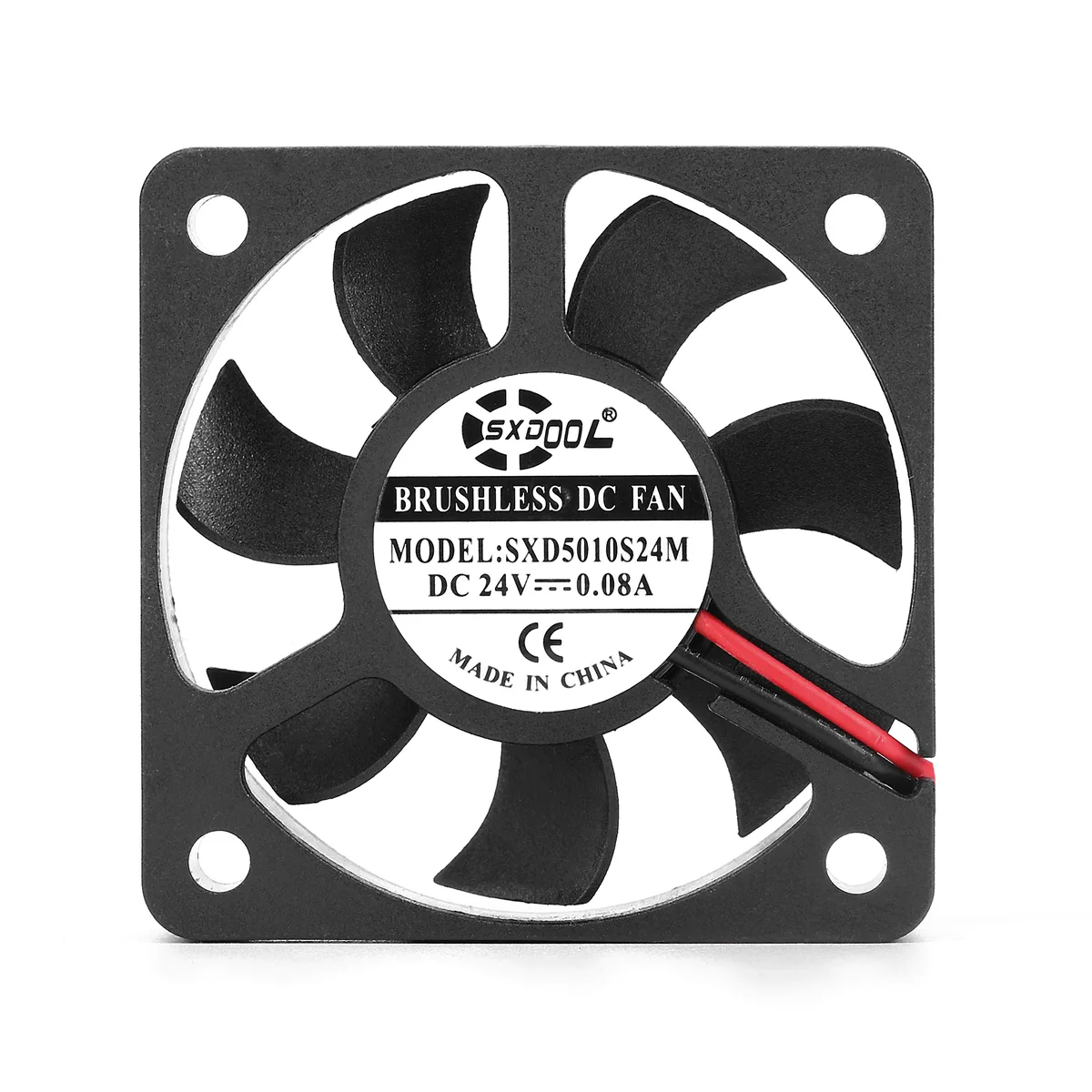

SXDOOL SXD5010S24M 50x50x10mm 24V 0.08A 2-pin case fan

SKU CH-HGB4-FGZ3W MPN SXD5010S24M

A 50 mm case fan with double ball bearings running at 24 V and 0.08 A for quiet, long-life cooling

  • Fan Size50mm
  • Noise Level5 - 10 dBA
  • Power Connector2 Pin
  • ColorBlack
  • LEDNo
  • Ultra-quiet cooling at 5-10 dBA noise level
  • Double ball bearings rated for 80,000 hours at 25°C
  • Flame-retardant PBT frame meets VO grade safety
  • 24V 2-pin power draws only 0.08A current
  • Operates from -10°C to +70°C ambient temperature

Ultra-thin 50 mm form factor

The SXDOOL SXD5010S24M is a 50 by 50 by 10 millimetre case fan designed for tight spaces that need active airflow. It runs on 24 volts DC at 0.08 amps and connects through a standard two-pin header. The counter-clockwise blade rotation suits compact chassis, small-form-factor builds or industrial enclosures where larger fans cannot fit.

Double ball bearing and flame-retardant frame

High-precision double ball bearings provide long-life operation rated at 80,000 hours at 25 degrees ambient temperature. Both frame and blades are moulded from PBT with 30 percent glass fibre and VO-grade flame retardant, giving structural rigidity and fire resistance. The two-pin wiring means speed is fixed at full voltage, so the fan delivers consistent cooling without PWM control or LED lighting.

Replaces thicker or noisier 50 mm fans

This model upgrades older 5010-size fans that use sleeve bearings or louder motors, dropping acoustic output to a 5 to 10 dBA range. The wide operating window from minus 10 to plus 70 degrees Celsius and storage tolerance down to minus 40 degrees Celsius make it suitable for environments where standard fans would fail. It is not for builders who need variable speed control, larger airflow volumes or RGB illumination.

Highlights

  • Ultra-quiet cooling at 5-10 dBA noise level
  • Double ball bearings rated for 80,000 hours at 25°C
  • Flame-retardant PBT frame meets VO grade safety
  • 24V 2-pin power draws only 0.08A current
  • Operates from -10°C to +70°C ambient temperature

Specifications

Fan Size50mm
Noise Level5 - 10 dBA
Power Connector2 Pin
ColorBlack
LEDNo

Questions about this item

What voltage does the 2-pin connector supply to the SXD5010S24M?

The fan runs on 24 V DC and draws 0.08 A through its 2-pin connector.

What are the mounting hole dimensions for the 50 mm frame?

The frame measures 50 x 50 x 10 mm with standard 50 mm fan mounting holes.

How do I orient the fan when installing it in a case?

Air flows counterclockwise when viewed from the blade side; point the label face toward the desired exhaust direction.
