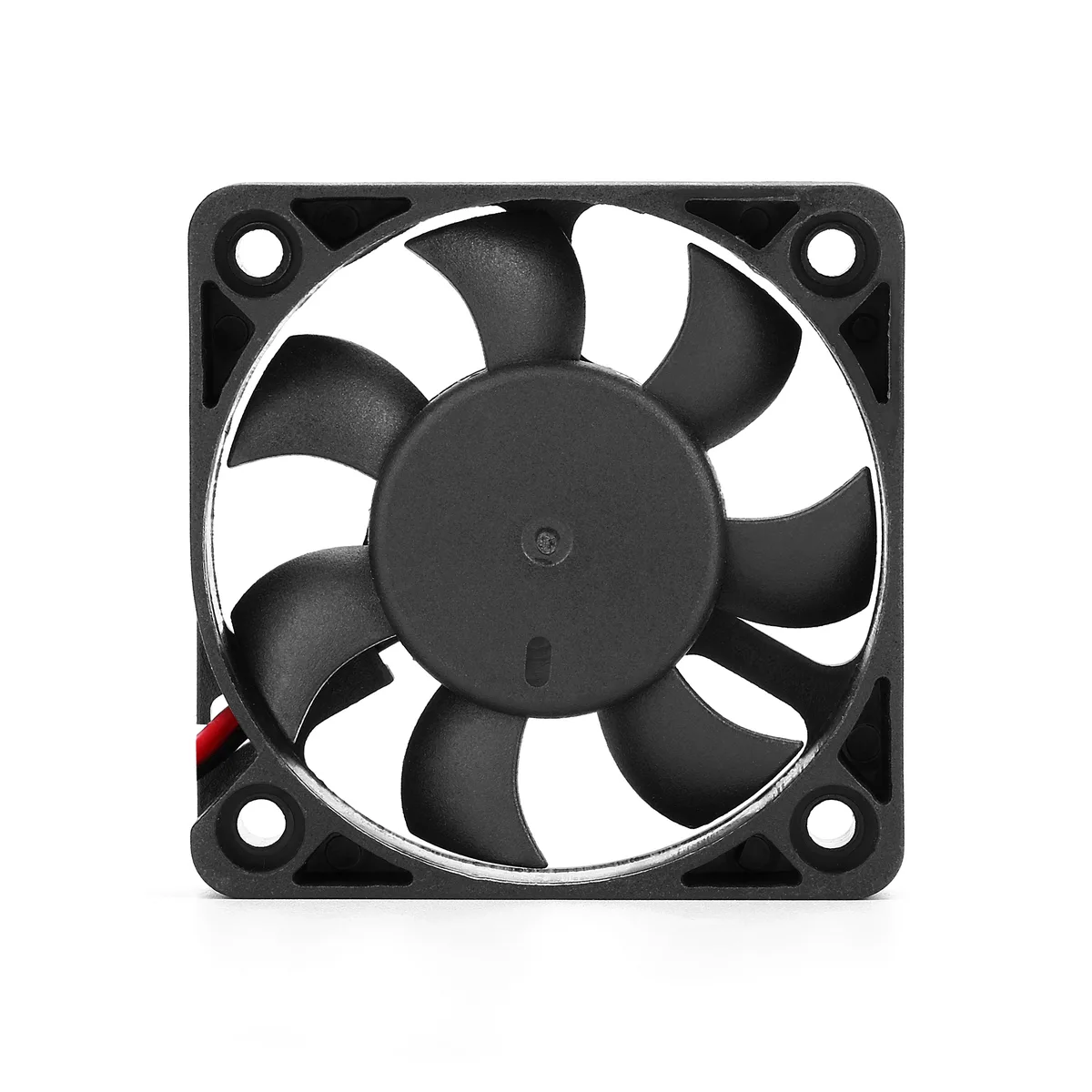

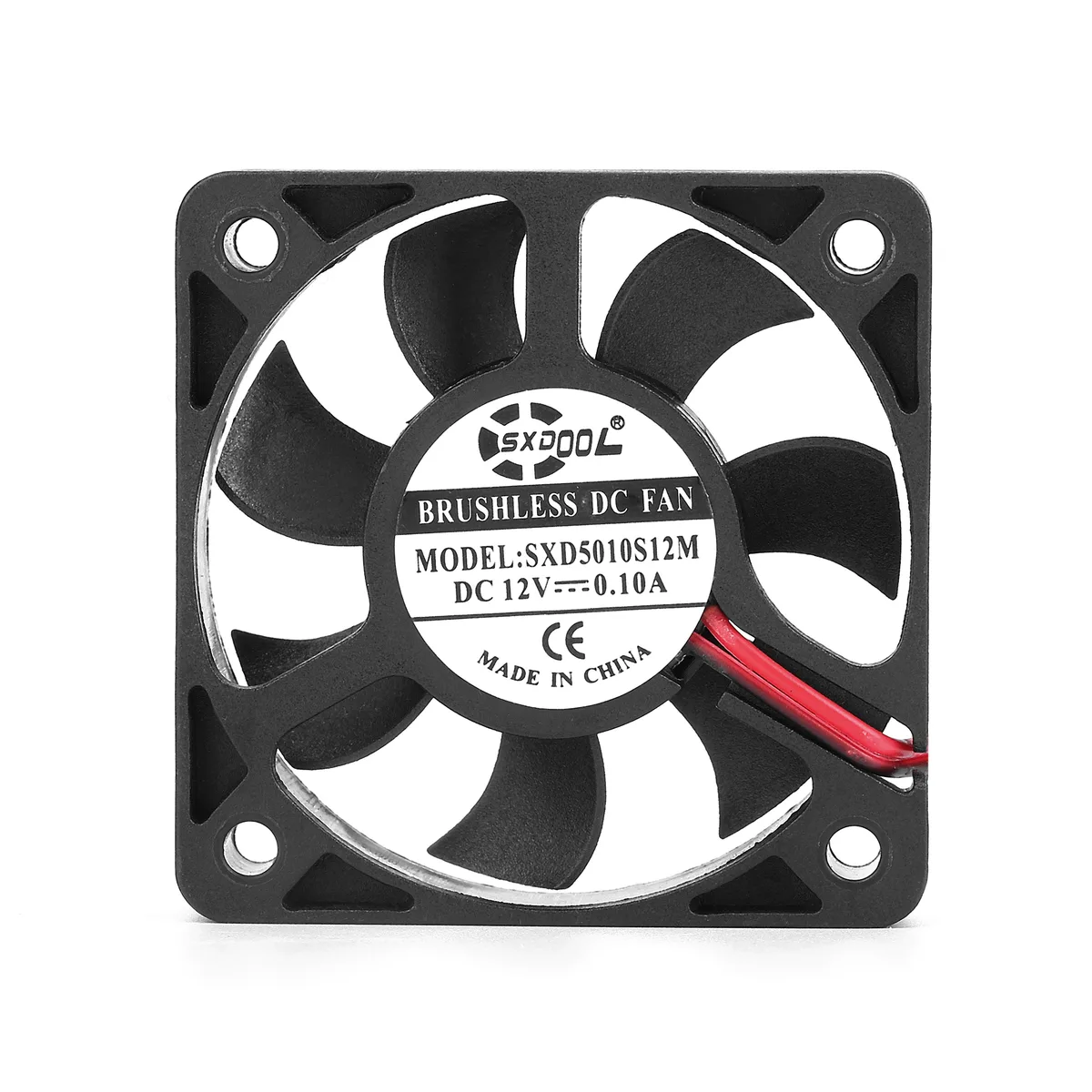

Small square black 50mm frame fan with two-wire connector

SXDOOL

SXDOOL SXD5010S12M 50mm case fan 12V 2-pin

SKU CH-YWA6-CN0CW

Ultra-thin 50 mm case fan with double ball bearing runs at 4000-4499 RPM, delivering 10-15 CFM at 15-20 dBA on a 12 V 2-pin connector

  • Fan Size50mm
  • RPM4000-4499 RPM
  • Air Flow10-15 CFM
  • Noise Level15 - 20 dBA
  • Power Connector2 Pin
  • ColorBlack
  • Ultra-quiet operation at 15-20 dBA for silent builds
  • Double ball bearing rated 80,000 hours at 25°C
  • 12V 2-pin connector draws only 0.08A
  • PBT frame with VO flame retardant handles -10°C to +70°C
  • Compact 50x50x10mm fits tight spaces delivering 10-15 CFM

Compact 50 mm cooling for tight builds

The SXDOOL SXD5010S12M is a 50 mm square frame fan designed for small-form-factor cases, rack units or replacement cooling in industrial equipment. It runs on 12 V DC through a two-pin connector and draws 0.08 A, making it suitable for direct header power on most motherboards or controller boards. The counter-clockwise rotation pushes air through restrictive grilles where larger fans cannot fit.

Low noise and modest airflow at 4000–4499 RPM

Rated airflow sits between 10 and 15 CFM while the manufacturer quotes an acoustic range of 5 to 10 dBA; the broader spec sheet lists 15 to 20 dBA under load. Power consumption stays near 1 W across the plus-or-minus 15 % voltage window. The double ball bearing sustains 80 000 hours at 25 °C ambient, and insulation resistance exceeds 500 megohms for electrical safety.

Glass-fibre reinforced PBT frame and blades

Both the housing and the impeller are moulded from PBT with 30 % glass fibre and VO-grade flame retardant, giving rigidity without metal weight. The 50 mm by 10 mm profile fits standard 5010 mounting holes, and the two-pin lead allows simple polarity-controlled operation. Operating limits span -10 °C to +70 °C, with storage down to -40 °C, so the fan tolerates harsh enclosure environments.

Highlights

  • Ultra-quiet operation at 15-20 dBA for silent builds
  • Double ball bearing rated 80,000 hours at 25°C
  • 12V 2-pin connector draws only 0.08A
  • PBT frame with VO flame retardant handles -10°C to +70°C
  • Compact 50x50x10mm fits tight spaces delivering 10-15 CFM

Specifications

Fan Size50mm
RPM4000-4499 RPM
Air Flow10-15 CFM
Noise Level15 - 20 dBA
Power Connector2 Pin
ColorBlack
LEDNon-LED

Questions about this item

How do I connect the 2-pin connector to a 12V header and which wire is positive?

Plug the 2-pin connector onto any 12V fan header; the red wire is positive and the black wire is ground, so align them with the header markings.

When should I plan to replace the double ball bearing fan?

The bearing is rated for 80,000 hours at 25°C ambient; expect replacement after roughly nine years of continuous operation.

At what temperature does the fan reach its operating limit during sustained load?

The fan is rated for continuous use up to 70°C ambient; beyond that the motor insulation and bearing life degrade rapidly.
