Square black aluminium frame fan 80mm dual ball bearing AC 220V 240V

SXDOOL

SXDOOL sj80025ha2 80mm AC 220V 240V case fan

SKU CH-F7YS-D5JTV MPN sj80025ha2

An 80 mm AC case fan running on 220 V or 240 V, with dual ball bearings rated for 60000 hours and airflow of 32 to 40 CFM

  • TypeCase Fan
  • Bearing TypeBall
  • 80 mm AC fan fits standard server chassis
  • Dual ball bearing rated for 60000 hours of operation
  • Runs on 220 V or 240 V AC mains power
  • Delivers up to 40 CFM airflow at 3100 RPM
  • Operates from -20 °C to 70 °C ambient temperature

80 mm AC Case Fan for Server Cabinets

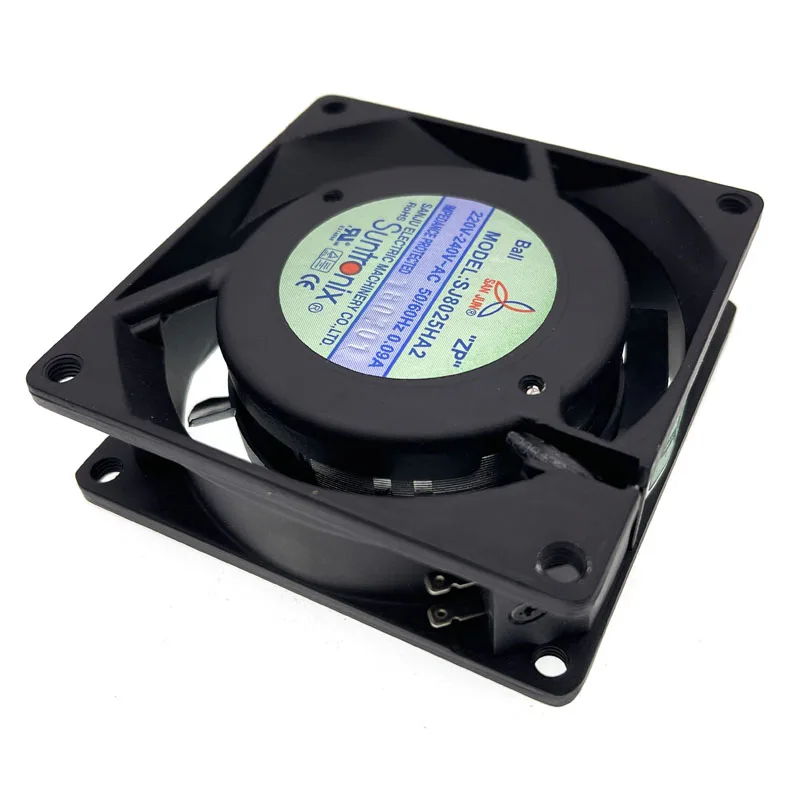

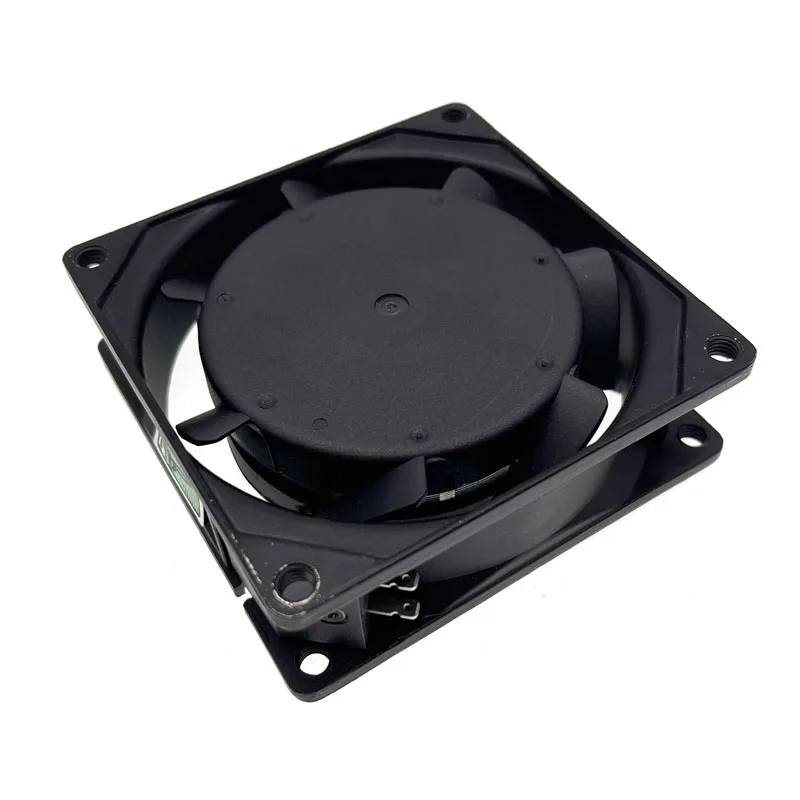

The SXDOOL sj80025ha2 is an 80 mm square fan that runs directly from AC mains at 220 V or 240 V and 50/60 Hz. It is built for server cases and equipment cabinets where a DC power supply is not available or convenient. The aluminium-alloy frame resists corrosion and moisture in demanding environments.

Dual Ball Bearing Reliability at Continuous Duty

Dual ball bearings give the fan a rated service life of 60000 hours, double the oil-bearing alternative, and maintain consistent rotation under sustained load. At 2600 rpm on 50 Hz or 3100 rpm on 60 Hz the fan delivers 32 CFM or 40 CFM respectively while noise stays at 31 dB-A or 35 dB-A. Power draw is 8 W at 50 Hz and 12 W at 60 Hz.

Mains Voltage Compatibility Decides Fit

The single specification that determines whether this part works in a build is the input voltage: it requires 220 V to 240 V AC and will not operate on 110 V or any DC rail. Buyers needing a 110 V AC version or a 12 V DC fan must select a different model.

Highlights

  • 80 mm AC fan fits standard server chassis
  • Dual ball bearing rated for 60000 hours of operation
  • Runs on 220 V or 240 V AC mains power
  • Delivers up to 40 CFM airflow at 3100 RPM
  • Operates from -20 °C to 70 °C ambient temperature

Specifications

TypeCase Fan
Bearing TypeBall

Questions about this item

How loud is the 80 mm fan when it runs continuously at 220 V?

The fan produces 31 dB-A at 50 Hz and 35 dB-A at 60 Hz, so noise stays in the low-30s range during all-day operation.

What power connection does the AC 220 V model require that a standard PC header cannot supply?

It needs a mains 220–240 V AC supply at 50/60 Hz; there is no PWM or 3-pin/4-pin motherboard connector on this unit.

Will the 80 × 80 × 25 mm frame with dual ball bearings fit the mounting holes on my older server chassis?

Yes, the 80 mm square aluminium frame matches the standard 80 mm mounting pattern used on legacy server cases and cabinets.
