SXDOOL PVA080G12Q 80mm 4-pin PWM case fan

80 mm 4-pin PWM case fan

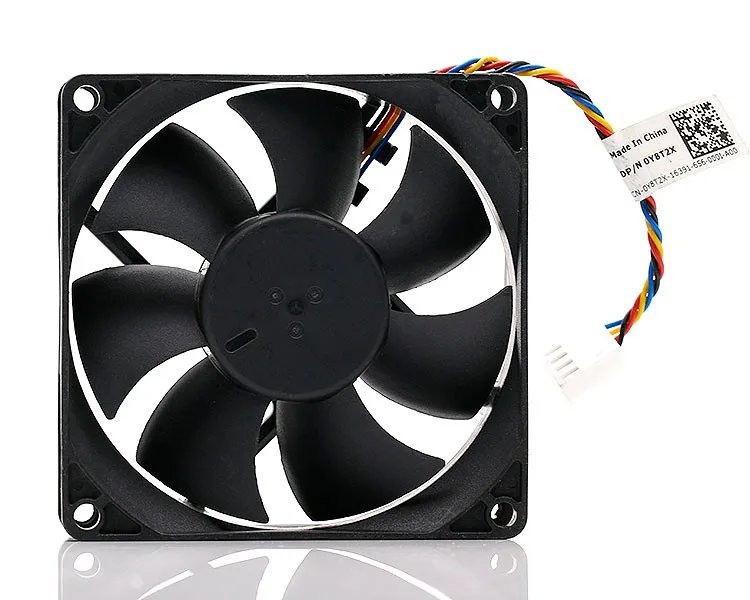

The SXDOOL PVA080G12Q is an 80 mm square frame fan with a 25 mm thickness, designed for 12 V DC operation via a standard 4-pin PWM header. It uses a hydraulic sealed bearing and PBT frames reinforced with 30 % glass fibre and V0 rated flame retardant material. The 60 cm lead reaches most motherboard headers in compact chassis.

Suits builds that need an 80 mm replacement

This fan fits server enclosures, small-form-factor cases, CPU heatsinks, power-supply retrofits or water-cooling radiators that mount an 80 mm frame. PWM control lets the motherboard vary speed between 900 and 4 600 rpm for automatic thermal management. Buyers who require a different mounting pattern, a larger frame size or addressable lighting should consider other options.

900–4 600 rpm speed range

The single specification that determines fit is the PWM speed range of 900 to 4 600 rpm, which defines the airflow window of 19 to 62.5 CFM and the acoustic range of 16 to 47 dBA. If the target component needs a fixed-speed 3-pin fan, a lower minimum speed or a higher maximum static pressure, this model will not match that requirement.
